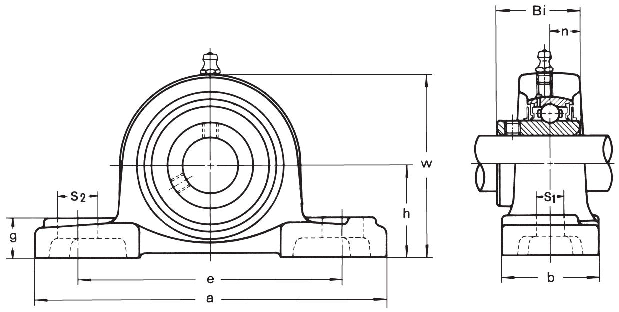

Measurement

Bore diameter:	45
a (mm):	116
e (mm):	102
g (mm):	16
w (mm):	143
Bi (mm):	49,2
n (mm):	19
Load ratings Insert dyn. C (kN):	28,1
Load ratings Insert stat. C0 (kN):	16,4
Weight (kg):	2,21
Product:	Take-up unit
Product series:	MUCP 200
Material:	Stainless steel
Fixing:	Set-screw locking
Trademark:	ASAHI
o (mm):	2
p (mm):	74
q (mm):	49
s (mm):	29
b(mm):	72
k (mm):	16
j (mm):	49
l (mm):	34
h (h):	87
