Инструмент ASKUBAL KA-STK2RS
Наличие и срок поставки подтверждаем по артикулу после запроса.
Позвонить и уточнить у менеджераОписание
Inner ring: Antifriction bearing steel, hardened, ground, polished.
Bearing shells: Both shells made of heavy-duty bronze have a male thread and are screwed into the housing together with the inner ring, secured with the rubber bellows.
Rubber bellows: Synthetic rubber with vulcanized brass slip ring and steel locknut.
Housing: tempering steel (standardized), galvanized and chromated.
Bushings: Tempering steel, hardened, bore and outside diameter ground, pressed into the inner ring. They are only used as intake of the brass abrasive rings of the rubber bellows. Due to their low thickness they are not dedicated to transmit radial and axial forces into the spherical bearing.
Lubrication nipple: DIN 3405, Shape D.
Tolerances: To DIN ISO 12440-4, schedule K, except: d = H8, B = +- 0,3
Note: With these rod ends, it is important to ensure that the tilt angle specified in the table is not exceeded, either while mounting or during operation, otherwise the rubber bellows may be damaged.
Характеристики

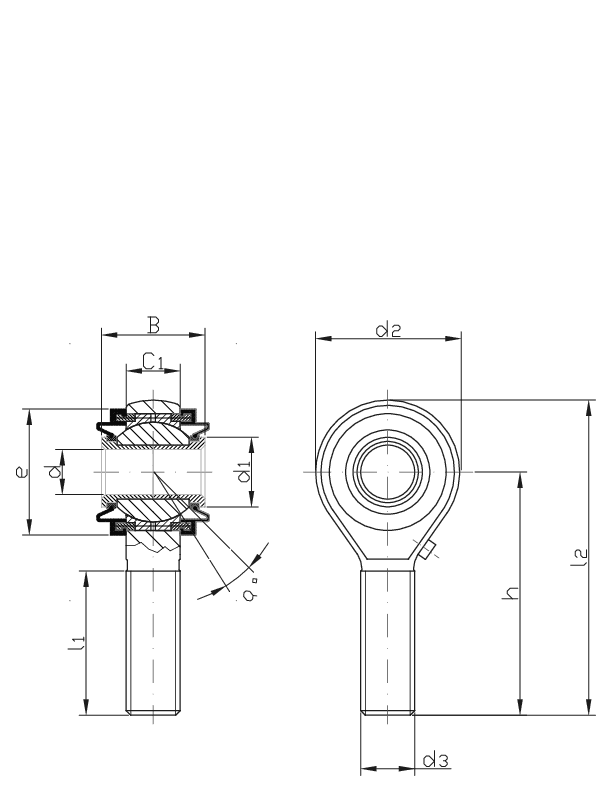

| Измерения | |
| d (mm): | 18 |
| d3 (mm): | M20x1,5 |
| B (mm): | 32 |
| C1 (mm): | 18 |
| d1 (mm): | 24,5 |
| d2 max. (mm): | 51 |
| h (mm): | 78 |
| l1 min. (mm): | 45 |
| l2 ~ (mm): | 103,5 |
| Load rating static C0 (kN): | 42 |
| Load rating dyn. C (kN): | 31,5 |
| Tilt angle alpha (°): | 10 |
| Weight (kg): | 0,46 |
| Product series: | KA-STK2RS: Rod ends, male thread, maintenance required, sealed |
| Dimension series: | Special version |
| Bearing: | Plain bearing |
| Sealing: | 2RS-Sealing |
| Maintenance/Friction pairing: | Maintenance required steel/bronze |
| Metric thread: | Female right hand thread |
| Материал | Standard |
