Шариковое передаточное устройство Bosch Rexroth KUL-15-MFG [R053000520]

Name: Шариковое передаточное устройство Bosch Rexroth KUL-15-MFG [R053000520]
Brand: REXROTH
SKU: R053000520
Availability: PreOrder

Артикул:R053000520

Цена по запросу

Под заказ

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Ball transfer units with felt seal \u2013 Size 15

Product Description

Ball transfer unit with plastic housing (light-weight construction)
Size = 15
With felt seal, lubricated

With plastic housingFor special applications (e.g. for lightweight ball transfer tables)Mounting with quarter-turn fastener

Technical Specs

Характеристики изделия
Nominal size [mm]	15
Dynamic load capacity C [N]	500
Maximum permissible linear speed vmax [m/s]	2
Note: maximum permissible speed vmax	In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
Outer diameter D [mm]	42
Operating temperature (min. … max.)	-30 °C ... +100 °C
Note: permissible operating temperature (min. ... max.)	At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil *
Масса (кг)	0.05
Maximum operating temperature [°C]	+100
Minimum operating temperature [°C]	-30

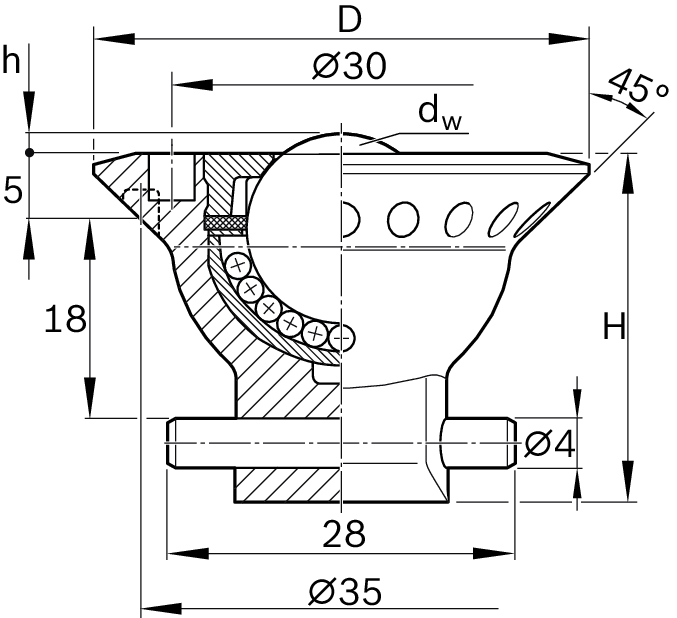

Dimension D [mm]	42
Dimension dW [mm]	15
Dimension h [mm]	2
Dimension H [mm]	32
