Шариковое передаточное устройство Bosch Rexroth KUM-B60-MFG-AB [R053310510]

Name: Шариковое передаточное устройство Bosch Rexroth KUM-B60-MFG-AB [R053310510]
Brand: REXROTH
SKU: R053310510
Availability: PreOrder

Артикул:R053310510

Категория:Системы линейных перемещений REXROTH

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Ball transfer units with felt seal \u2013 Size 60

Product Description

Ball transfer unit with solid steel housing
Bright metal, balls made from anti-friction bearing steel
Size = 60
With felt seal, lubricated
With wiper

With solid steel housingFor high loads and coarse dirtCover and housing galvanizedBalls made from antifriction bearing steel 1.3505With felt seal and wiper

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	60
Dynamic load capacity C [N]	13000
Maximum permissible linear speed vmax [m/s]	2
Note: maximum permissible speed vmax	In case of prolonged periods of use at speeds above 1 m/s, an increase in temperature and reduction in service life is to be expected depending on the load.
Outer diameter D [mm]	100
Operating temperature (min. … max.)	-30 °C ... +100 °C
Note: permissible operating temperature (min. ... max.)	At temperatures above 100 °C, only bright metal ball transfer units without a felt seal should be used. Make allowance for reduction in load capacity. Use high-temperature lubricant! Follow the manufacturer’s instructions! The existing lubricant oil *
Масса (кг)	3.67
Static load capacity C0 [N]	30000
Maximum operating temperature [°C]	+100
Minimum operating temperature [°C]	-30

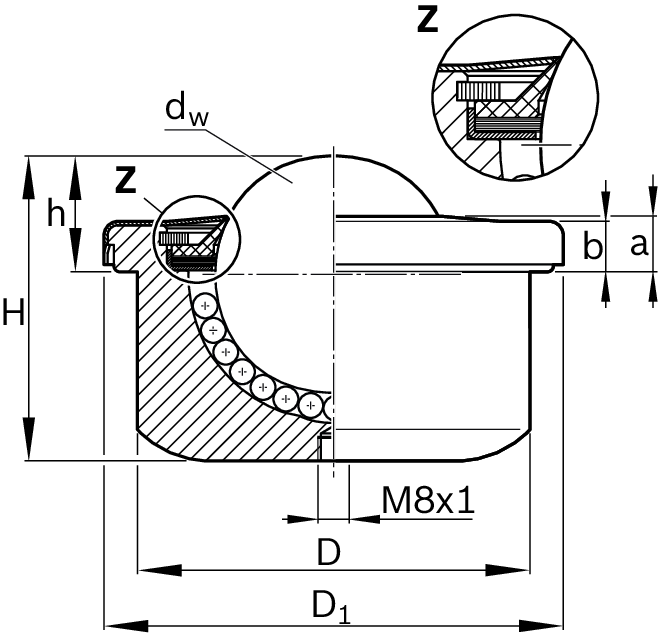

Dimension a [mm]	13
Dimension b [mm]	14.5
Tolerance c	+0.3
Dimension D [mm]	100
Tolerance D [mm]	±0.11
Dimension D1 [mm]	117
Dimension dW [mm]	60.325
Dimension h [mm]	29.5
Dimension H [mm]	77.5
Tolerance h	±0.2
