Главная/Гидравлика/HYDRAULIC GEAR PUMP AZPF-12-005RNT20MB [0510315005]

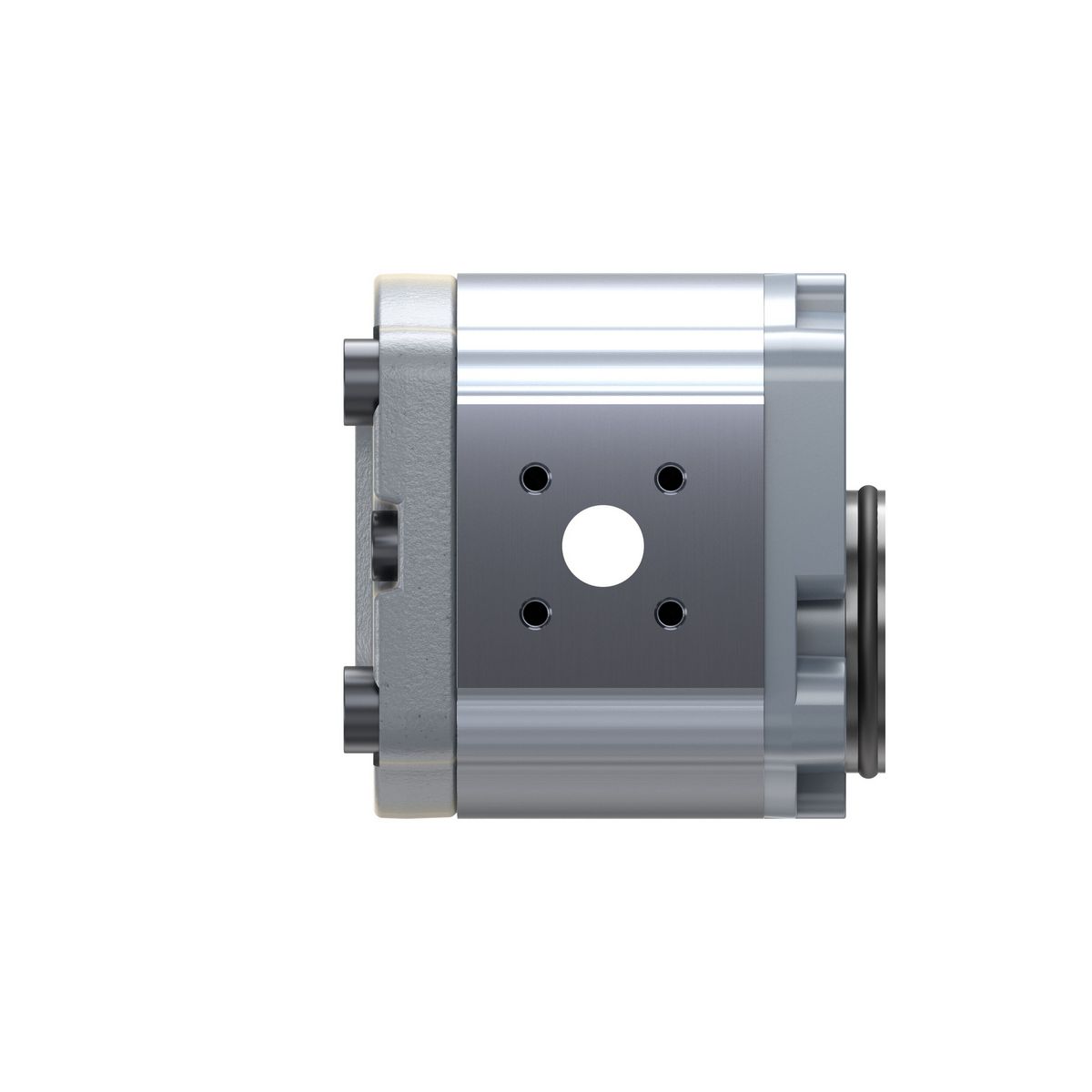

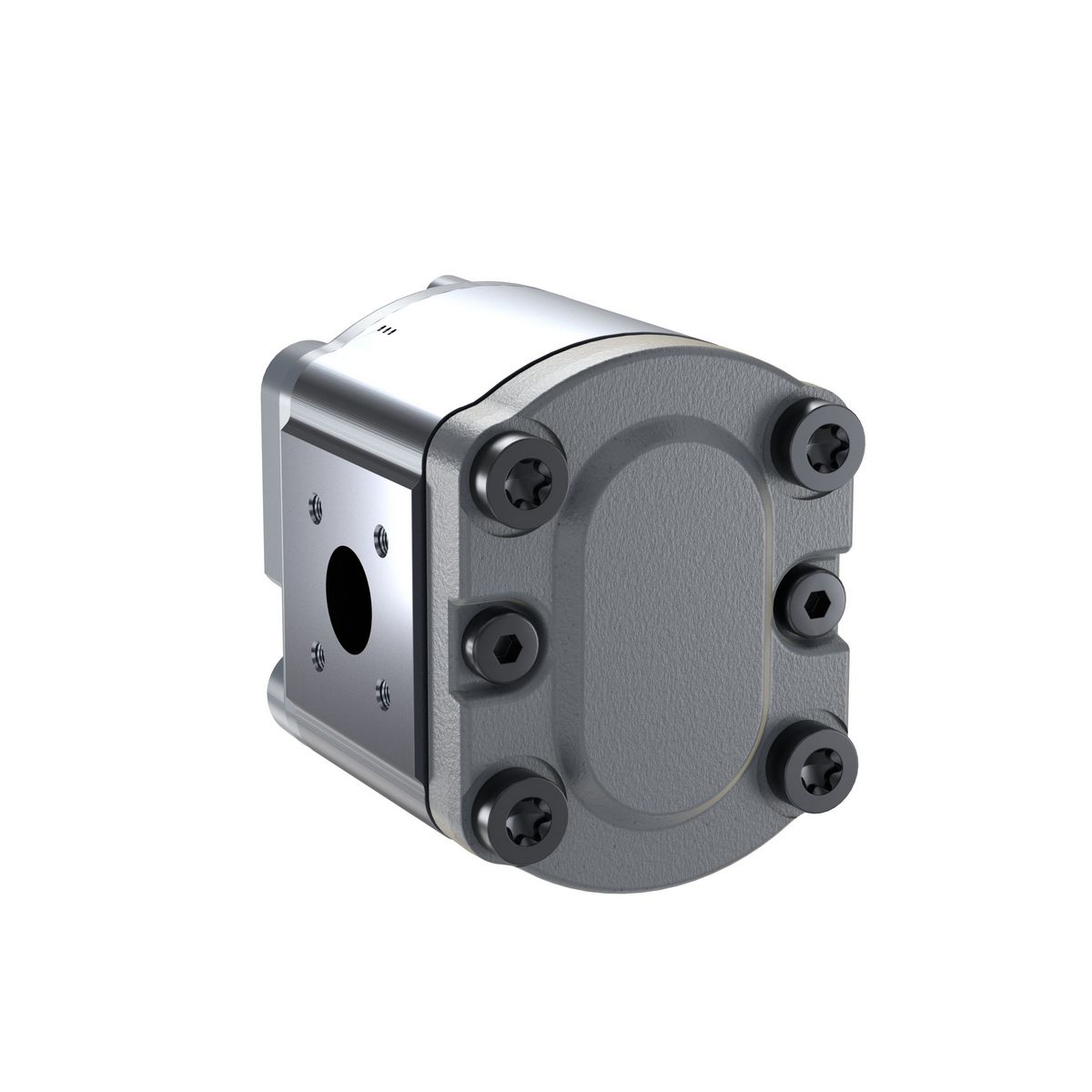

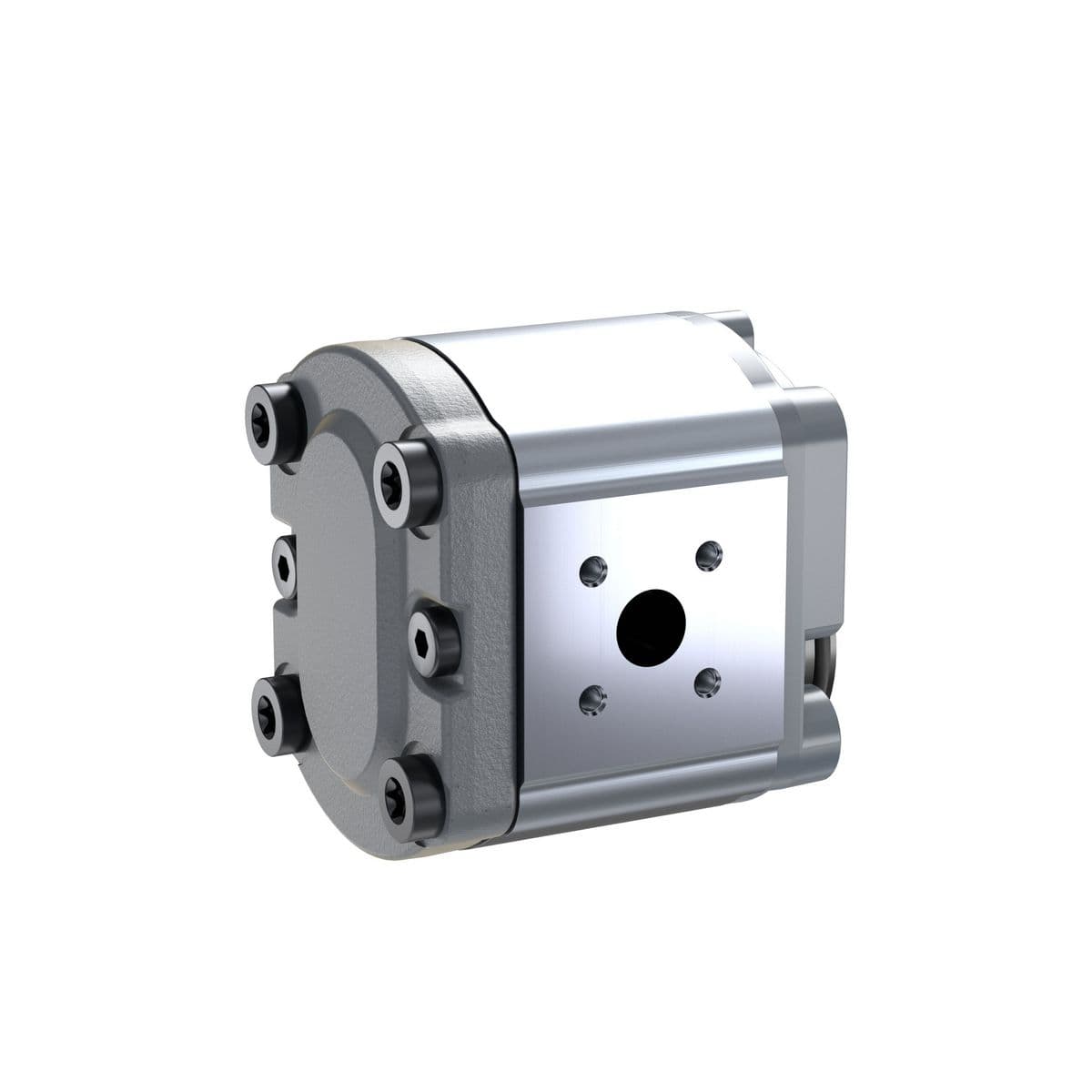

HYDRAULIC GEAR PUMP AZPF-12-005RNT20MB [0510315005]

Name: HYDRAULIC GEAR PUMP AZPF-12-005RNT20MB [0510315005]
Brand: REXROTH
SKU: 0510315005
Availability: PreOrder

Артикул:0510315005

Категория:Гидравлика

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

"5.5 cm³/rev, clockwise rotation, Conical 1:5, 2-hole mounting Ø 52 mm with O-ring, Square flange DIN 3901/3902"

Product Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Consistent high quality based on large-volume productionDrive shafts according to ISO or SAE and customer specific solutionsLong service lifeSlide bearings for high loadsPort connections: flanged or threaded

Technical Specs

Характеристики

Характеристики изделия
Макс. расход (л/мин)	220.0
Nominal size [cm³/rev]	55
Max. intermittent pressure [bar]	280
Maximum rotational speed [rpm]	4000
Drive shaft	Tang drive
Direction of rotation	Clockwise rotation
Front cover	4-bolt dia. 52 mm, with O-ring
Материал корпуса	Aluminum
Noise level	Standard noise level
Изделие	External gear unit
Function	Pump
Model	High perf (F) (4..28 cm³/rev)
Серия	Bearing diameter 18 mm
Version	Zn plated or Al, aligned cover
Port connection	Square flange (German version)
Sealing material	NBR
Rear cover	Standard (cast iron)
Масса (кг)	2.5
