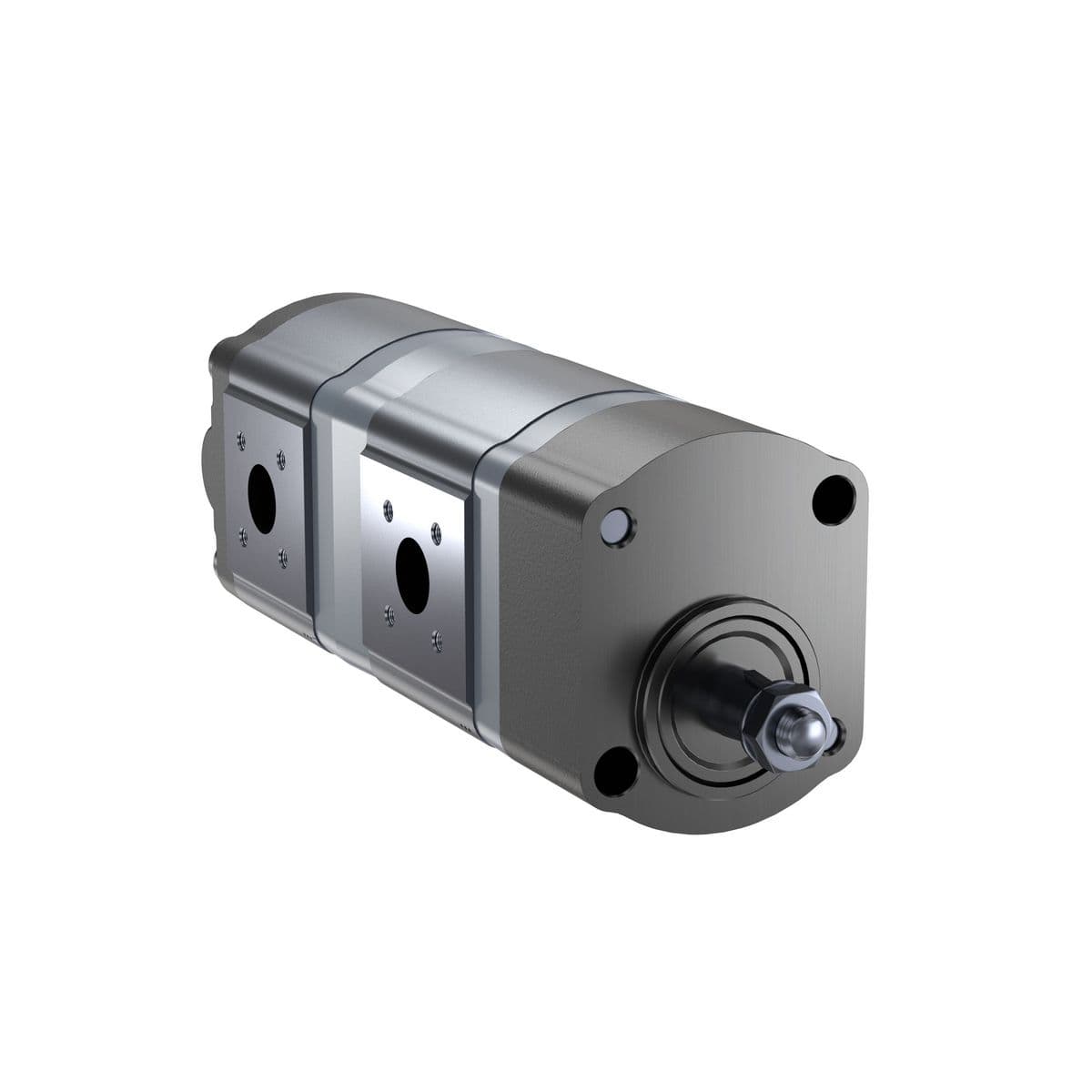

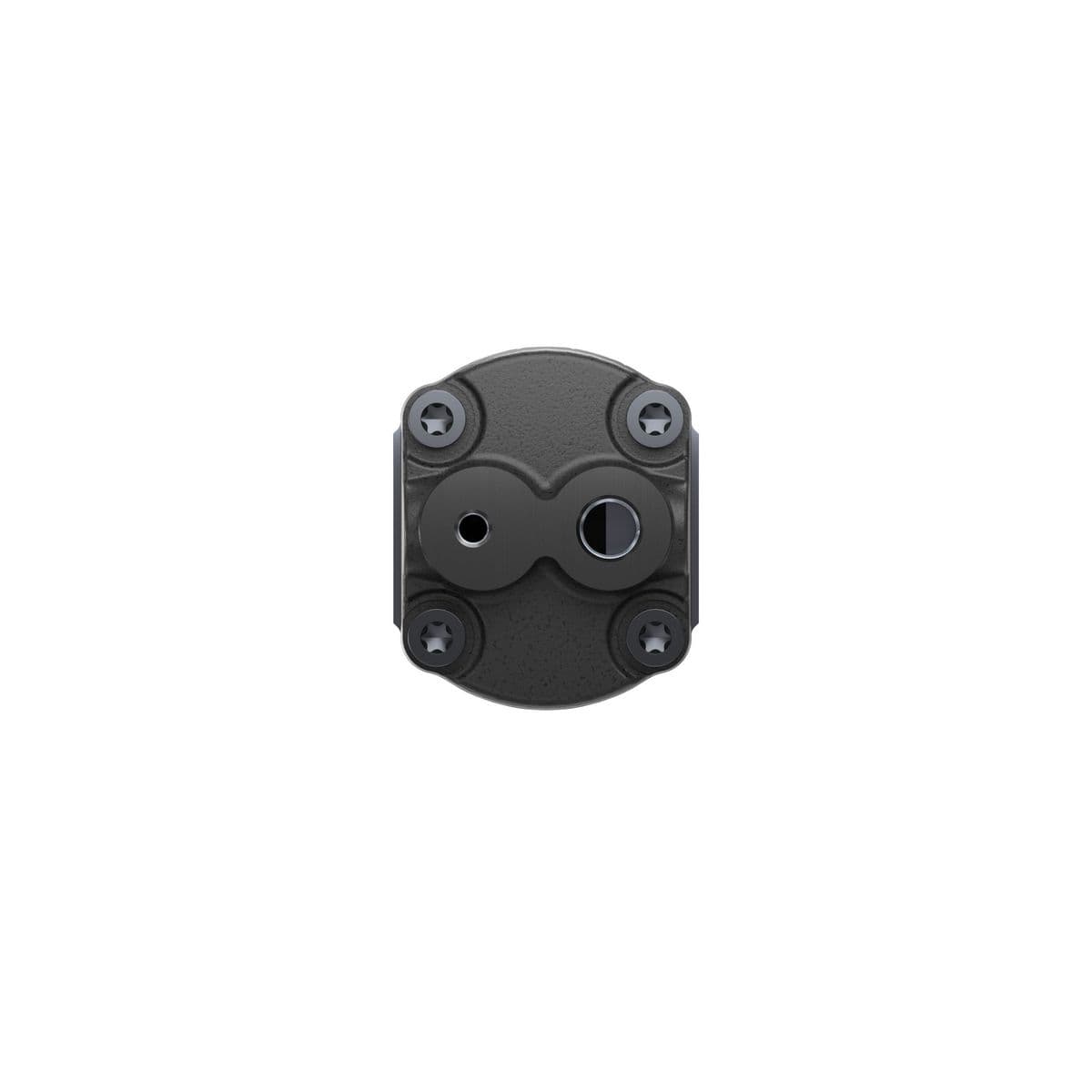

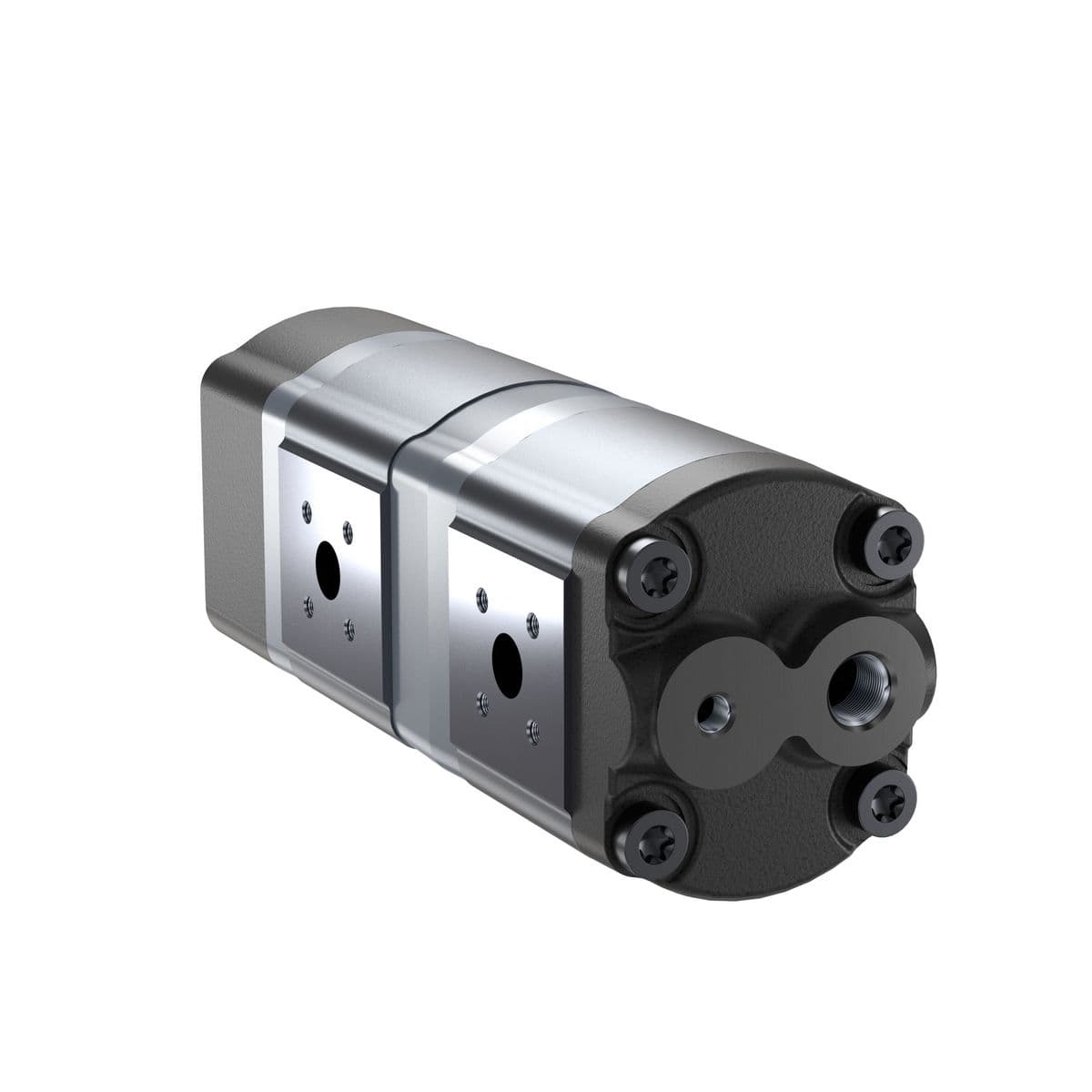

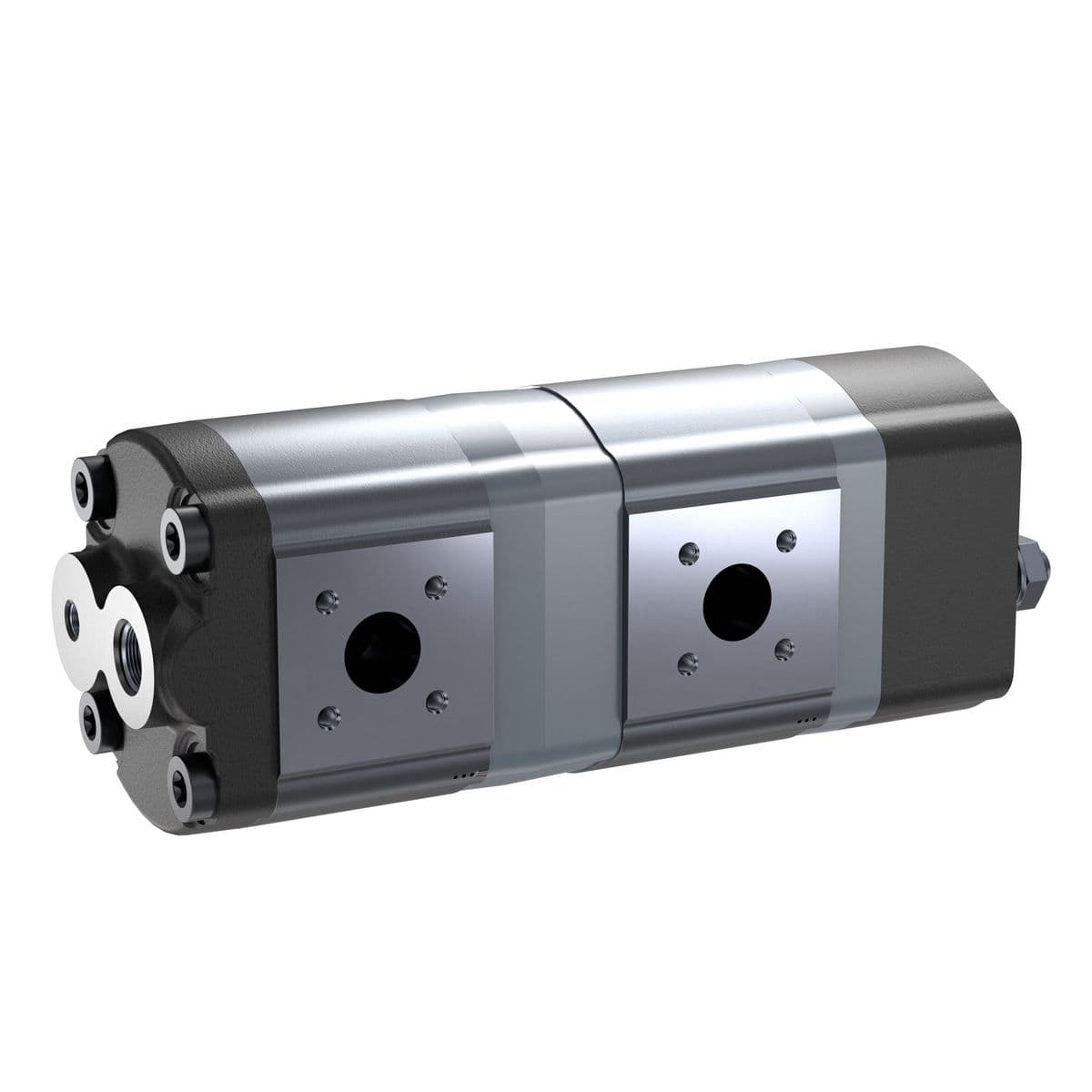

Гидрокомпонент REXROTH 0510555306

Name: Гидрокомпонент REXROTH 0510555306
Brand: REXROTH
SKU: 0510555306

Артикул:0510555306

Категория:Гидравлика

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

14 cm³/rev + 11 cm³/rev , Non-standard version, anti clockwise rotation, Conical 1:5, Square flange DIN 3901/3902, Square flange DIN 3901/3902, Non-standard version

Product Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Consistent high quality based on large-volume productionDrive shafts according to ISO or SAE and customer specific solutionsLong service lifeSlide bearings for high loadsPort connections: flanged or threaded

Technical Specs

Характеристики

Характеристики изделия
Макс. расход (л/мин)	57.4
Max. flow PU2 [l/min]	45.1
Nominal size [cm³/rev]	14
Size pump unit 2 [cm³/rev]	11
Max. intermittent pressure pump unit 1 [bar]	175
Max. intermittent pressure pump unit 2 [bar]	120
Maximum rotational speed [rpm]	4100
Drive shaft	Conical 1:5 Dia. 20 mm
Direction of rotation	Counter-clockwise rotation
Front cover	Non-standard version
Материал корпуса	Aluminum
Noise level	Standard noise level
Customer part number	0510555306
Изделие	External gear unit
Function	Pump
Model	4 ... 28 cm³/rev
Model pump unit 2	4 .... 28 cm³/rev
Серия	Shaft Ø 18 mm
Version	Al
Port connection	Square flange
Port connection pump unit 2	Square flange
Sealing material	NBR
Rear cover	Non-standard version
Non-standard version	Deviations from catalogue standards, see drawing
Масса (кг)	5.6
