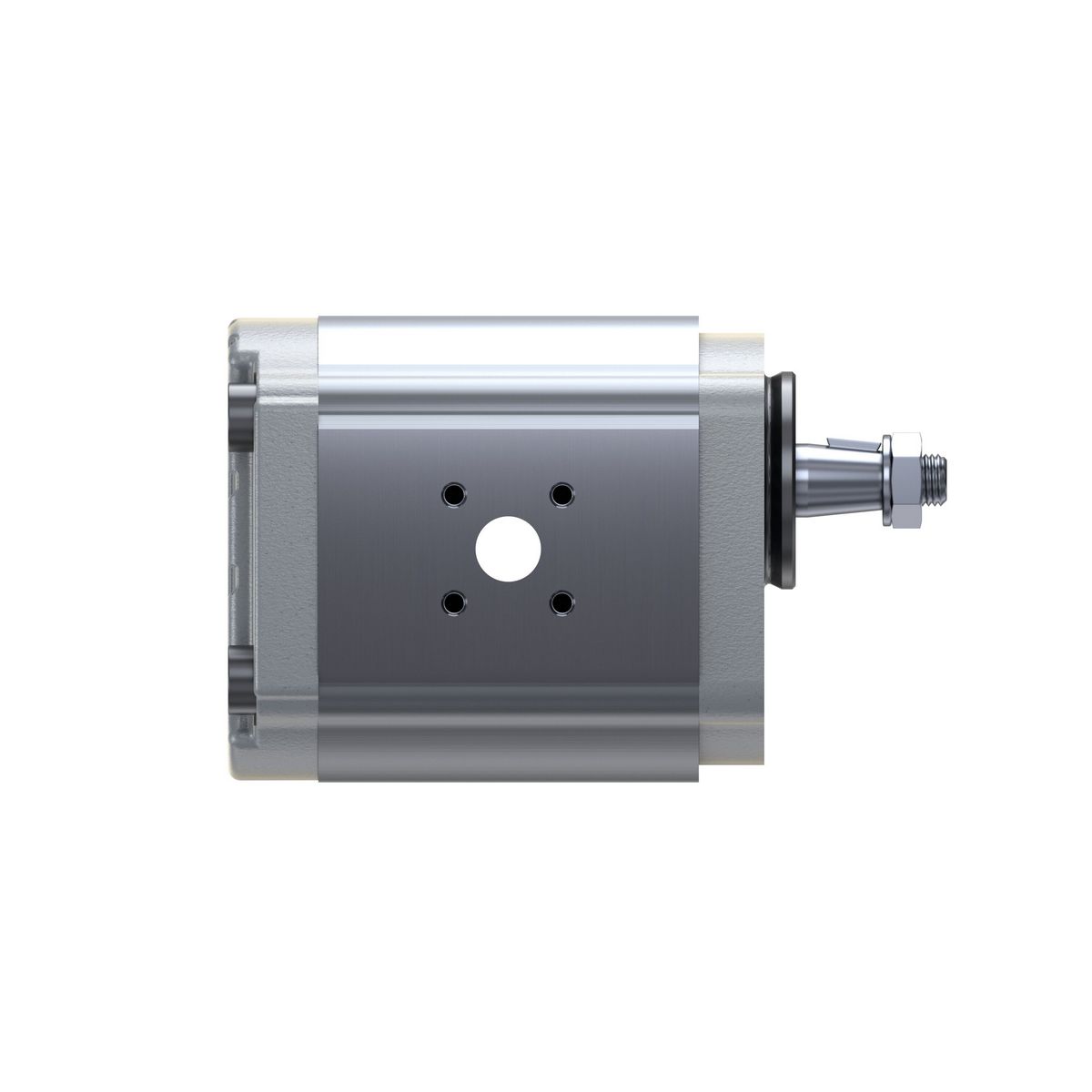

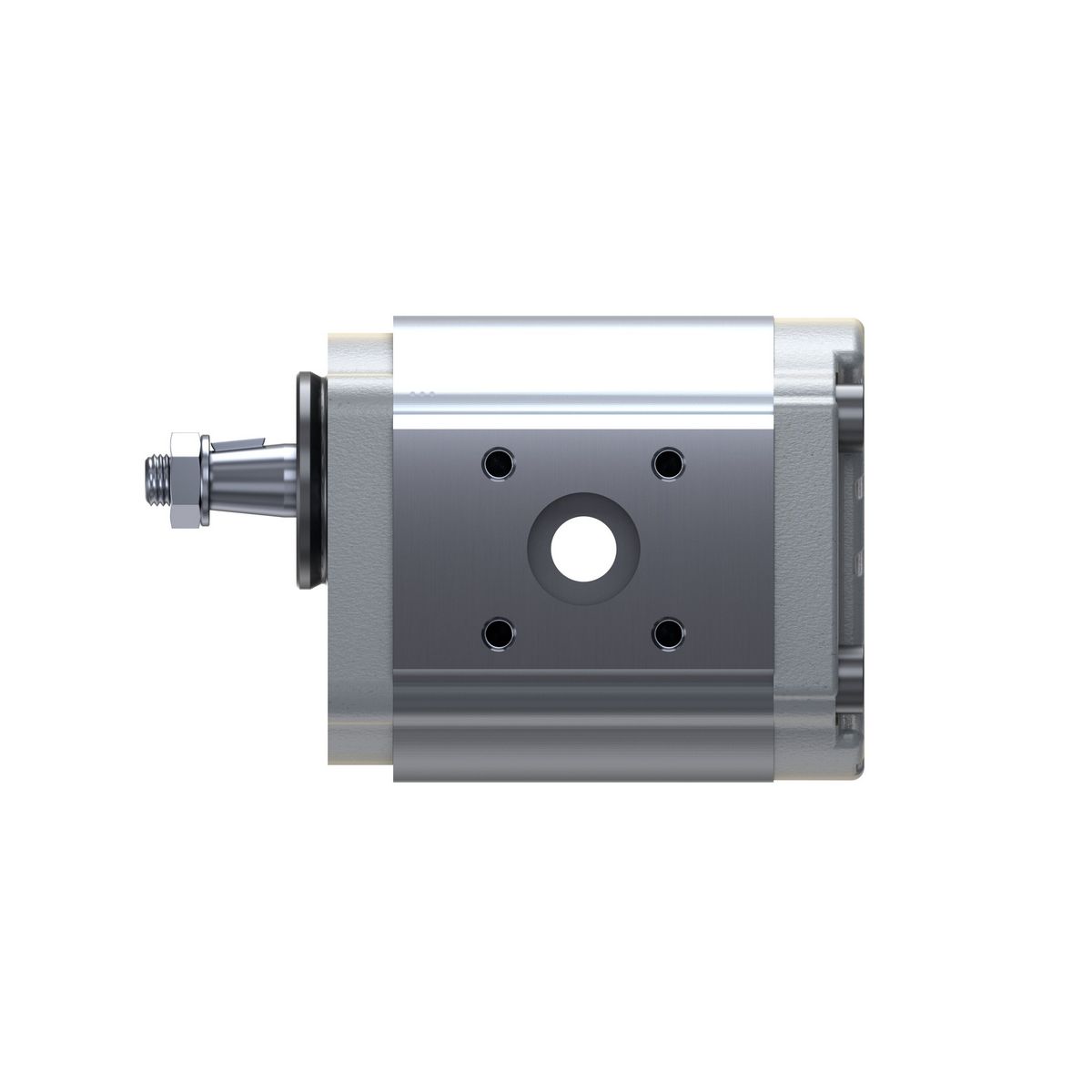

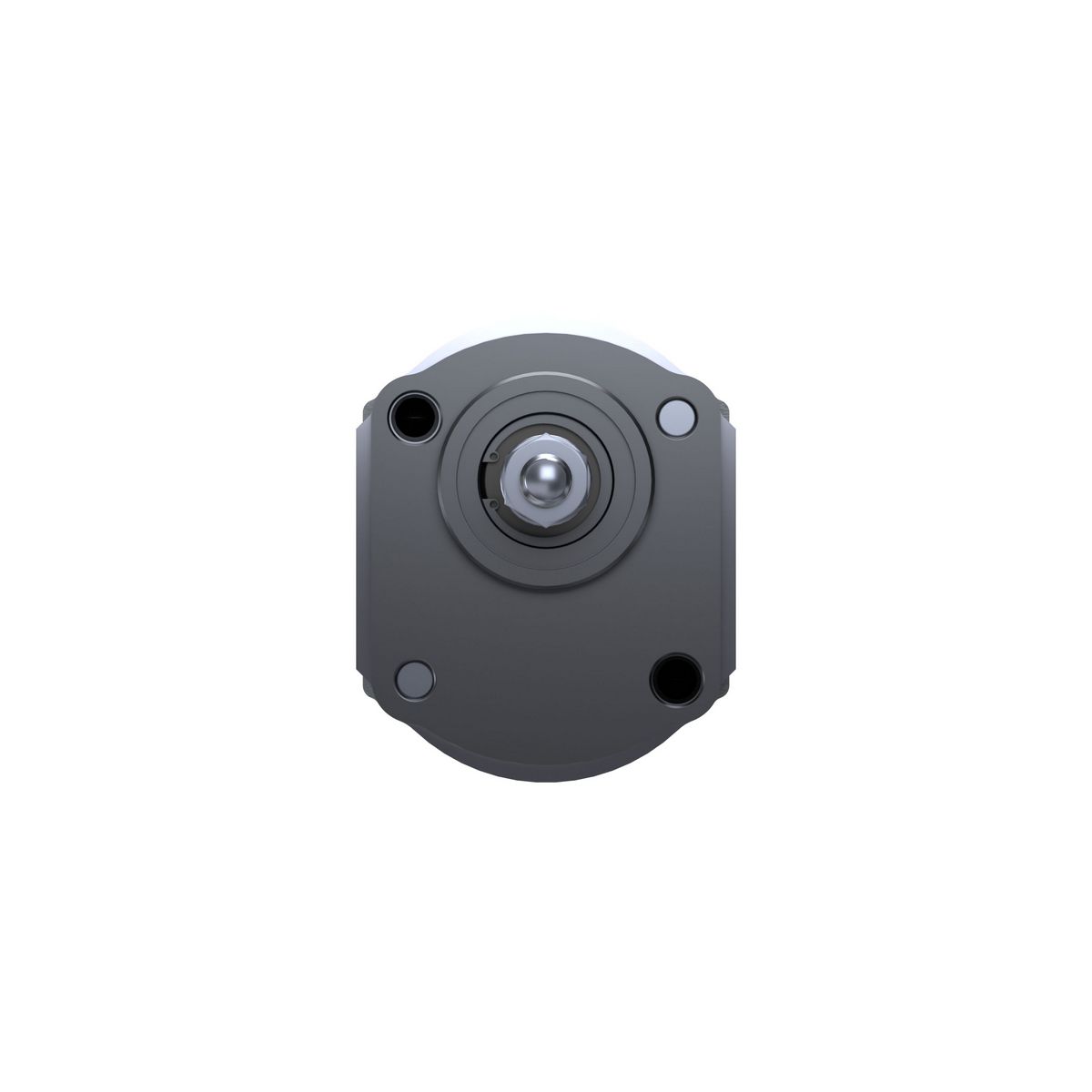

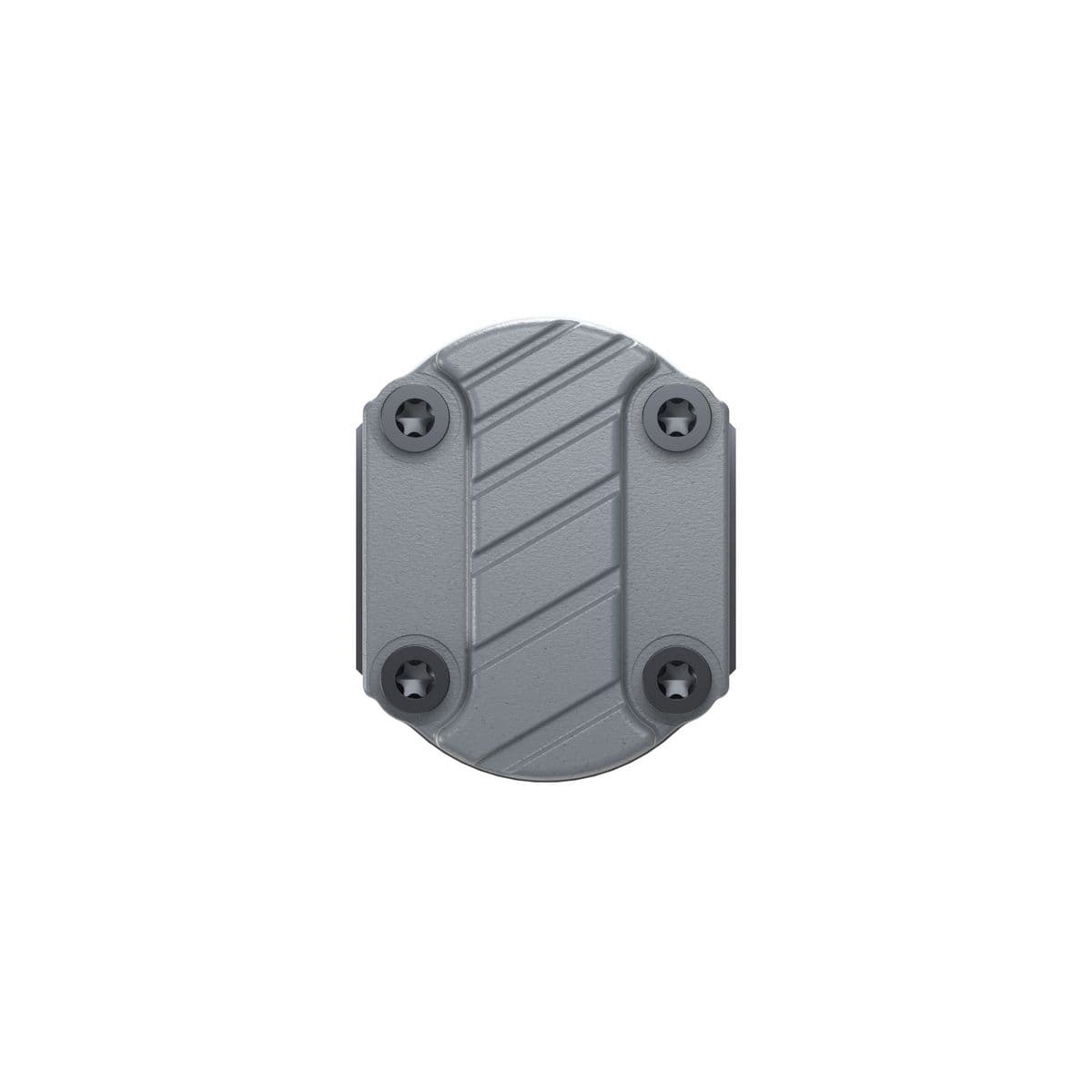

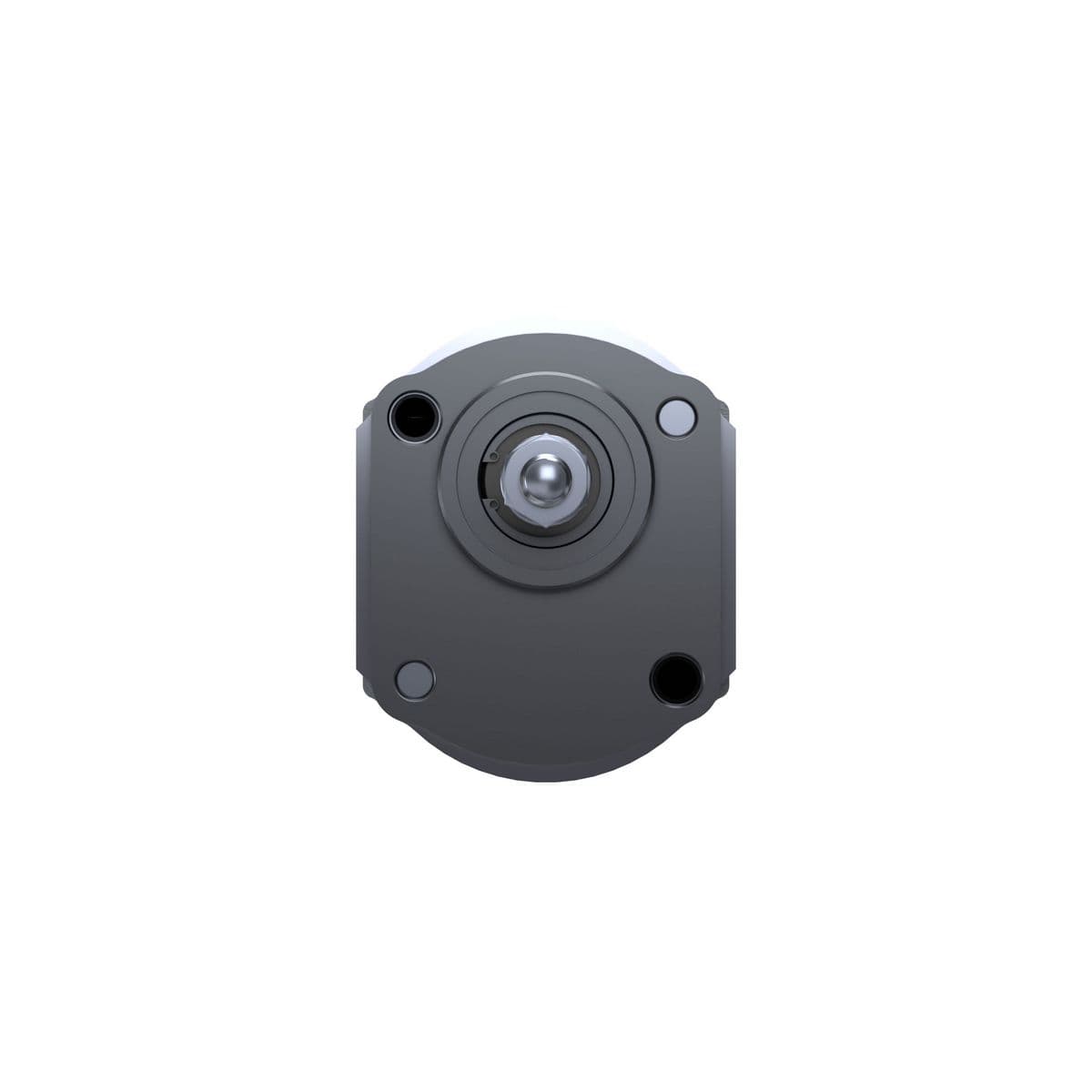

HYDRAULIC GEAR PUMP AZPF-22-022LCP20KB-S0719 [0510715321]

Name: HYDRAULIC GEAR PUMP AZPF-22-022LCP20KB-S0719 [0510715321]
Brand: REXROTH
SKU: 0510715321
Availability: PreOrder

Артикул:0510715321

Категория:Гидравлика

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

"22.5 cm³/rev, anti clockwise rotation, Conical 1:5, 2-hole mounting Ø 50 mm (K H D), Square flange DIN 3901/3902"

Product Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Consistent high quality based on large-volume productionDrive shafts according to ISO or SAE and customer specific solutionsLong service lifeSlide bearings for high loadsPort connections: flanged or threaded

Technical Specs

Характеристики

Характеристики изделия
Макс. расход (л/мин)	67.5
Nominal size [cm³/rev]	22.5
Max. intermittent pressure [bar]	240
Maximum rotational speed [rpm]	3000
Drive shaft	Conical 1:5
Direction of rotation	anti clockwise rotation
Front cover	2-hole mounting Ø 50 mm (K H D)
Материал корпуса	Aluminum
Noise level	Standard noise level
Изделие	External gear unit
Function	Pump
Model	Model F (4 ... 28 cm³/rev)
Серия	Bearing diameter Ø 20mm
Version	corrosion-resistant, pinned
Port connection	Square flange DIN 3901/3902
Sealing material	NBR, WDR in FKM
Rear cover	Standard
Масса (кг)	4
