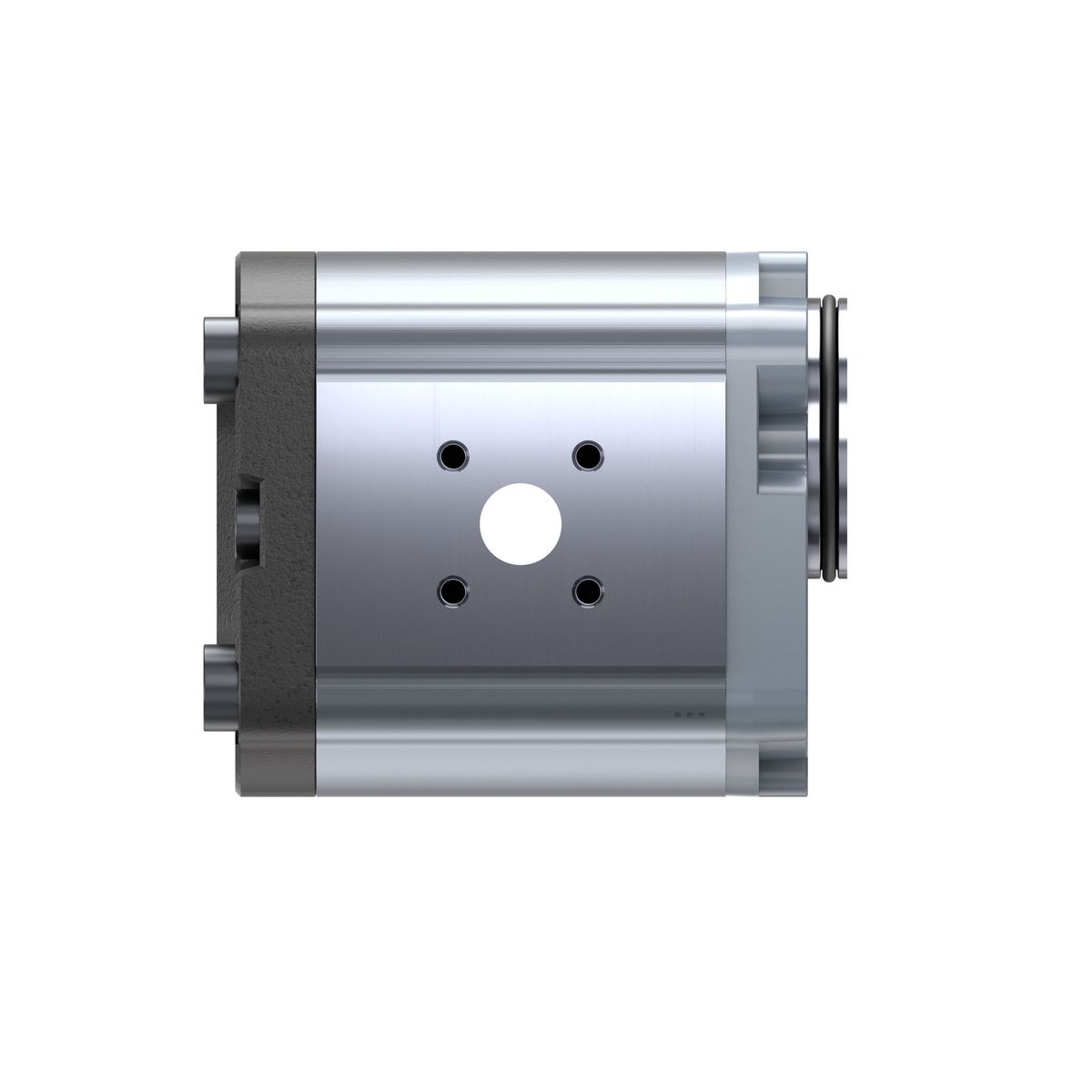

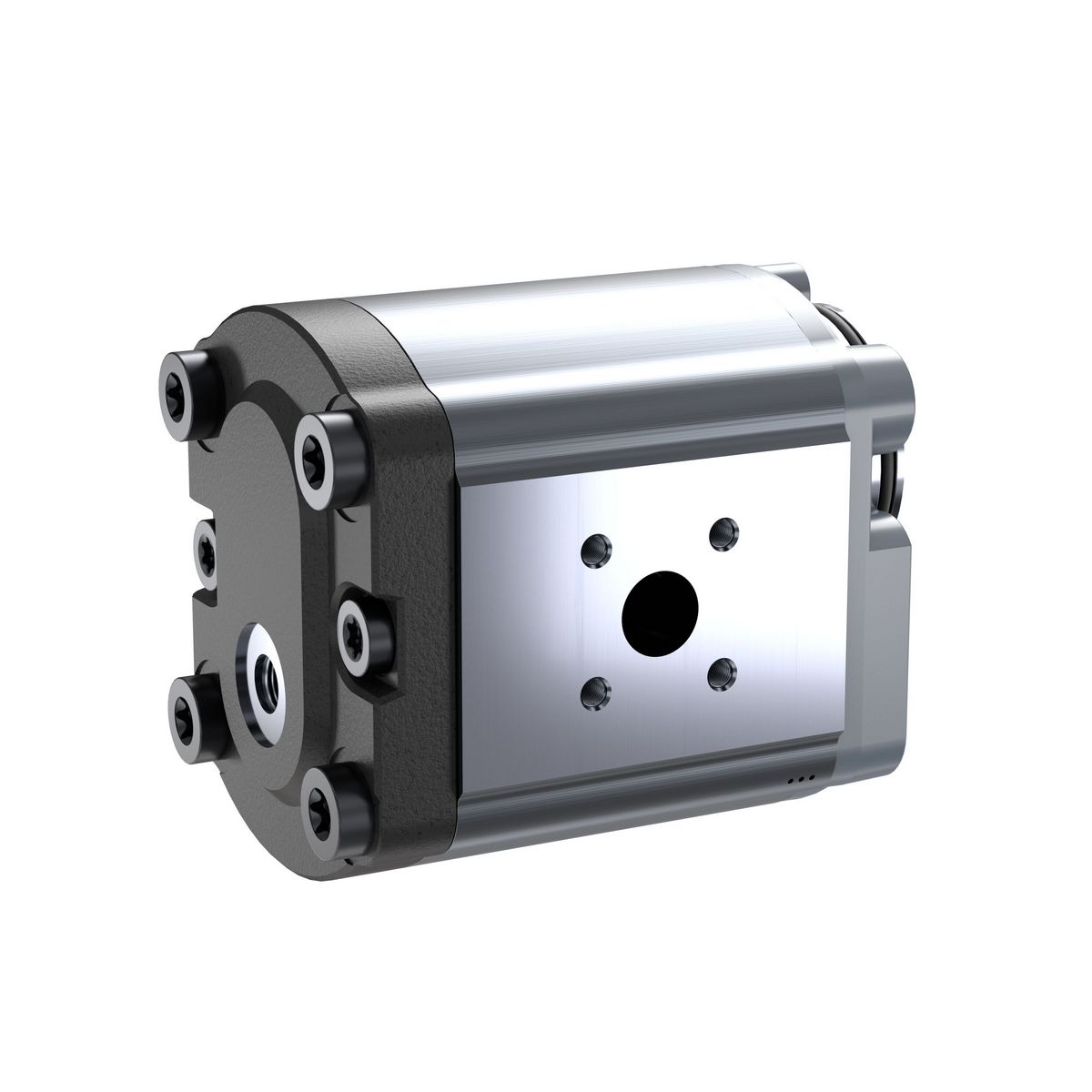

GEAR MOTOR AZMF-11-019UNT20ML-S0184 [0511615608]

Name: GEAR MOTOR AZMF-11-019UNT20ML-S0184 [0511615608]
Brand: REXROTH
SKU: 0511615608
Availability: PreOrder

Артикул:0511615608

Категория:Гидравлика

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

19 cm³/rev, Universal, 2 flats with claw, 4-hole mounting Ø 52 mm with O-ring, Rectangular flange for fitting ISO8434-1

Product Description

The key task of external gear motors is to convert hydraulic energy (flow and pressure) into mechanical energy (torque and rotational speed). To reduce heat loss, Rexroth external gear motors are designed to be extremely efficient. This efficiency is achieved through pressure-dependent gap sealing and high-precision manufacturing technology.

Consistent high quality based on large-volume productionLong service lifeSlide bearings for high loadsWide speed rangeOptional reversible version for 2- and 4-quadrant operation

Technical Specs

Характеристики

Характеристики изделия
Макс. расход (л/мин)	57.0
Nominal size [cm³/rev]	19
Maximum constant pressure [bar]	190
Maximum rotational speed [rpm]	3000
Drive shaft	2 flats with claw
Direction of rotation	Universal

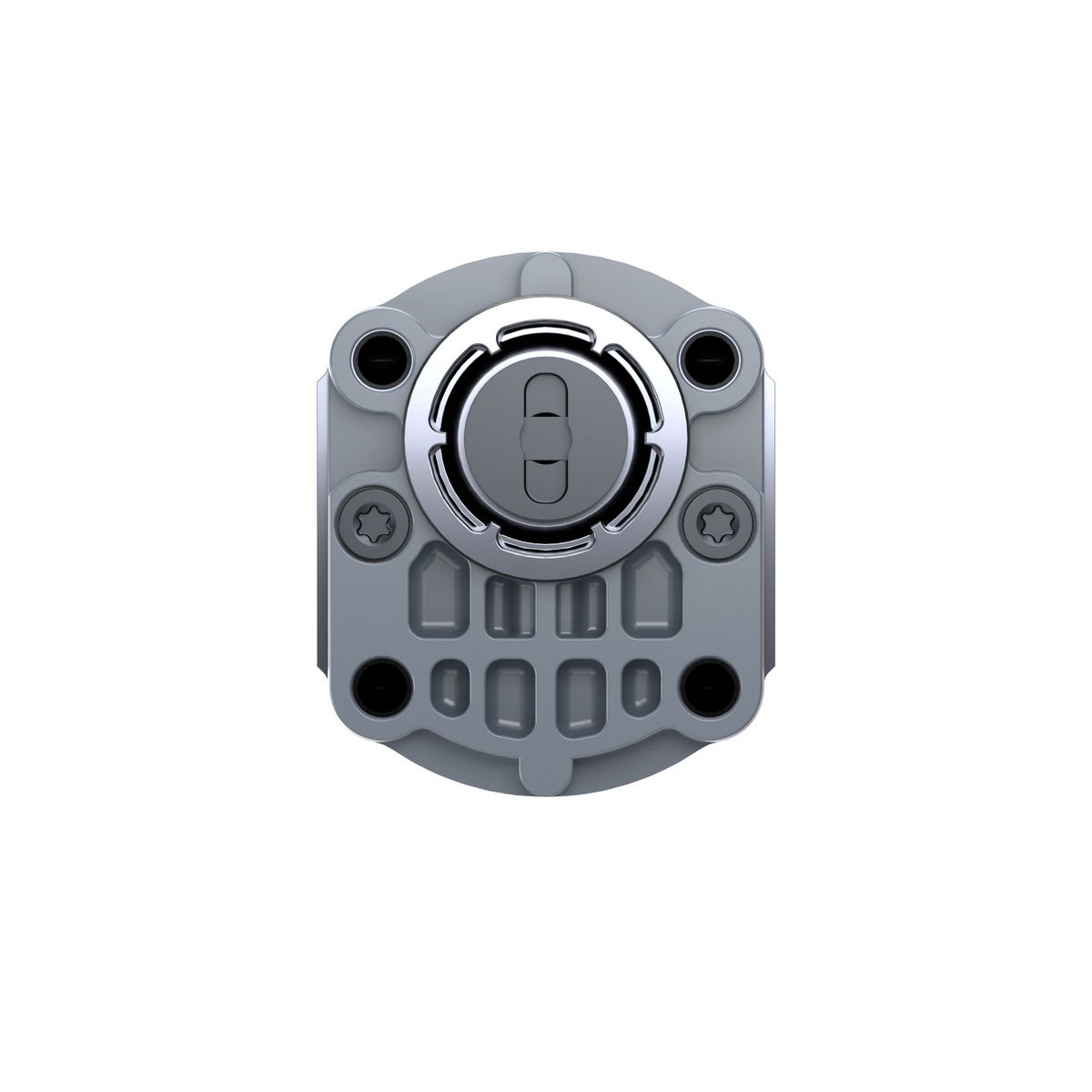

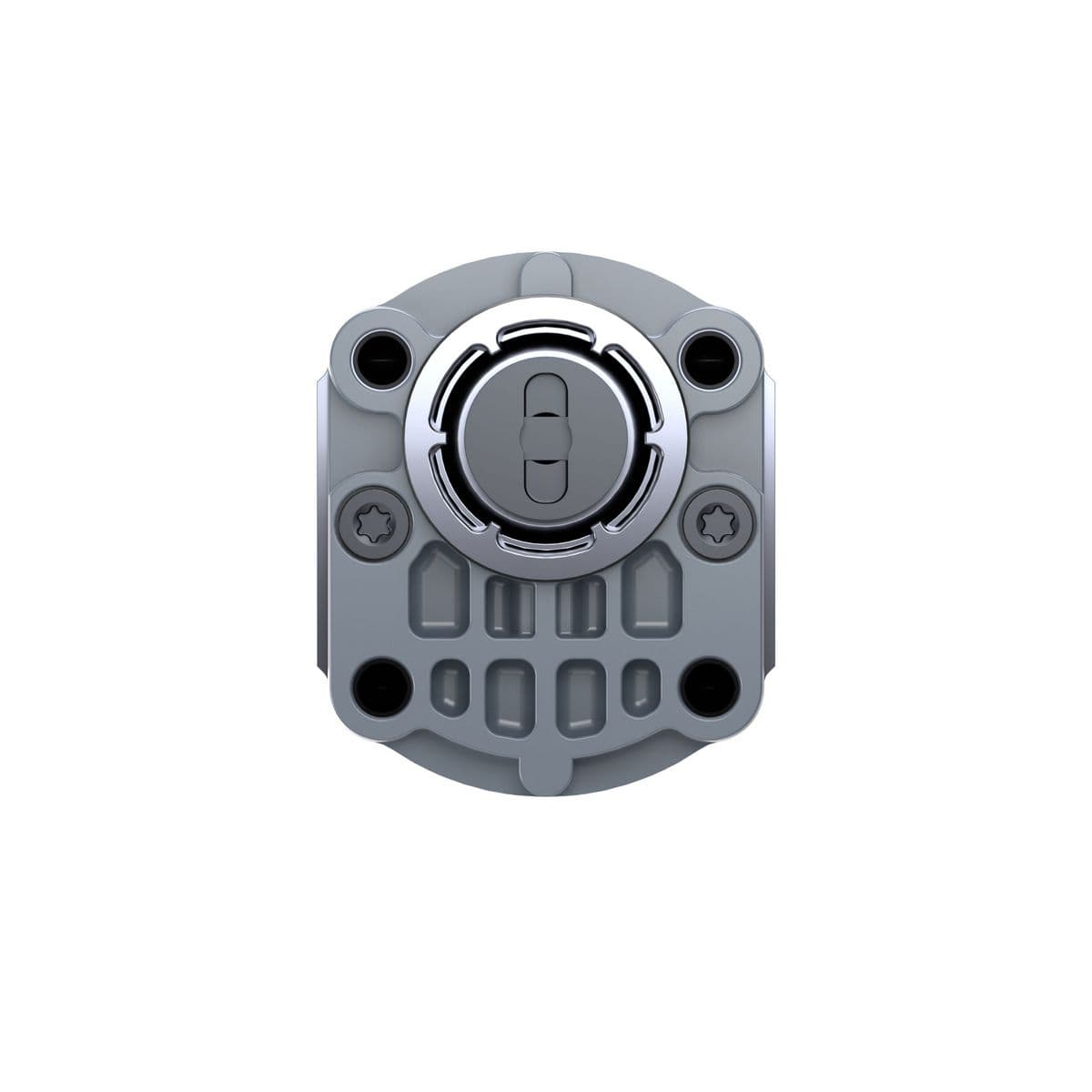

Front cover	4-hole mounting Ø 52 mm with O-ring
Материал корпуса	Aluminum
Noise level	Standard noise level
Изделие	External gear unit
Function	Motor
Model	Model F (5.5 ... 22.5 cm³/rev)
Серия	Bearing diameter Ø 18mm
Version	Phosphated, pinned
Port connection	Rectangular flange for fitting ISO8434-1
Sealing material	NBR

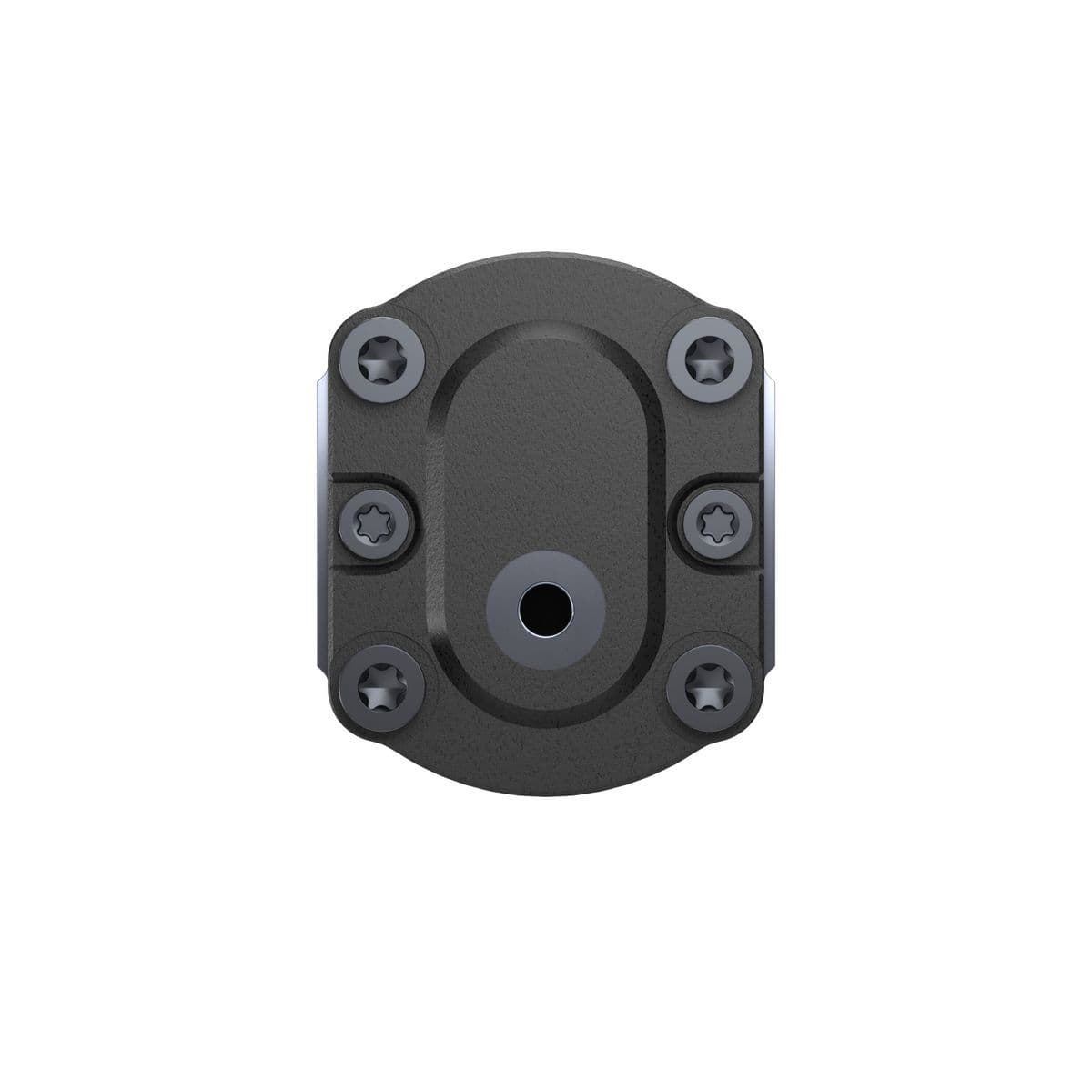

Rear cover	Drain port (axial)
Non-standard version	Deviations from catalogue standards, see drawing
Масса (кг)	2.42
