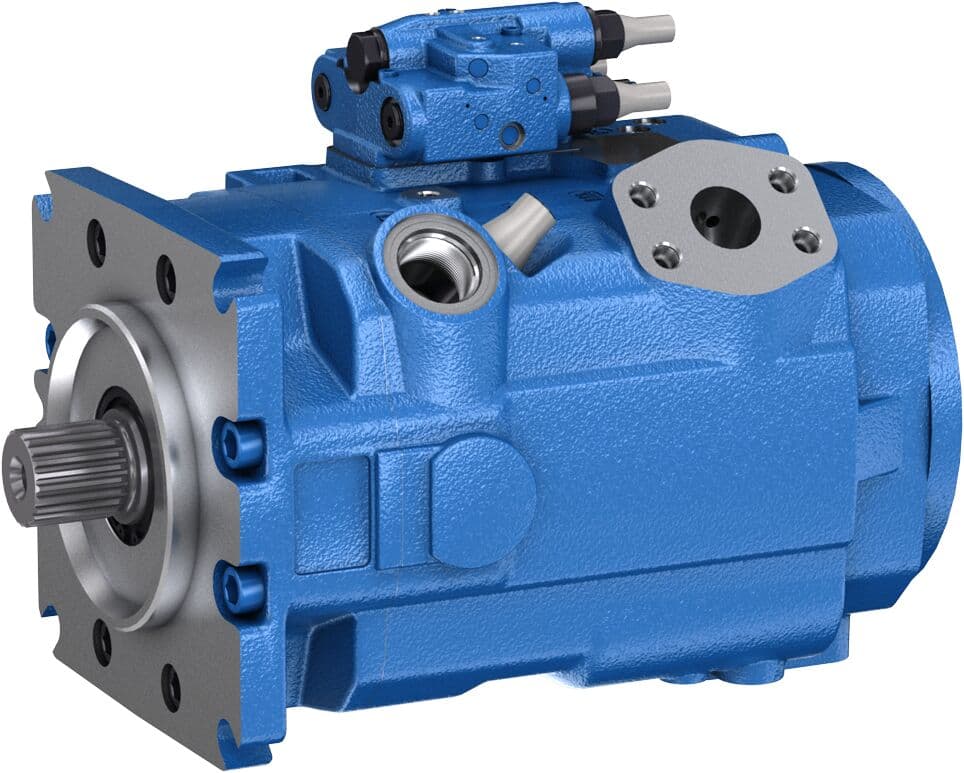

Гидрокомпонент REXROTH R902557596

Name: Гидрокомпонент REXROTH R902557596
Brand: REXROTH
SKU: R902557596

Артикул:R902557596

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Technical Specs

Характеристики изделия
Семейство	A15V
Тип управления	Open circuit, with charge pump
Size (displacement) [cm³]	280
Серия	Series 1, index 2
Port and fastening threads	Metric, ISO 6149, O-ring
Direction of rotation	clockwise
Sealing material	FKM, shaft seal FKM
Shaft end	Splined shaft DIN 5480, W60x2x28x9g
Mounting flange	SAE J744, 165-4
Through drive	Prepared for through drive, with pressure-proof plugged cover
Connector for solenoids	HIRSCHMANN connector
Swivel angle indicator	Without swivel angle indicator, without swivel angle sensor
Special version	Standard version
Rotational speed [rpm]	1500
Max. displacement [cm³]	280
Min. displacement [cm³]	0
Макс. расход (л/мин)	420.0
Min. flow [l/min]	0
Drive power [kW]	45
Pressure controller setting [bar]	350
Sensors	without sensor
Stroke control	Electrical proportional positive control U = 24 V
Override DG from cat. T	Without override DG (T)
Painting	unpainted
Power controller	Fixed setting
Swiveling range	One-sided swiveling (-5% to 100%)
Pressure controller 1	Fixed setting
Pressure controller 2	Without pressure cut-off
Addition for controller variant DRDR	Without addition for variant DRDR
Rotary group	Efficiency and rotational speed-optimized (pump)
Basic position and external control pressure supply	Max. swivel angle, without external control pressure supply
Override DG from cat. V	Without override DG (V)
Load-sensing	Without additional controller, load-sensing
Масса (кг)	157.82
