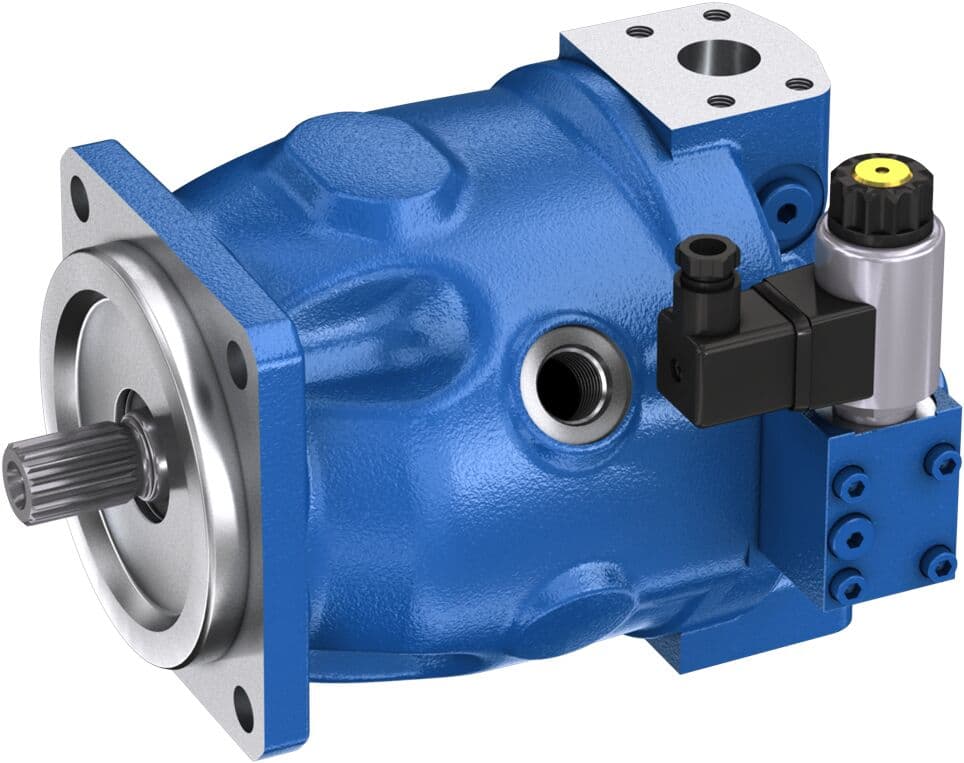

Гидрокомпонент REXROTH R902557889

Name: Гидрокомпонент REXROTH R902557889
Brand: REXROTH
SKU: R902557889

Артикул:R902557889

Категория:Гидравлика

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A10VZO, variable displacement unit, open circuit, medium pressure, size: 18 cm³, pressure controller, without through drive

Product Description

The proven axial piston units from the A10 product family have now been further developed for use in speed-controlled drives. They are approved for start\/stop operation and designed for a changing direction of rotation. The A10 units can be used as pumps and as motors in one- and two-quadrant operation.

For use in single- and double-quadrant operationSuitable for start\/stop-operationSuitable for long pressure retention operationWell-tried A10 rotary group technologyHigh total efficiency

Technical Specs

Характеристики

Характеристики изделия
Version_1	Standard
Version_2	Standard
Семейство	A10VZ
Тип управления	Pump, open circuit
Size (displacement) [cm³]	18
Control device	DR remote controlled
Серия	Series 1, index 0
Direction of rotation	clockwise (w.view on shaft end)
Sealing material	FKM (standard)
Shaft end	Splined shaft outlet
Mounting flange	ISO 3019-1 (SAE), 2 hole
Working ports	B flan l metr, S flan l metr
Through drive	Without through drive
Connector for solenoids	Without
Rotational speed [rpm]	3300
Working pressure [bar]	315
Max. displacement [cm³]	18.0
Max. displacement setting	Variabel
Min. displacement [cm³]	0.0
Min. displacement setting	Variabel
Макс. расход (л/мин)	59.4
Min. flow [l/min]	0.0
Internal drain line	No
Classification society (external)	No
Test certificate	without
Test certificate language code	Without
Paint/base coat	without
Paint/top coat	Without
Масса (кг)	12
