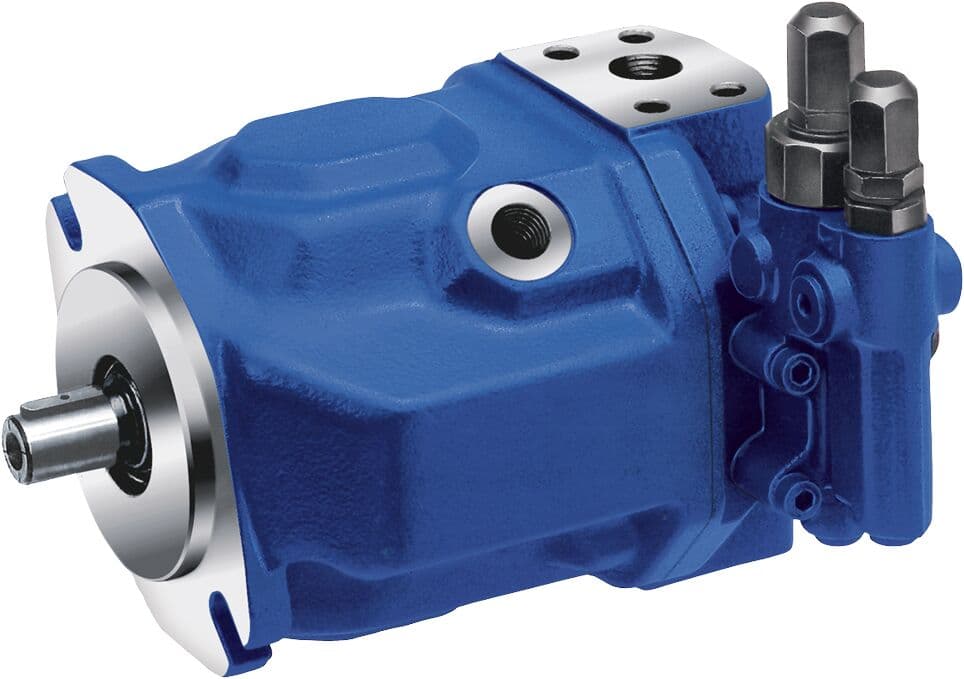

Гидрокомпонент REXROTH R902566701

Name: Гидрокомпонент REXROTH R902566701
Brand: REXROTH
SKU: R902566701

Артикул:R902566701

Категория:Гидравлика

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A10VSO, variable displacement unit, open circuit, medium pressure, size: 100 cm³, pressure controller, without through drive

Product Description

The A10VSO is a variable pump with axial piston rotary group in swashplate design for hydrostatic drives in open circuits. The flow is proportional to the drive speed and the displacement. The flow can be continuously changed with closed loop control.

Low operating noiseLong service lifeControls with short response timesExcellent suction characteristics2 drain ports

Technical Specs

Характеристики

Характеристики изделия
Version_1	Standard
Version_2	Standard
Семейство	A10VSO
Тип управления	Variable pump, open circuit
Size (displacement) [cm³]	100
Control device	Pressure controller
Серия	Series 3, index 1
Direction of rotation	clockwise (w.view on shaft end)
Sealing material	FKM (standard)
Shaft end	ISO shaft key
Mounting flange	ISO 3019-2 (metric), 2 hole
Working ports	B flan l metr, S flan l metr
Through drive	Without through drive
Connector for solenoids	Without
Rotational speed [rpm]	1500
Working pressure [bar]	280
Max. displacement [cm³]	100.0
Max. displacement setting	Variabel
Min. displacement [cm³]	0.0
Min. displacement setting	Variabel
Макс. расход (л/мин)	150.0
Min. flow [l/min]	0.0
Internal drain line	No
Classification society (external)	No
Test certificate	Without
Test certificate language code	Without
Paint/base coat	without
Paint/top coat	without
ATEX type of protection	without
Масса (кг)	49
