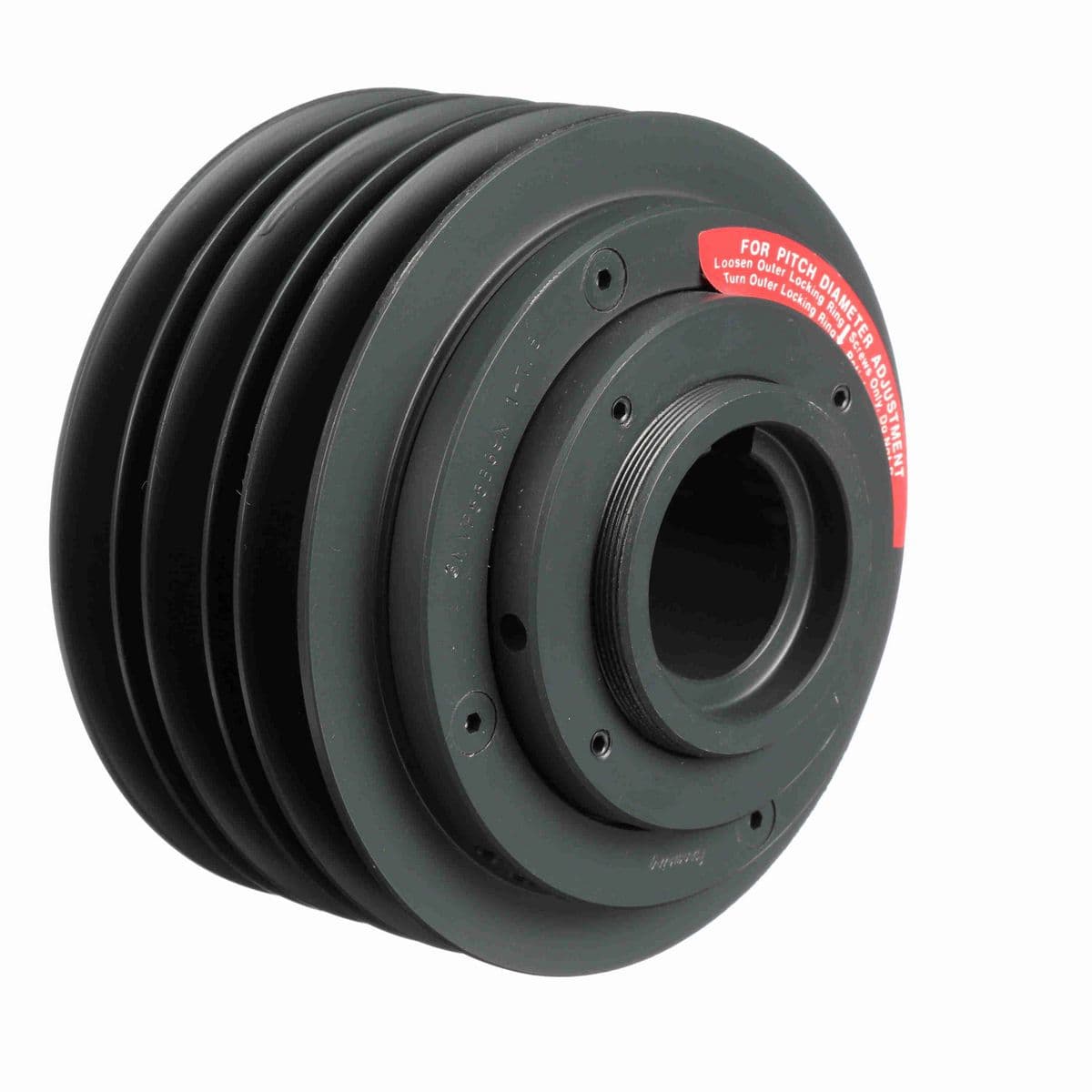

Ремень Browning 5MVP55B69X 1 7/8

Name: Ремень Browning 5MVP55B69X 1 7/8
Brand: Browning
SKU: 5MVP55B69X 1 7/8

Артикул:5MVP55B69X 1 7/8

Категория:Клиновые ремни и шкивы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry.Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance.VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore.The male section with threaded barrel has flat surfaces at 180 degree increments that allow a flat surface for the setscrew to mate with.When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed.When discs are moved away from each other, the belt rides lower and the pitch diameter is smaller decreasing the driven speed.

Характеристики

Технические характеристики
Outside Length (in)	7 in
Face Width (Min) (in)	5.3125 in
Number of Grooves	5
Ring	4.375
Pitch Diameter Range (B)	7.2 - 5.8
Pitch Diameter Range (A)	6.7 - 5.6
Материал	Cast Iron
Face Width (Max) (in)	5.6875 in
Наружный диаметр	7.18 in
Type of Bore	Finished
Тип изделия	MVP Sheaves
Belt Section	A, B
Отверстие	1.875 in
Тип отверстия	Finished with Keyway and SS
Keyway Size	.500
Set Screw Tightening Torque (in-lb)	290
Set Screw Thread	3/8-16 UNC-3AX3/8
Общие характеристики
Масса	15.89 кг
Длина упаковки	7.18 IN
Ширина упаковки	7.18 IN
Высота упаковки	7.00 IN
Код ТН ВЭД	8483.50.9040
Страна происхождения	США
