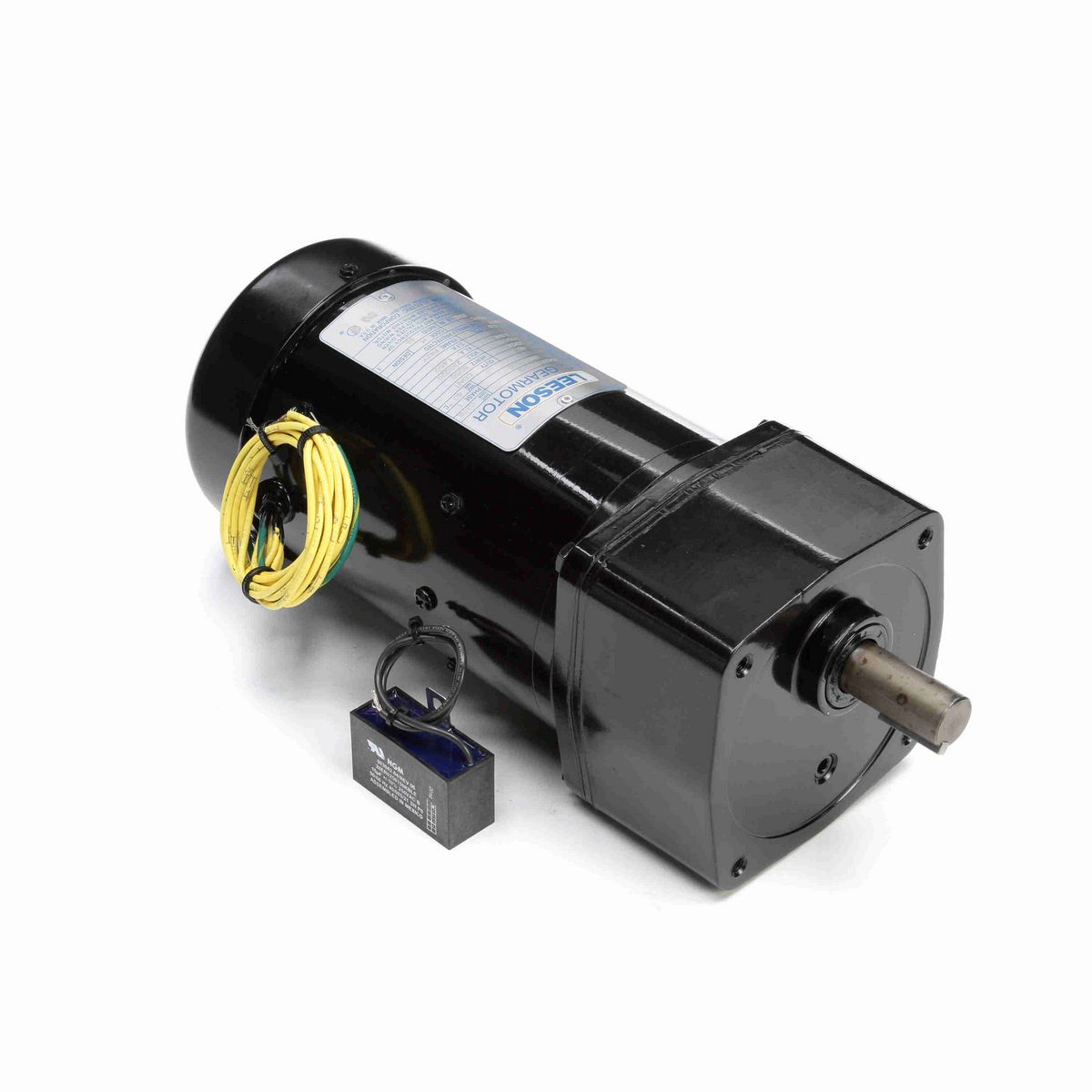

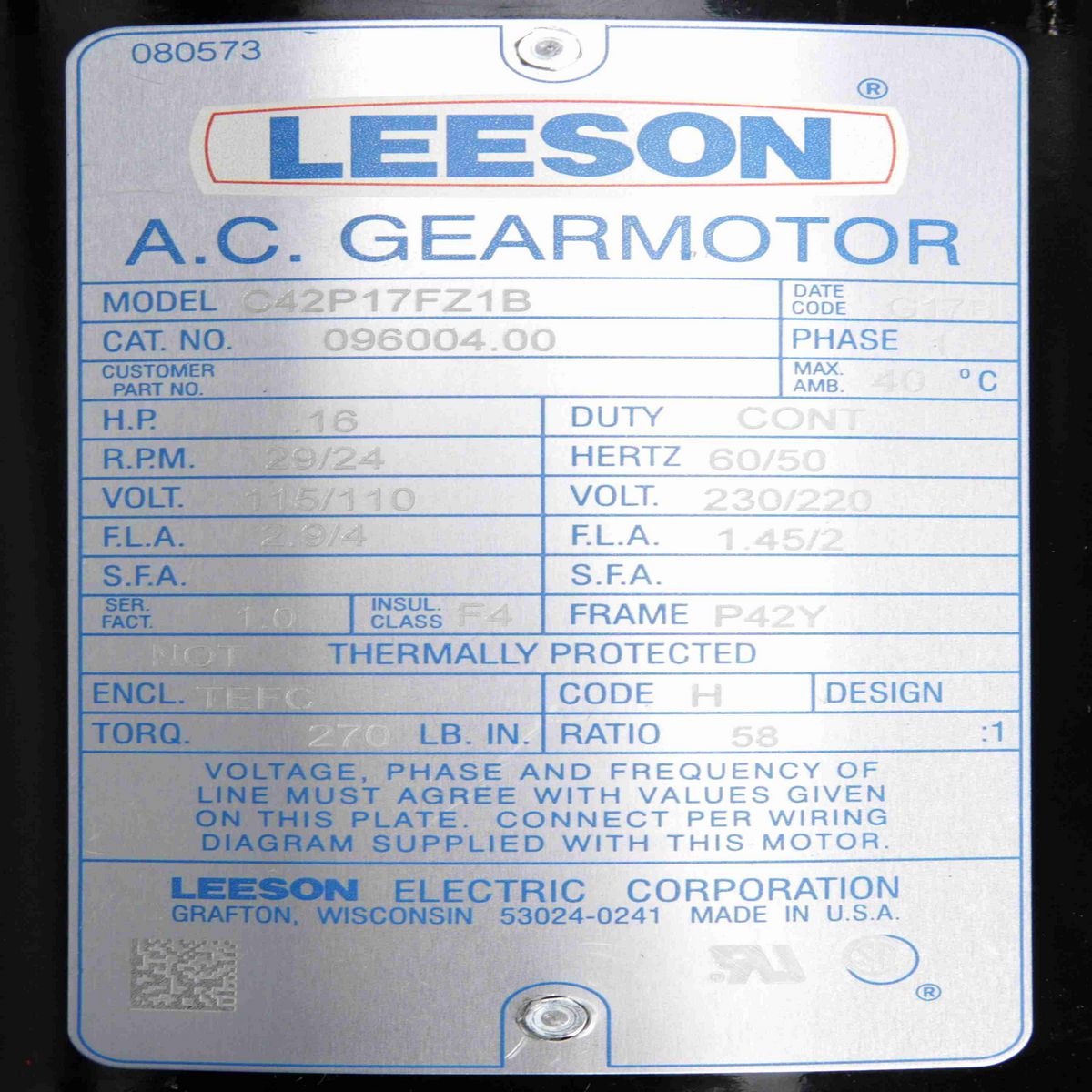

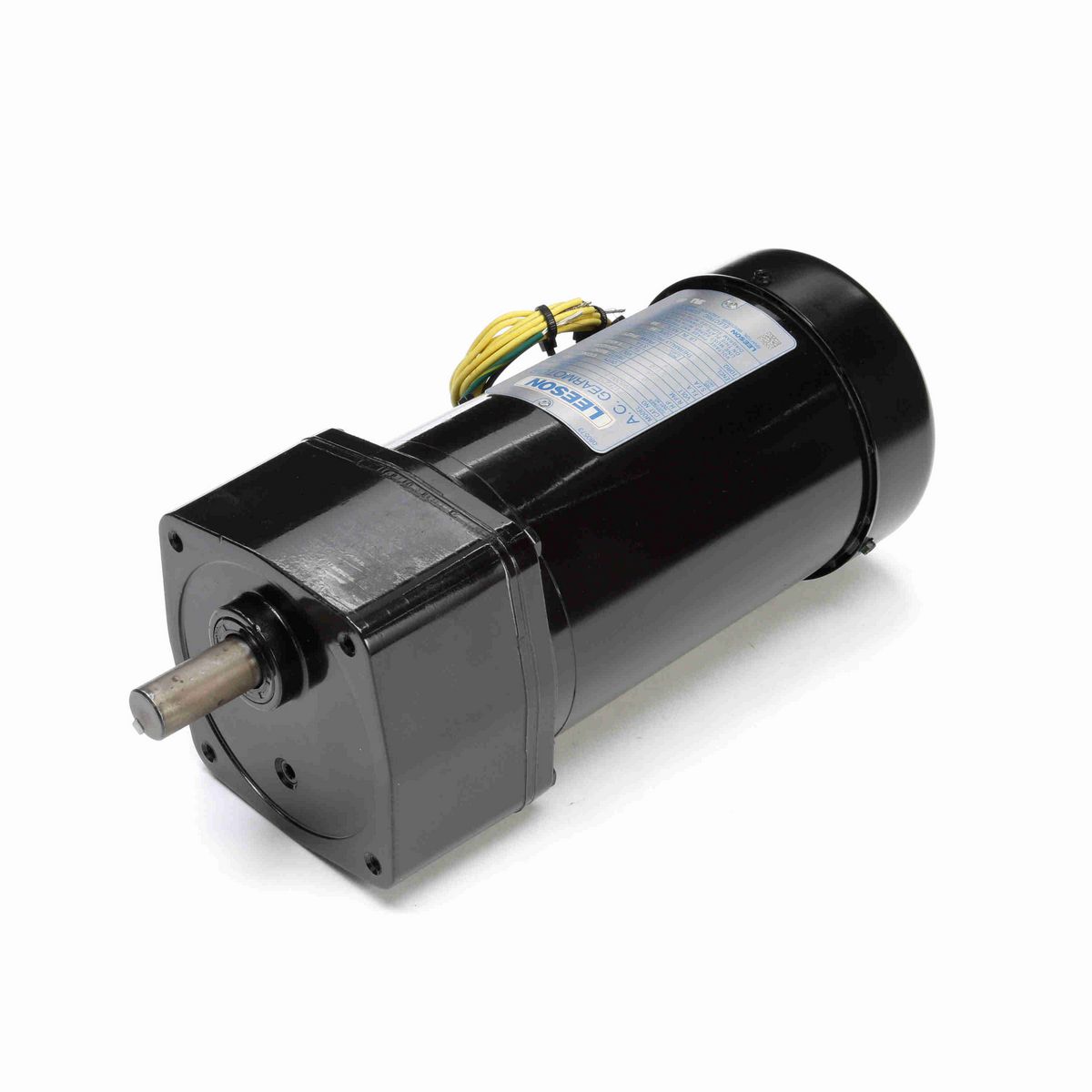

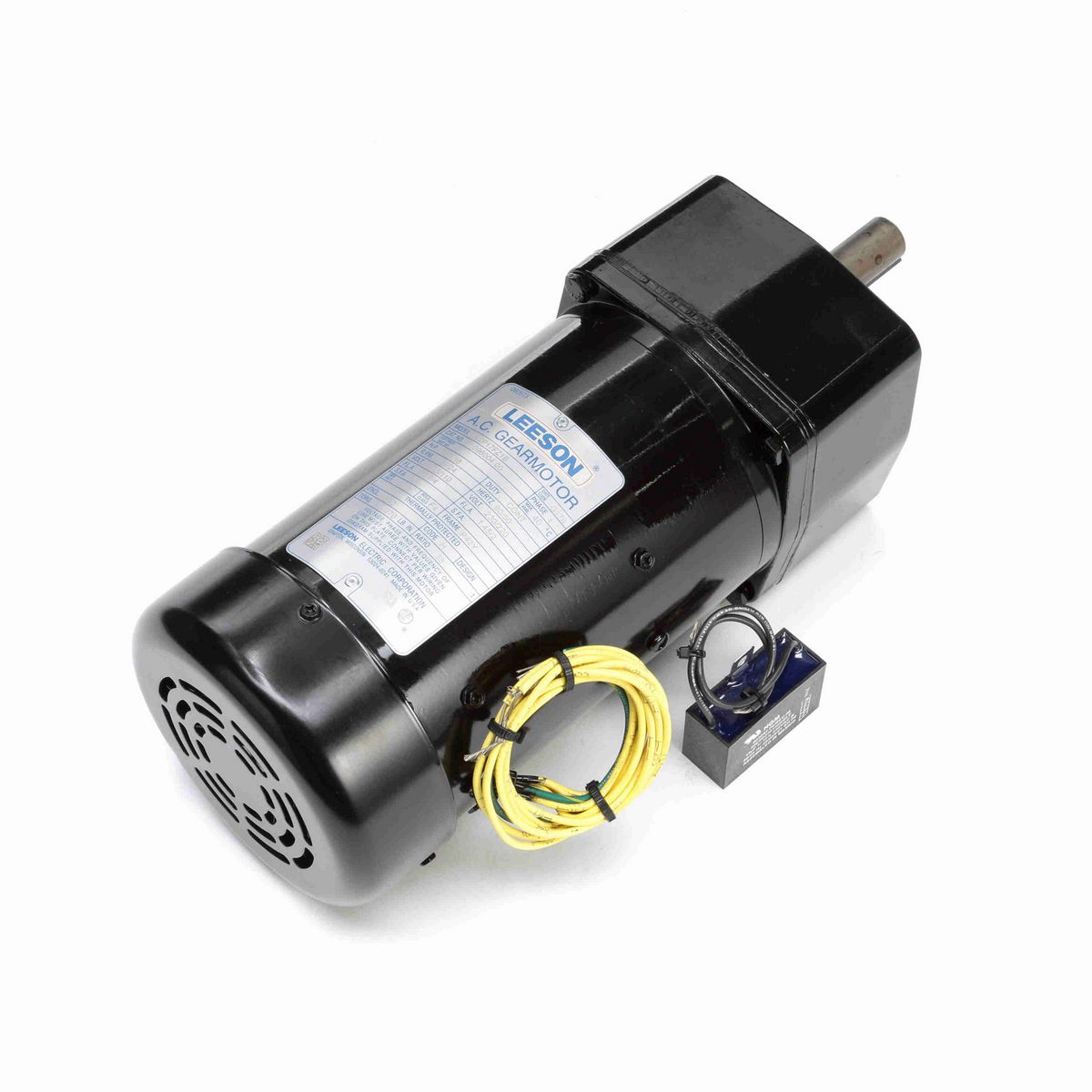

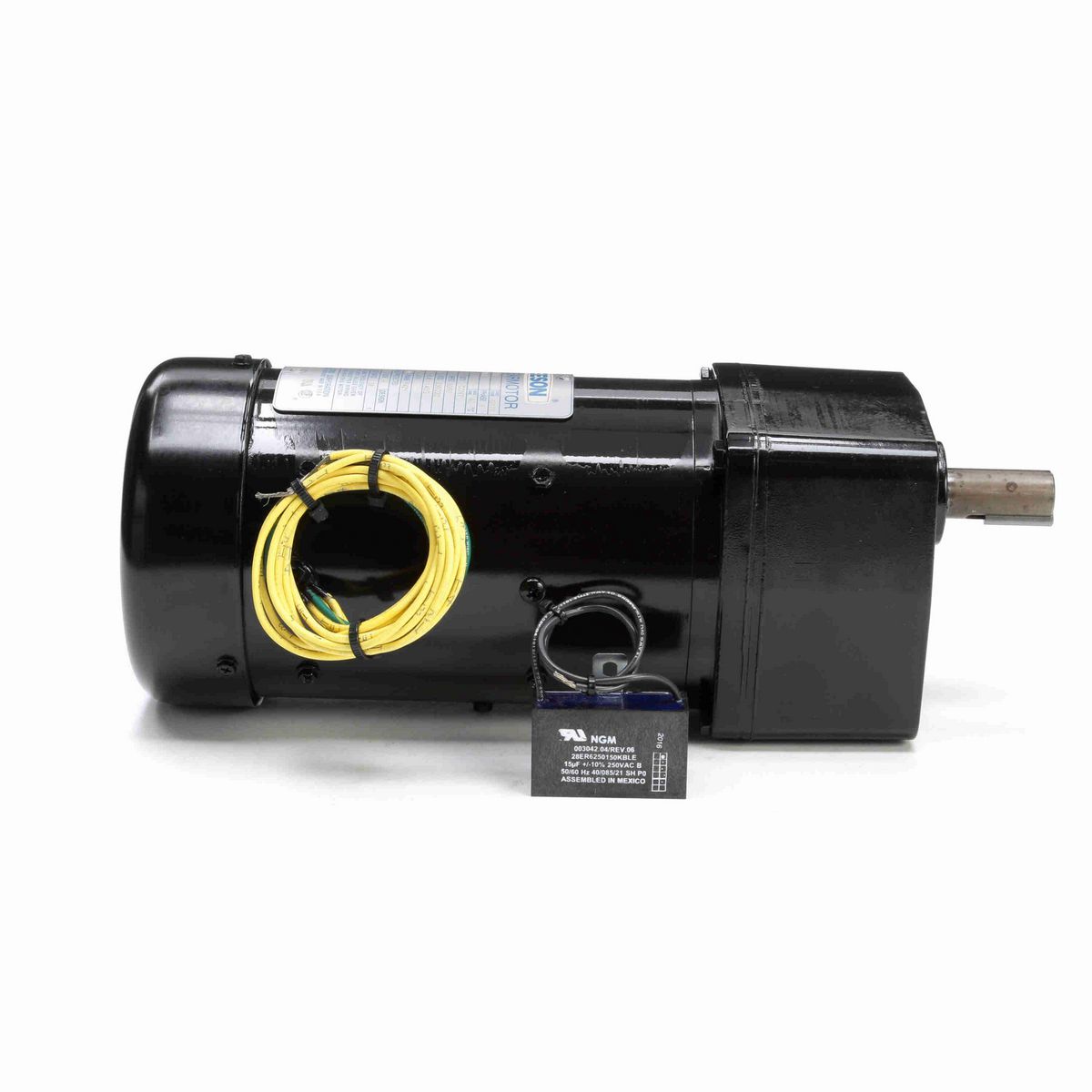

LEESON Parallel Shaft Gearmotor, 0.16 HP, 1 Ph, 60 Hz, 110 V, 29 RPM, P42Y Frame, TEFC - 096004.00

All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz onlyRugged die cast aluminum gear housing for maximum gear and bearing supportPrecision machined gearing, hardened for maximum load capabilityAll gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%Oversized output bearings for greater overhung load capacity and long lifeHigh carbon alloy output shaft provides maximum strength and rigidityAll needle bearing journals are precision ground after heat treating to provide maximum fit and finishHeavy duty industrial oil seals keep lubricant in and dirt out; Gears and bearings are splash lubricated with permanent, heavy duty gear oil; Run capacitor supplied at no additional cost for single phase designsThree phase and hi-torque single phase models include conduit box, other single phase models do not; These gearmotors are designed for mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal failOverhung load capacities shown are at center of output shaft; Optional conduit box available
