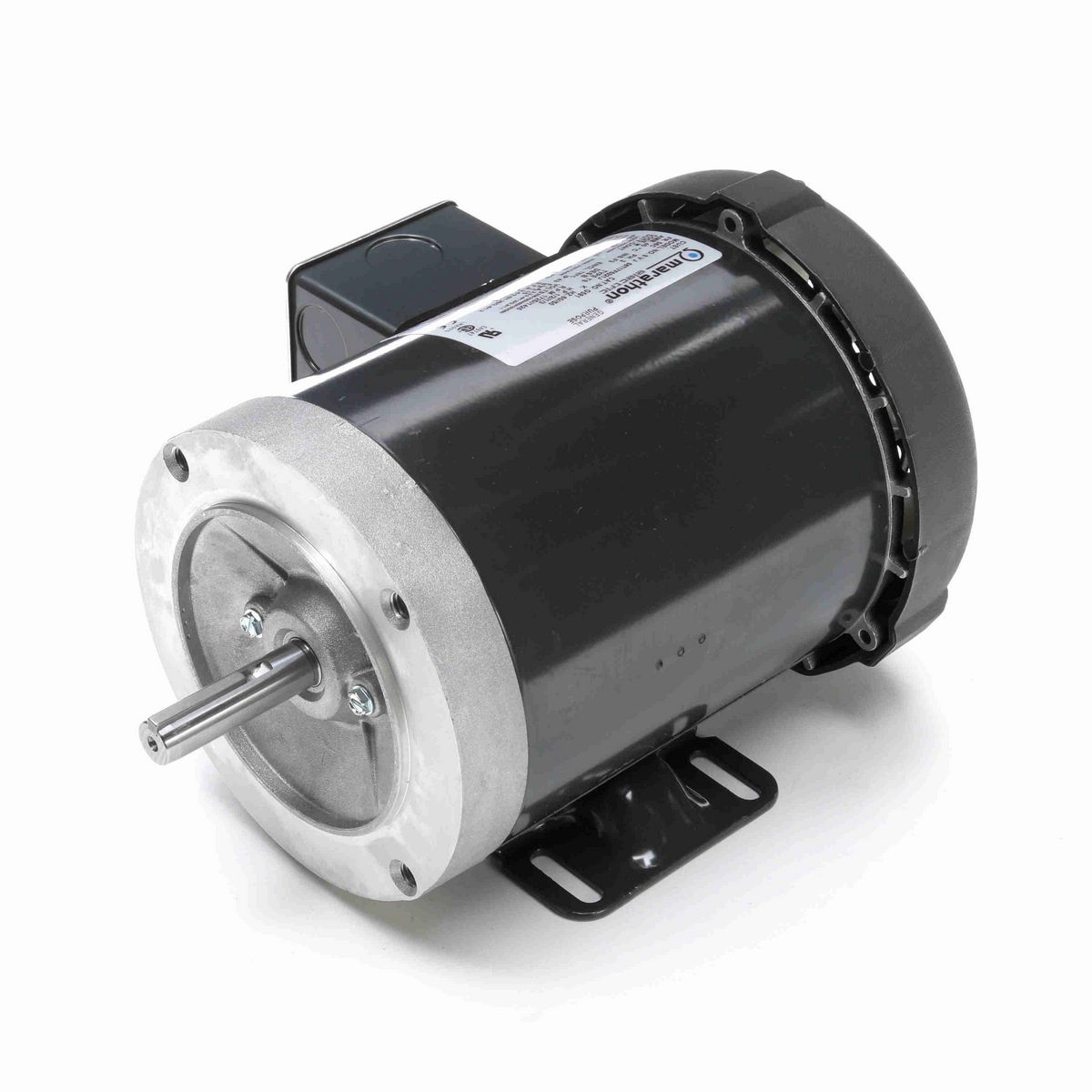

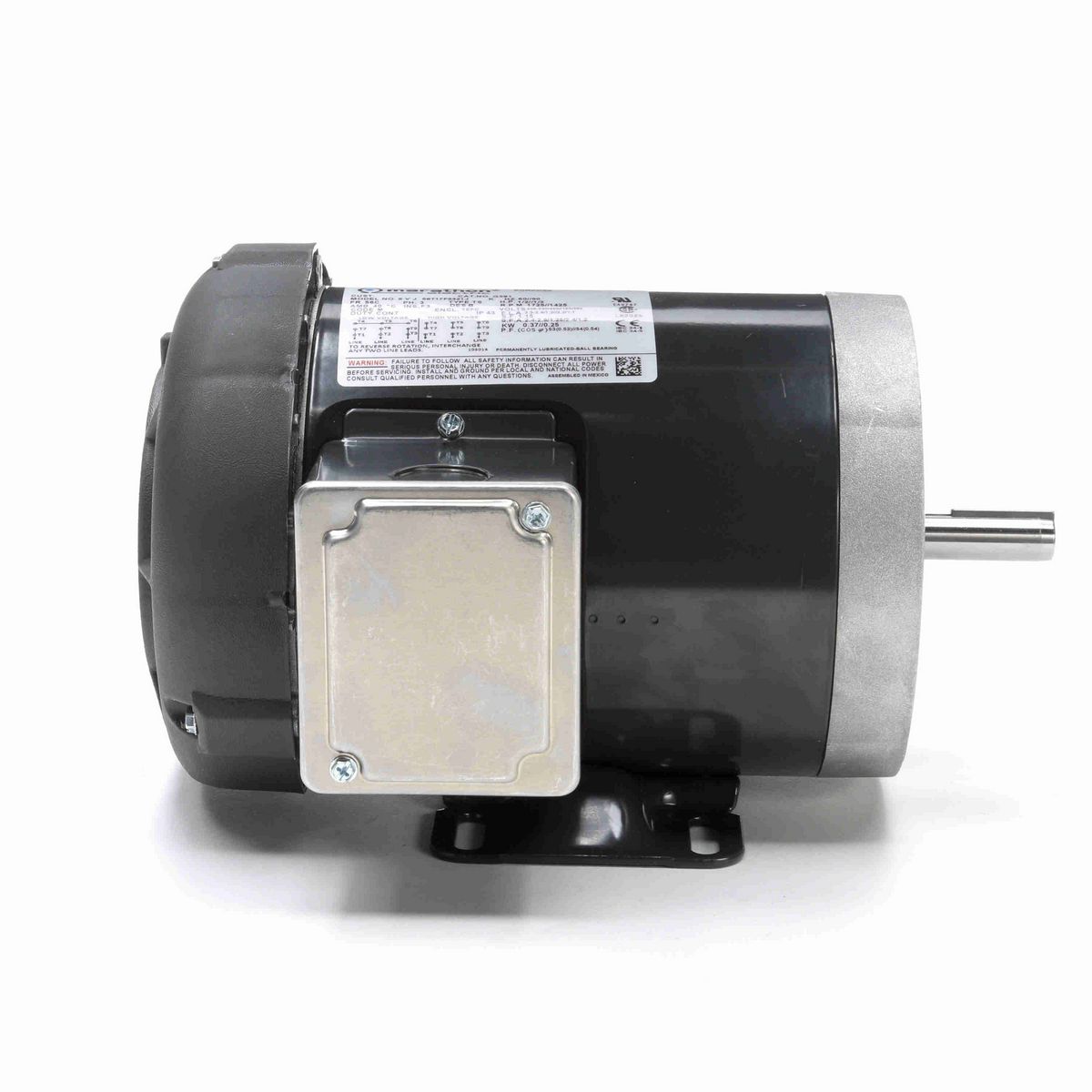

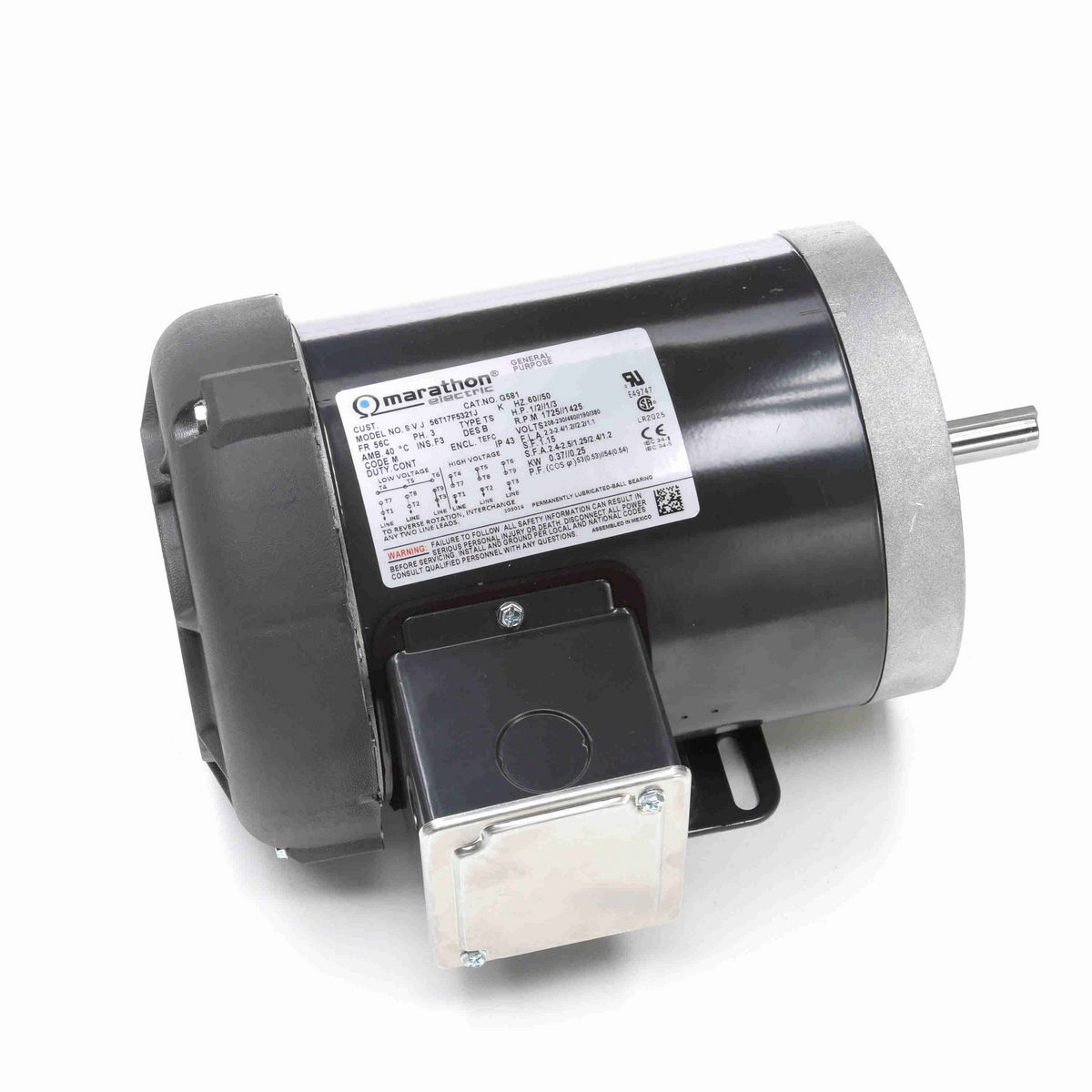

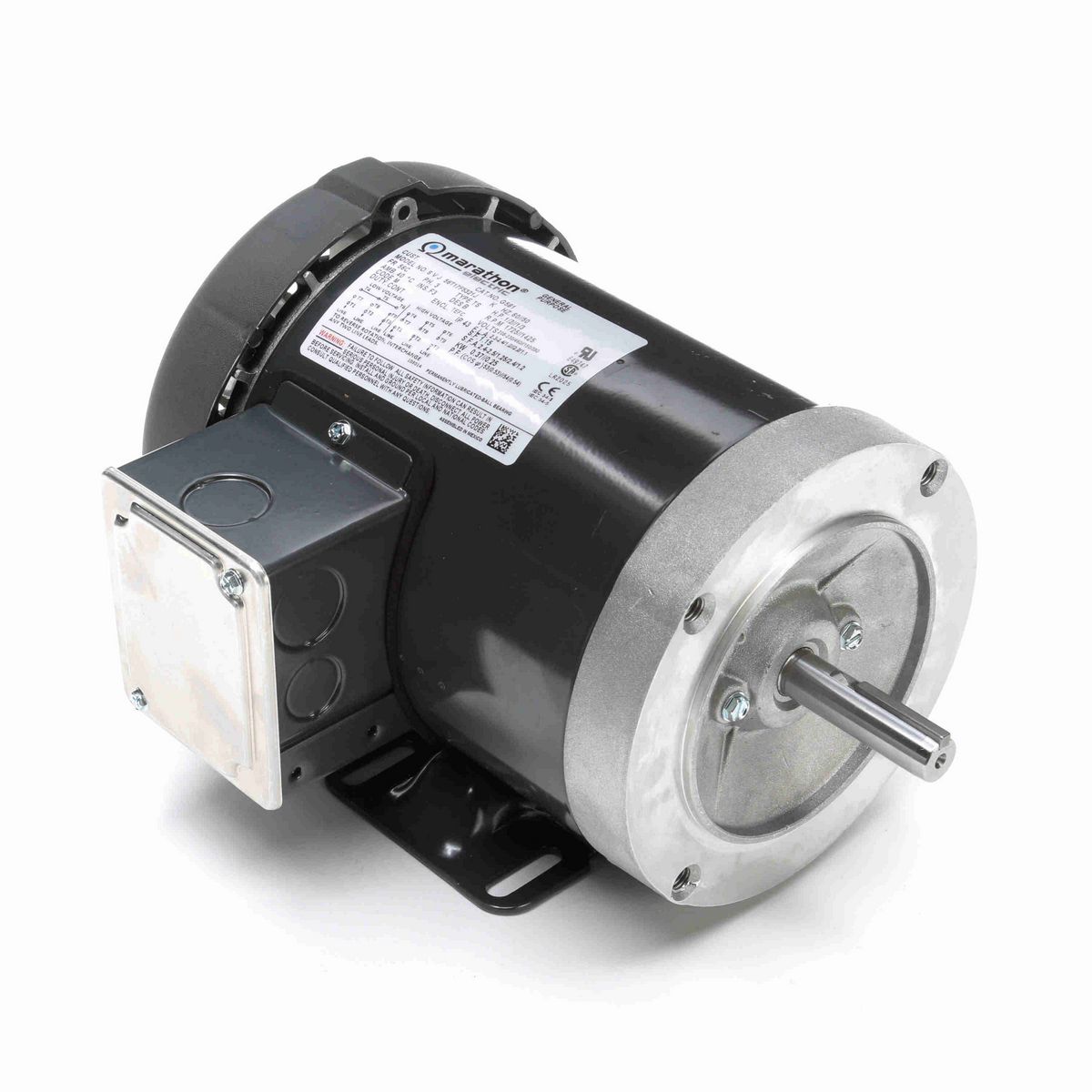

LEESON General Purpose Motor, 0.50 & 0.33 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 56C Frame, TEFC - G581

Name: LEESON General Purpose Motor, 0.50 & 0.33 HP, 3 Ph, 60 & 50 Hz, 208-230/460 & 190/380 V, 1800 & 1500 RPM, 56C Frame, TEFC - G581
Brand: LEESON
SKU: General Purpose Motor
Availability: PreOrder

Артикул:General Purpose Motor

Категория:Электродвигатели и приводная электроника

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.Continuous duty cycle design allows maximum operation at the rated power specifications.Class B or F Insulation protects motor for a maximum temperature rating.Permanently lubricated, double-sealed bearings extend the lifetime of the motor.As of 4/30/24 this product is now listed as LEESON® brand due to <a href="https://investors.regalrexnord.com/investors/ir-news/press-release-details/2024/Regal-Rexnord-Corporation-Closes-The-Sale-Of-Its-Industrial-Motors--Generators-Business-To-WEG/default.aspx">the divestiture of the Industrial Business.</a>

Характеристики

Паспортные данные
Phase	3
Output HP	0.50 & 0.33 Hp
Output KW	0.37 & 0.25 kW
Voltage	208-230/460 & 190/380 V
Speed	1725 & 1425 об/мин
Сервисный коэффициент	1.15 & 1.15
Frame	56C
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	72 & 67 %
Ambient Temperature	40 °C
Frequency	60 & 50 Hz
Current	2.3-2.4/1.2 & 2.2/1.1 A
Power Factor	53
Duty	Continuous
Insulation Class	F
Design Code	B
KVA Code	M
Drive End Bearing Size	6203
Opp Drive End Bearing Size	6203
UL	Recognized
CSA	Y
CE	Y
IP Code	43
Number of Speeds	1
Технические характеристики
Electrical Type	Squirrel Cage Inverter Rated
Starting Method	Line Or Inverter
Poles	4
Rotation	Reversible
Resistance Main	40 Ohms
Mounting	Bolt-on Base
Motor Orientation	Horizontal Or Up Or Down
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	NEMA 56
Общая длина	11.81 in
Frame Length	6.56 in
Shaft Diameter	0.625 in
Shaft Extension	2.06 in
Assembly/Box Mounting	F1 ONLY
Inverter Load	CONSTANT 10:1
Общие характеристики
Масса	10.43 кг
Длина упаковки	16.38 IN
Ширина упаковки	10.50 IN
Высота упаковки	8.12 IN
Код ТН ВЭД	8501.51.4040
Страна происхождения	Мексика
