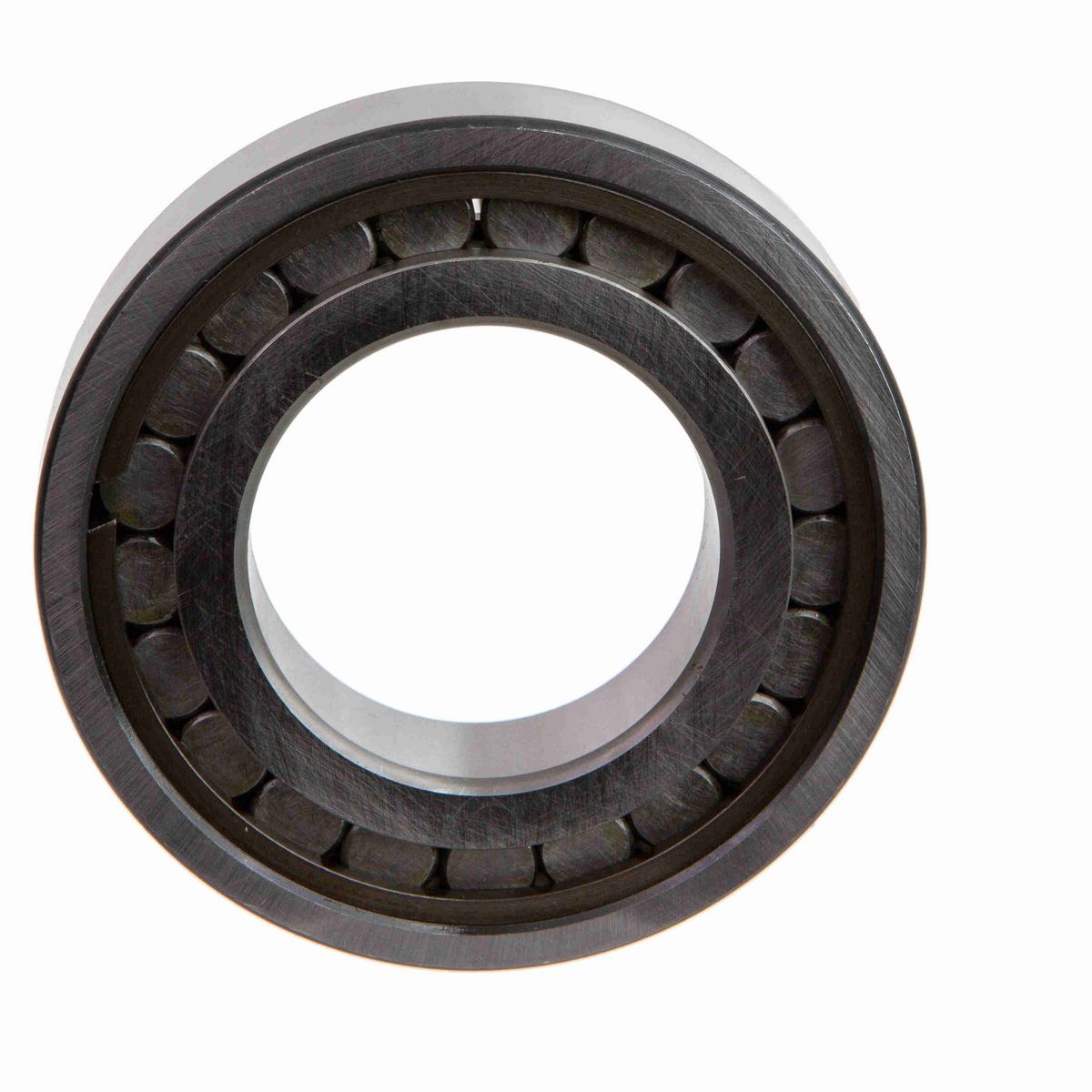

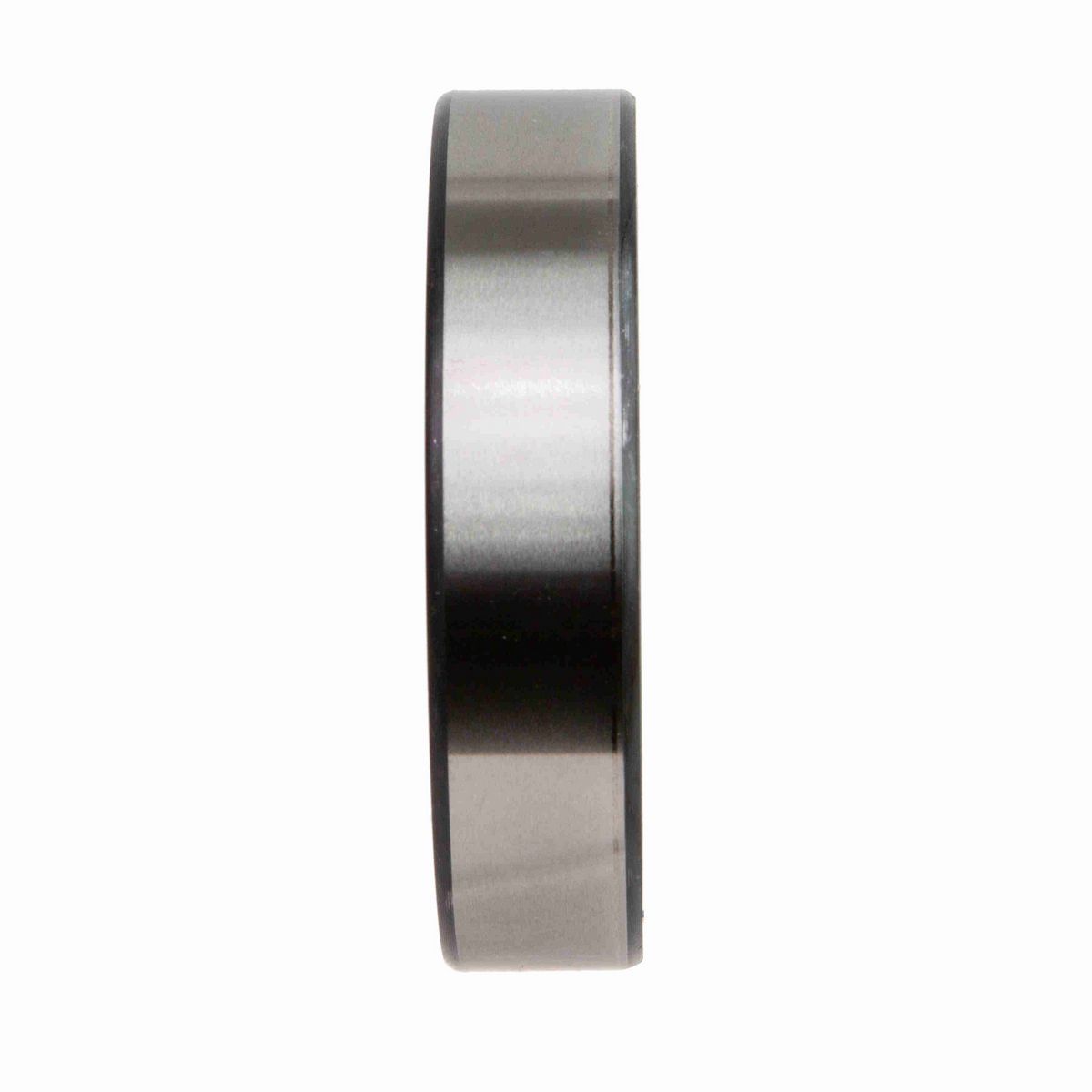

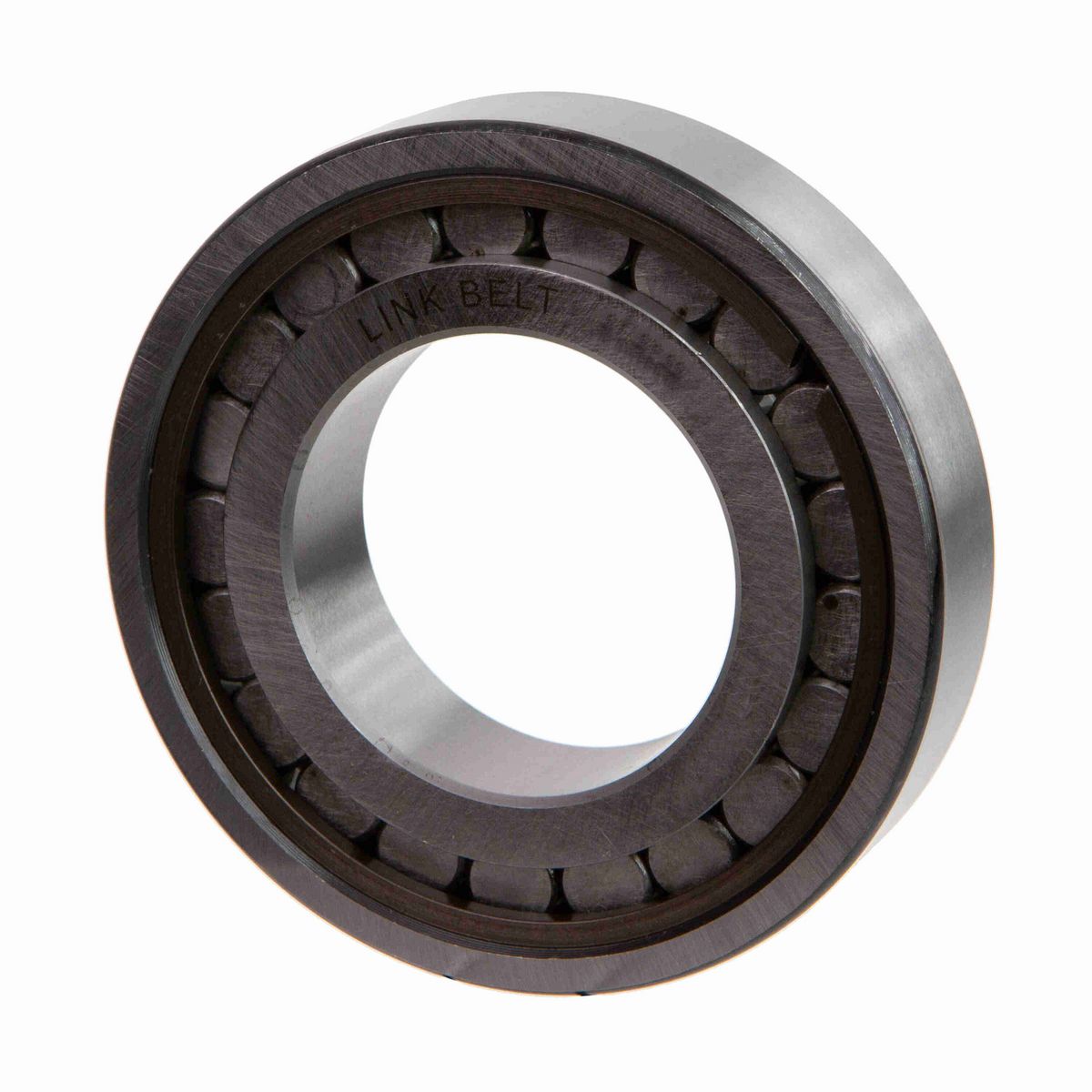

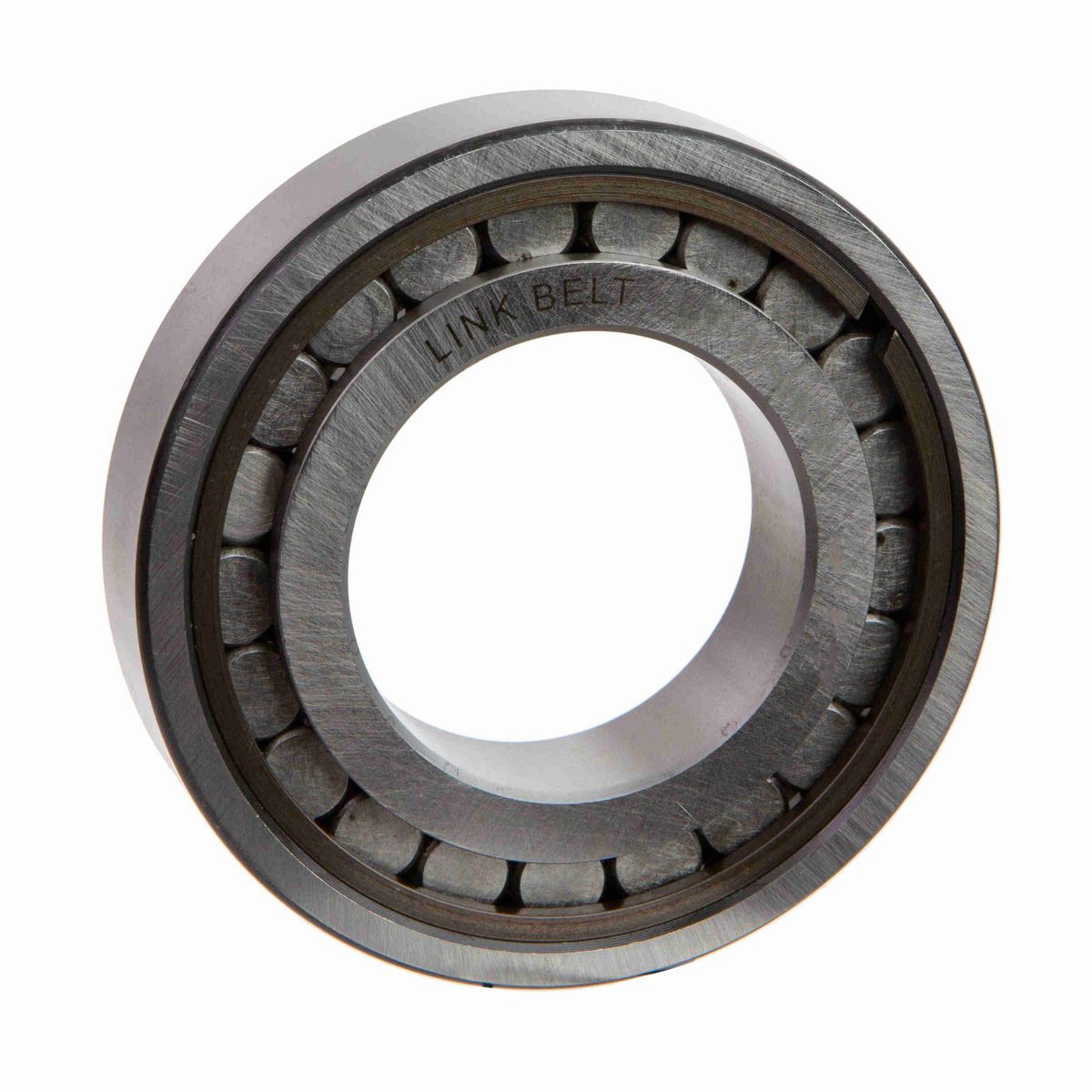

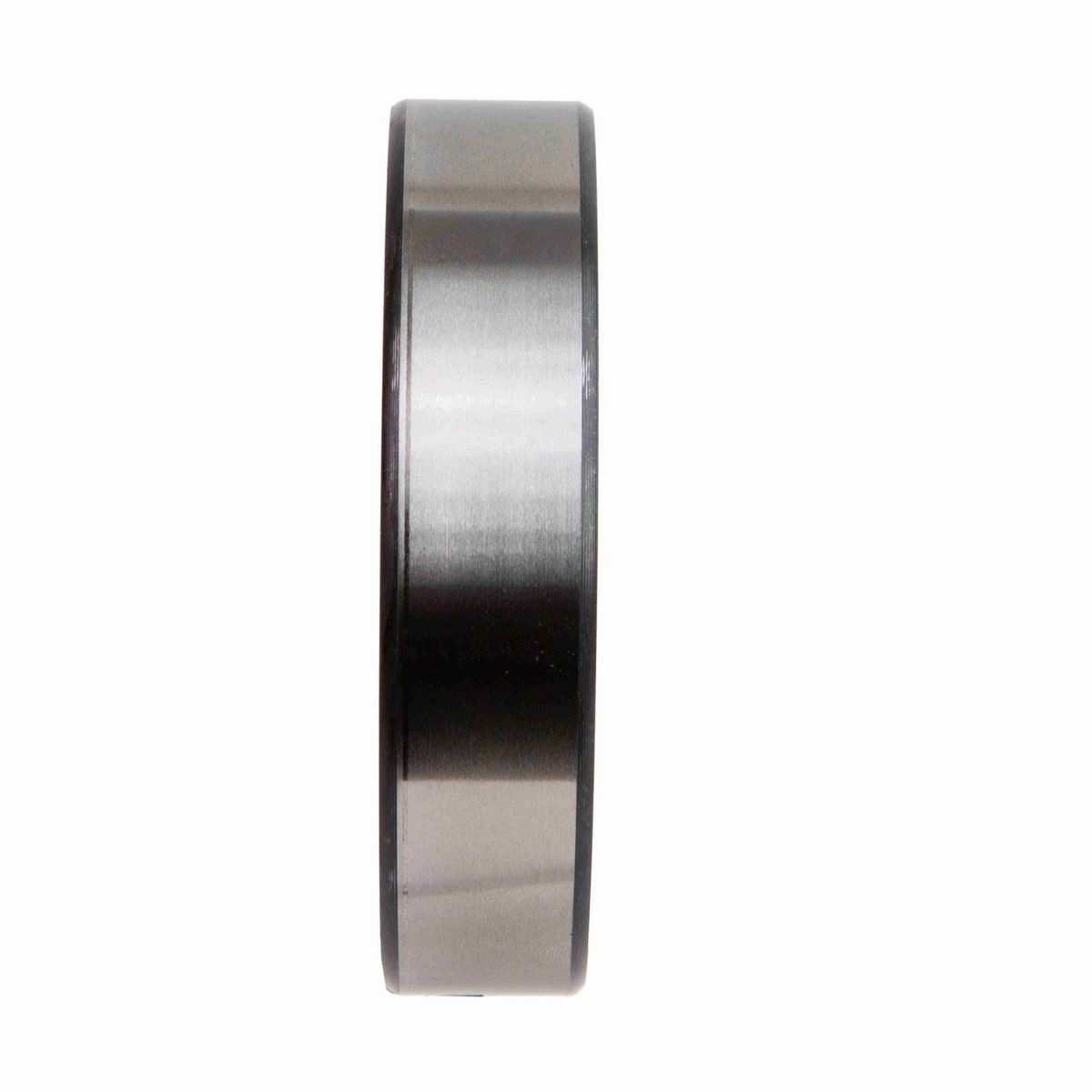

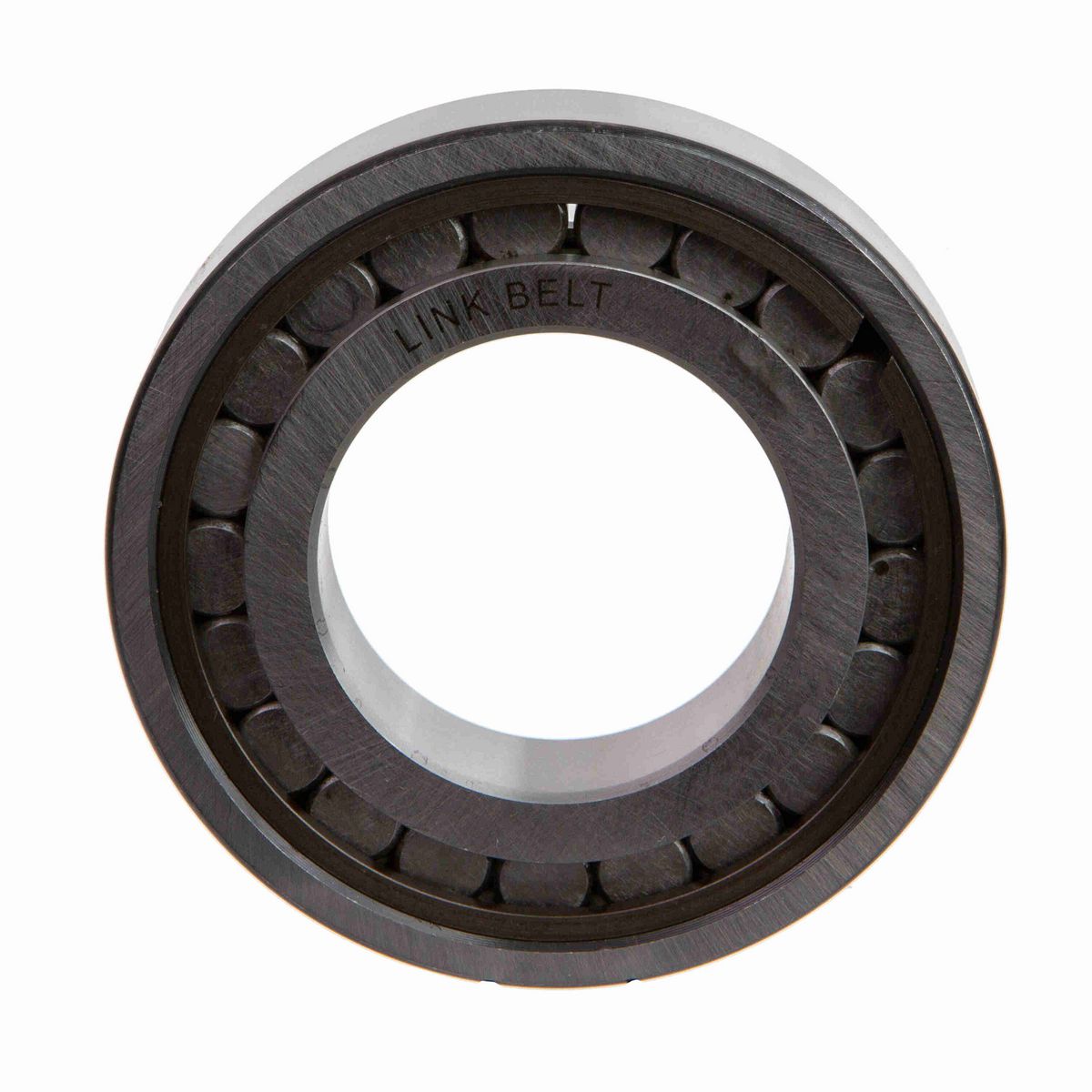

• 25 mm Cylindrical Roller Bearing with double rib inner ring, 2 retaining rings in outer ring and no retainer - full complement

Dimensions

Bore Size (mm)	25 mm
Outside Diameter (mm)	52 mm

Technical Specifications

Bearing Width (mm)	15 mm
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	44.7 mm
Inner Ring and Roller Assembly Over Roller Diameter (mm)	44.82 mm
Co Static Load Rating	CALL ENG lb
Outer Ring Raceway Inside Diameter (mm)	44.85 mm
Vibration Frequency Inner Ring Defect	CALL ENG cps
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	32 mm
Mounted Clearance	SEE DESCRIPTION
Series Weight	Light (2)
Bore Type	Straight
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	30.5 mm
Product	Series 1200 Unmounted Bearings
Vibration Frequency Outer Ring Defect	CALL ENG cps
Basic Bearing Number	1205
Outer Ring Rib Inside Diameter (mm)	42.95 mm
Ring Width Series	Narrow (1)
Retainer Type	SEE DESCRIPTION
Inner Ring Bore Radius (mm)	1.02 mm
Inner Ring Rib Outside Diameter (mm)	34.32 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Inner Ring Raceway Outside Diameter (mm)	32.17 mm
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring Type	Outer Ring With Two Retaining Rings in I.D. (T)
C Dynamic Load Rating	CALL ENG lb
Series	Unmounted Bearings
Maximum Speed (RPM)	CALL ENG rpm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	47 mm
Inner Ring Type	Double Rib (U)
Outer Ring and Roller Assembly Under Roller Diameter (mm)	32.2 mm
Shaft Locking	DIRECT SHAFT MOUNT
Rolling Element	Cylindrical

General Specifications

UPC	662327056766
Weight	0.34 LB
HTC	8482500000
Country of Origin	Mexico
