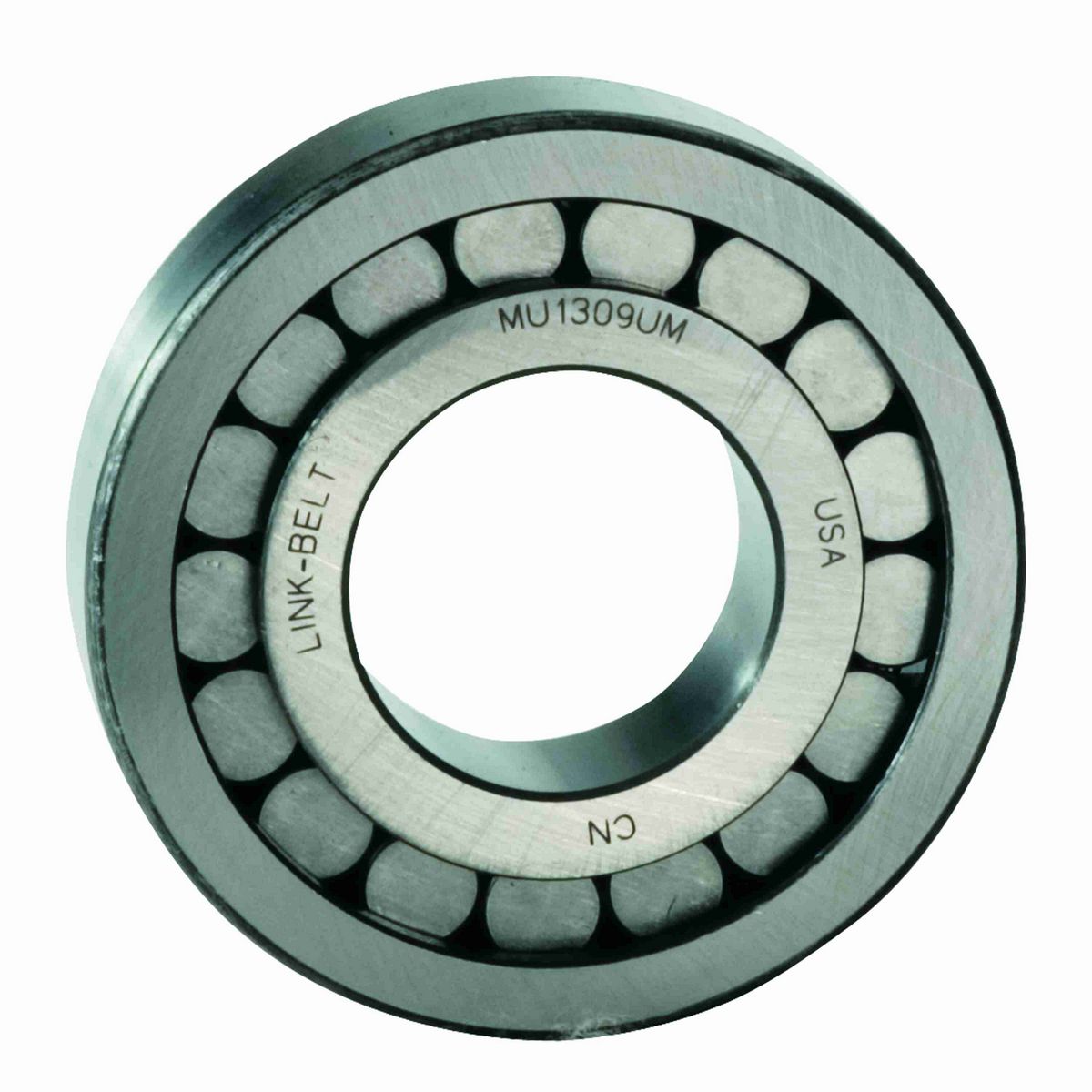

• 35 mm High Capacity Cylindrical Roller Bearing with double rib inner ring, single rib and 1 retaining ring in outer ring and no retainer - full complement

Dimensions

Outside Diameter (mm)	80 mm
Bore Size (mm)	35 mm

Technical Specifications

Series	Unmounted Bearings
Outer Ring Raceway Inside Diameter (mm)	67.94 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	43.7 mm
Outer Ring and Roller Assembly Under Roller Diameter (mm)	44.01 mm
Bearing Width (mm)	21 mm
Inner Ring Raceway Outside Diameter (mm)	46.84 mm
Inner Ring Bore Radius (mm)	1.52 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	71.4 mm
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Mounted Clearance	SEE DESCRIPTION
Bore Type	Straight
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	46.7 mm
Product	Series 1300 Unmounted Bearings High Capacity
Maximum Speed (RPM)	CALL ENG rpm
Series Weight	Medium (3)
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	67.8 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Vibration Frequency Roller Spin	CALL ENG cps
Ring Width Series	Narrow (1)
Retainer Type	SEE DESCRIPTION
Rolling Element	Cylindrical
Inner Ring and Roller Assembly Over Roller Diameter (mm)	62.43 mm
C Dynamic Load Rating	CALL ENG lb
Inner Ring Type	Double Rib (U)
Co Static Load Rating	CALL ENG lb
Vibration Frequency Fundamental Train	CALL ENG cps
Vibration Frequency Inner Ring Defect	CALL ENG cps
Basic Bearing Number	1307
Outer Ring Rib Inside Diameter (mm)	64.46 mm
Shaft Locking	DIRECT SHAFT MOUNT
Inner Ring Rib Outside Diameter (mm)	50.67 mm

General Specifications

UPC	662327654481
Weight	1.14 LB
HTC	8482500000
Country of Origin	Mexico
