• Consult Application Engineering

Dimensions

Outside Diameter (mm)	80 mm
Bore Size (mm)	35 mm

Technical Specifications

Bearing Width (mm)	21 mm

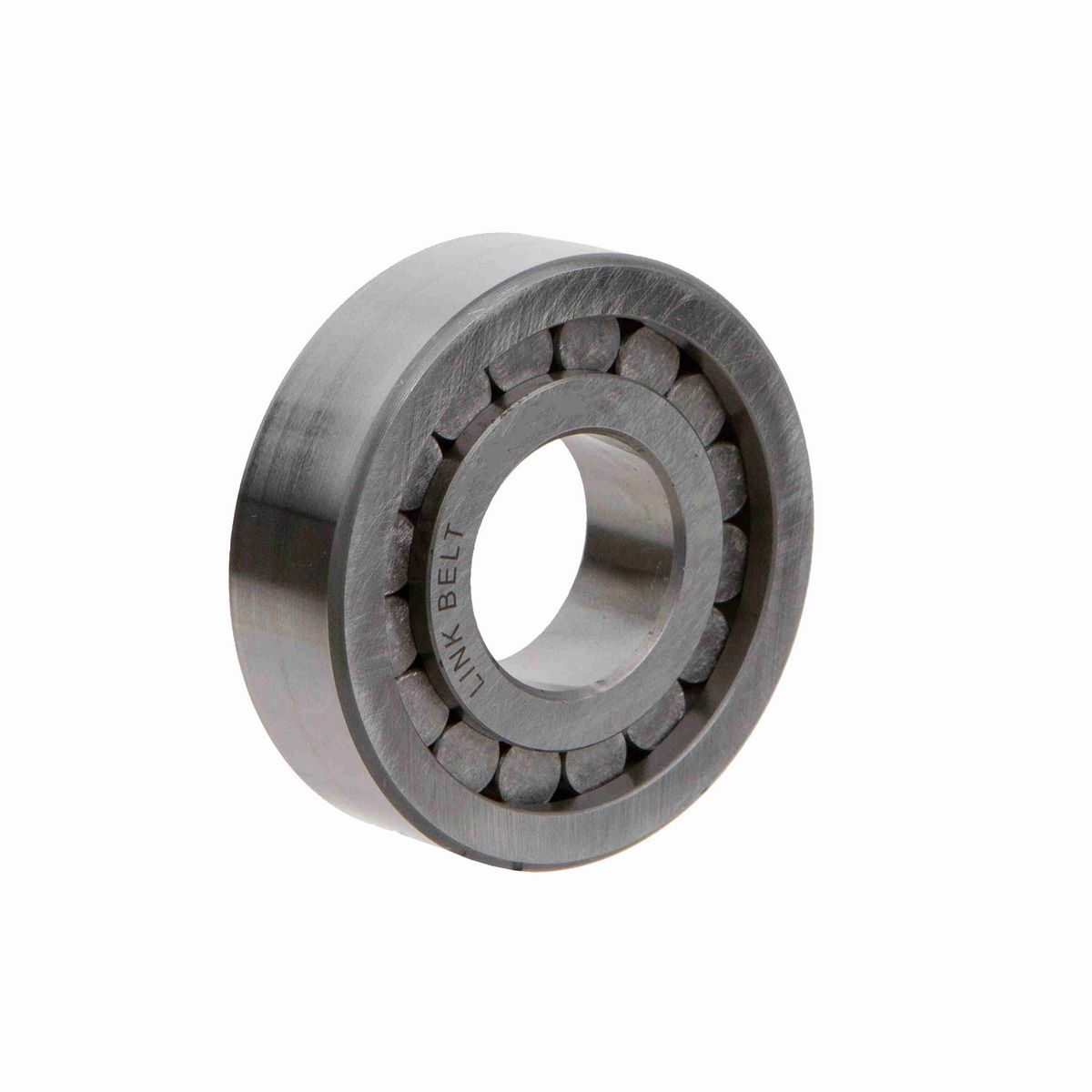

Series	Unmounted Bearings
Inner Ring Type	Double Rib (U)
Inner Ring Rib Outside Diameter (mm)	50.67 mm
Housing Shoulder Diameter (Plain Outer Ring) [Max] (mm)	71.4 mm
Outer Ring Rib Inside Diameter (mm)	64.46 mm
Product	Series 1300 Unmounted Bearings Next Smaller Bearing Bore Size
Ring Width Series	Narrow (1)
Outer Ring Type	Single Rib Outer Ring One Retaining Ring in I.D. (U)
Maximum Speed (RPM)	CALL ENG rpm
C Dynamic Load Rating	CALL ENG lb
Inner Ring and Roller Assembly Over Roller Diameter (mm)	62.43 mm
Mounted Clearance	SEE DESCRIPTION
Rolling Element	Cylindrical
Shaft Shoulder Diameter (Ribbed Inner Ring) [Min] (mm)	46.7 mm
Inner Ring Bore Radius (mm)	1.52 mm
Shaft Shoulder Diameter (Plain Inner Ring) [Min] (mm)	43.7 mm
Bore Type	Straight
Inner Ring Raceway Outside Diameter (mm)	46.84 mm
Co Static Load Rating	CALL ENG lb
Retainer Type	SEE DESCRIPTION
Vibration Frequency Roller Spin	CALL ENG cps
Outer Ring and Roller Assembly Under Roller Diameter (mm)	44.01 mm
Vibration Frequency Fundamental Train	CALL ENG cps
Housing Shoulder Diameter (Ribbed Outer Ring) [Max] (mm)	67.8 mm
Vibration Frequency Outer Ring Defect	CALL ENG cps
Series Weight	Medium (3)
Vibration Frequency Inner Ring Defect	CALL ENG cps
Outer Ring Raceway Inside Diameter (mm)	67.94 mm
Basic Bearing Number	1307

General Specifications

UPC	662327957780
Weight	1.27 LB
HTC	8482500000
Country of Origin	Mexico
