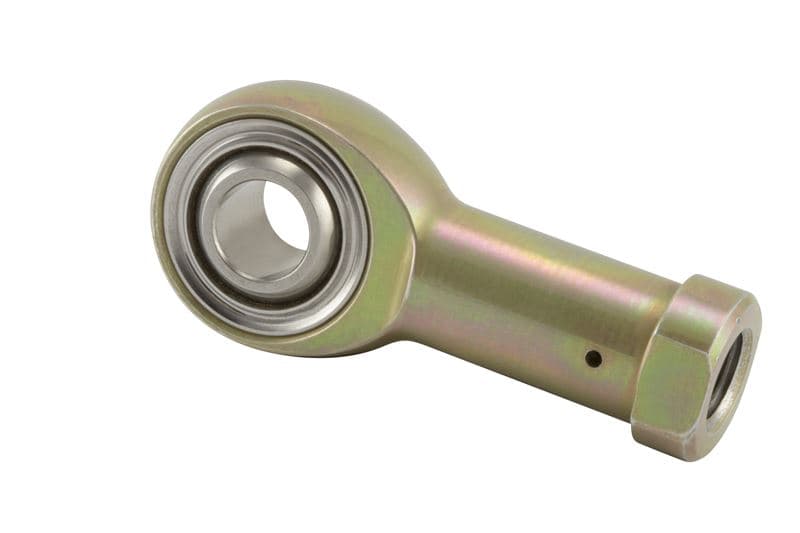

Шарнирный подшипник RBC Heim FE FE3

Name: Шарнирный подшипник RBC Heim FE FE3
Brand: RBC
SKU: Heim Series FE FE3

Артикул:Heim Series FE FE3

Категория:Шарнирные подшипники и наконечники тяг

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Specifications

Характеристики

Industry Standards/Certifications	SAE-AS81820, SAE-AS81935, SAE-AMS-QQ-P-416 Type 1 Class 2, SAE-AMS-H-6875, SAE-AMS-H-7199, ASTM-E-1444
Тип	Female Spherical Plain Rod End
Исполнение	Self-Lubricating
Серия	Heim®
Ball Material	440C Stainless Steel
Материал корпуса	4340 Alloy Steel
Insert Material	17-4 PH Heat Treated, PTFE
Finish	Steel
Тип подшипника	Self-Lubricating
Lubrication Type	Self-Lubricatable
Thread Type	UNJF-3B
Performance	Military
Thread Handedness	Right-Handed
Operating Temperature [Max]	250 ºF
Static Radial Load	2360 lbf
Axial Static Load Rating	1000 lbf
Масса	36 г
Applications	Control Linkages
Additional Product Information 1	RBC Rod End Bearing manufactured by RBC Bearings. ~~RBC Bearings manufactures highly engineered precision bearings, components and essential systems for the industrial, defense and aerospace industries. Founded in 1919, and now a publicly-traded company (NYSE: RBC), RBC currently has 52 facilities in 10 countries (34 in the USA), of which 37 are manufacturing facilities.
Additional Product Information 2	Self-lubricating for applications where relubrication is not practical or desirable. ~Utilizes cartridge type design for the optimum selection of materials for ball, race and rod end body. ~Military specification rod end approved to SAE-AS81935 (formerly MIL-B-81820) and from -100 F to +350 F.
Размеры
Отверстие	0.19 in
Ball Width	0.437 in
Housing Width	0.337 in
Head Diameter	0.806 in
Length to Center of Ball	1.375 in
Thread Length	0.750 in
Thread Size	.3125-24
Ball Diameter	0.531 in
Width Across Flats	0.437 in
Total Height	1.778 in
Misalignment Angle	6.5 º
Center Line Length	1.562 in
