Главная/Корпусные подшипниковые узлы/Подшипниковый узел RBC Nice 6900 N6908TNTG18

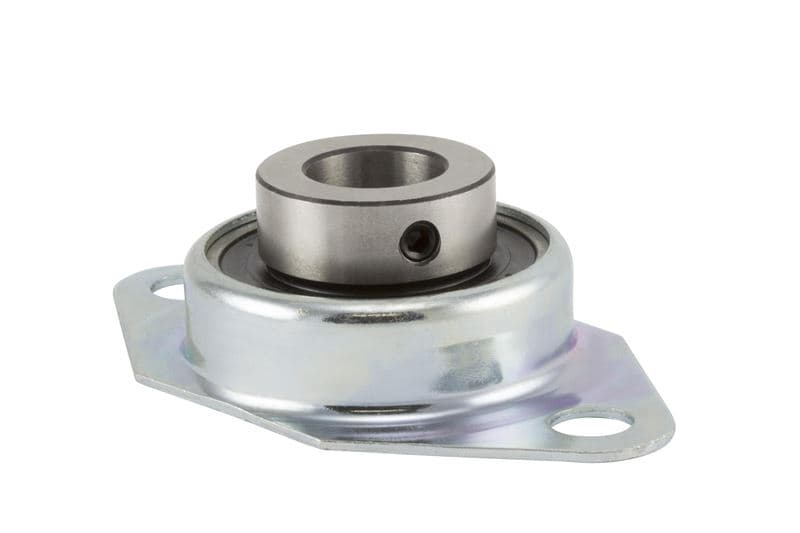

Подшипниковый узел RBC Nice 6900 N6908TNTG18

Name: Подшипниковый узел RBC Nice 6900 N6908TNTG18
Brand: RBC
SKU: Nice 6900 Series N6908TNTG18

Артикул:Nice 6900 Series N6908TNTG18

Категория:Корпусные подшипниковые узлы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Specifications

Характеристики

Тип	Sealed
Исполнение	Flanged
Серия	Nice®
Тип уплотнения	Rubber
Seal Material	Rubber
Материал корпуса	Pressed Steel
Insert Material	52100 Bearing Quality Steel
Finish	Chrome Steel
Industry Focus	Textile Machinery, Agrucultural Machinery, pulleys, idlers, Material Handling Equipment
Bolt Size	0.4375
Тип подшипника	Ball Bearing
Locking Device	Set Screw
Performance	Medium Duty
Mounting Type	Flanged
Номер подшипника	N6908BTNTG18
Expansion Type	Non-Expansion
Форма отверстия	Round
Includes	Two Set Screws & Flanged Housing
End Style	Sealed
Lubrication Type	Non-Relubricable
Speed [Max]	3000 об/мин
Operating Temperature [Max]	300 ºF
Dynamic Load Rating (C)	1610 lbf
Static Load Rating (Co)	1010 lbf
Масса	159 г
Additional Product Information 1	RBC Nice Ball Bearing manufactured by RBC Bearings. ~~RBC Bearings manufactures highly engineered precision bearings, components and essential systems for the industrial, defense and aerospace industries. Founded in 1919, and now a publicly-traded company (NYSE: RBC), RBC currently has 52 facilities in 10 countries (34 in the USA), of which 37 are manufacturing facilities.
Additional Product Information 2	Bearing manufactured with flanged housing to aid in installation. ~Pregreased with metered Shell Alvania #2 grease. ~Suitable for medium loads and moderate speeds. ~Extended inner ring with 2 set screws for securing a shaft. ~Although not the self-aligning type, this bearing will accommodate a limited amount of angular misalignment.
Размеры
Отверстие	0.50 in
Outside Diameter (D)	1.63 in
Total Length	3.75 in
Width (B)	3.7500 in
Total Height	1.8750 in
Inside Ring Width	1 in
Bolt Hole Spacing	2.875 in
Base Thickness	0.438 in
Mounting Hole Size	0.4375
Housing Width	1.875 in
Flange Thickness	0.062 in
Base Width	1.0000 in
Insert Bearing Outside Diameter	0.500 in
Flange Outer Diameter	3.7500 in
Shaft Diameter	0.500 in
Размер вала	0.5000 in
