Муфта TIMKEN 68514461106

Name: Муфта TIMKEN 68514461106
Brand: TIMKEN
SKU: 68514461106

Артикул:68514461106

Категория:Муфты, тормоза и обгонные механизмы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider. Four types of spiders are available for the CJ Series.

Notes

Характеристики

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Maximum bore may be achieved through the use of a shallow keyway.
Характеристики
Description	CJ24/32B-HUB-PM-28MMH7-8X3.3MMKW
Hub Style	B
Тип	Curved Jaw Couplings
Материал	Powder Metal
Масса	413 г
Исполнение	Bored
Color	Metallic
Coupling Type	Jaw

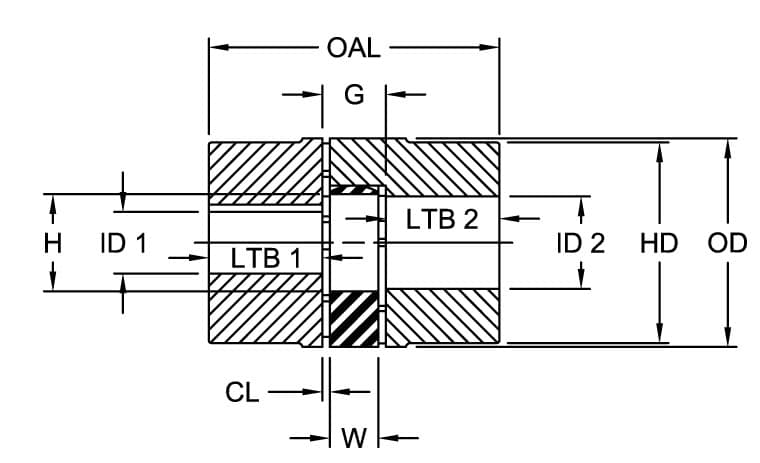

Dimensional Data
Диаметр отверстия	28.00 mm
Coupling Size	24/32
Set Screw Size	10-24
Set Screw Style Coupling Location Size (Dimension SL)	0.390 in
Keyway Size	8 X 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.180 in
Наружный диаметр	2.200 in
Overall Coupling Length	1.800 in
Spider Inside Diameter	1.060 in
Spider Outside Diameter	2.160 in
Spider Thickness (Dimension W)	0.550 in
Min. Bore (Dimensions ID1/ID2)	0.870 in
Max. Bore (Dimensions ID1/ID2)	1.25 in
Dimension G	0.700 in
Dimension HD	2.200 in
Distance between Spider and Hub Face (Dimension CL)	0.080 in
Cubic inches	8.71200 in³
Performance Data
Normal Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-40 to 212 ºF
Max. Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-50 to 248 ºF
Nominal Torque (with 92 Shore A spider)	310.00 in·lb
Max Torque (with 92 Shore A spider)	620.00 in·lb
Speed	10600.00 об/мин
Angular Displacement	0.040 in

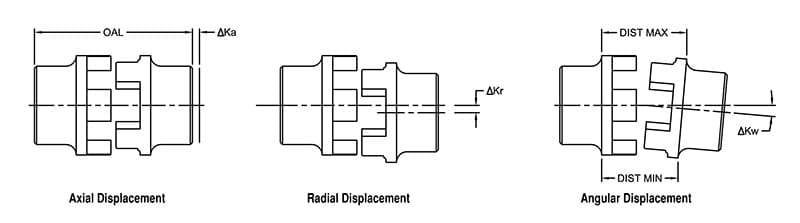

Max. Angular Displacement (∆ Ka), n=1500 [1/min]	0.90 º
Max. Axial Displacement (∆ Ka)	0.0550 in
Max. Radial Displacement (∆ Kr)	0.0090 in
The Curved Jaw Design
The Curved Jaw Design	Three piece design that is easy to assemble
Elastomer Characteristic
Elastomer Characteristic	Four types of spiders are available for the CJ Series of couplings
