Гидрокомпонент TIMKEN 84527103151

Name: Гидрокомпонент TIMKEN 84527103151
Brand: TIMKEN
SKU: 84527103151

Артикул:84527103151

Категория:Гидравлика

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

The BNZ Series of water - oil coolers provide an efficient way to cool hydraulic fluid utilizing shell and tube technology. The design consists of an outer housing shell and a tube / fin bundle known as a “stack”, which fits inside the shell. Hydraulic fluid to be cooled is circulated through the housing shell and passes across the cooling fins which transfers the heat to the cooling tubes in the stack. Cooling fluid, being typically water or water-glycol, flows through the cooling tubes running through the stack to carry the absorbed heat away. This rugged design offers high heat removal in a compact package. A large variety of cooling capacity sizes, port options and material choices are available to tailor the optimum cooler to meet specific application needs. For more application information, refer to the “Application Guidelines” section.

Specifications

Характеристики

Description	BNZ-60-131-2-S-OIL COOLER
Серия	BNZ 60-131
Model	2-Pass
Тип	Temperature Control Unit
Max. Operating Pressure - Shell Side	580.00 psi
Исполнение	Shell & Tube Technology
Application	To cool hydraulic fluid utilizing shell and tube technology
Oil Port	SAE O-Ring
Масса	3.58 кг
Surface Area	3.60 ft²
Tube Material	Copper
Shell, Guide Plate, Brackets & Bypass Valve Material	Steel
End Cover Material	Cast Iron GG25
Fin Material	Aluminum
Tube Sheet Material	Steel
Gasket Material	Flat Gaskets C4400
End Cap Material	Cast Iron (Stainless Steel Optional)
Port Housing Material	Cast Iron
Mounting Bracket Material	Steel (May Be Rotated in 90 Degree Increments)
Shell Tube Material	Welded Steel
Gasket Size	C440 (Compatible with Fluids)
Drain Plug Material	Steel

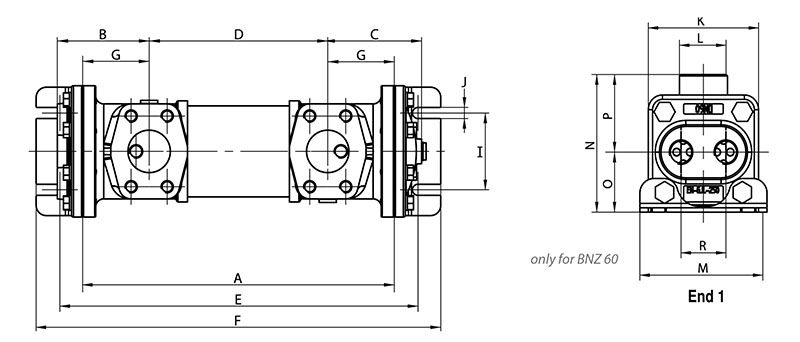

Dimensional Data
Oil Port Size	3/4-16 SAE O-Ring (-8)
Drain Plug (S)	G 1/8
Dimension A1	5.160 in
Dimension B	2.560 in
Dimension C	2.560 in
Dimension D	2.170 in
Dimension E	7.130 in
Dimension F	8.390 in
Dimension G	1.500 in
Dimension I	2.500 in
Dimension J	0.350 in
Dimension K	3.080 in
Dimension L	1.340 in
Dimension M	3.540 in
Dimension N	3.860 in
Dimension O	1.770 in
Dimension P	2.090 in
Dimension R	1.250 in
Dimension U	2.560 in
Cubic inches	114.64432 in³
Performance Data
Max. Operating Pressure - Tube Side	230.00 psi
Temperature	200.00 ºF
Max. Flow Rate	20.00 gal/min
BNZ Cooler Stacks
BNZ Cooler Stacks	Tubes with aluminum fins provide extended cooler surface for additional cooler capacity in a compact package
Optional Materials
Optional Materials	Tubes: Copper Nickel / Stainless Steel 1.4404 (AISI316L)
Port Options
Port Options	SAE
Features
Features	Compact size – "Shell and Tube Design"
Notes
Notes	Production tolerances for above dimensions above may vary by up to +/- .079 in (2mm).
