Гидрокомпонент TIMKEN 84527105225

Name: Гидрокомпонент TIMKEN 84527105225
Brand: TIMKEN
SKU: 84527105225

Артикул:84527105225

Категория:Гидравлика

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Vertical Pump/Motor Mounts

Lovejoy Hydraulics Vertical pump/motor mounts are a cost-effective, space-saving solution that allows mounting the pump through the tank lid top or from underneath. The pump and mount assembly is enclosed inside the tank, which is a safe, quiet, compact way of mounting the pump/motor assembly. Vertical mounts are available in NEMA C-Face motor frame sizes from 56C to 256TC for most SAE and Metric 2 and 4 bolt pump flanges. Two mounting options are available to give additional flexibility in Vertical Power Unit Design.Included HardwareA Motor Mount kit and Pump Mount kit is included. Each includes all the required bolts and washers to mount the pump and motor to the pump/motor mount. The kit does NOT contain hardware required to mount the pump/motor mount to the tank lid top.

Specifications

Характеристики

Description	BHN-182-04-4F17-V3-L=6.81
Pump Flange	USA4F17
Frame Size	182TC - 256TC
Тип	Pump Mounting Bracket
Материал	Aluminum Alloy
Application	Pump / Motor Mounts
Contents	Bracket Only
Type - 4 Bolts (Dimension XBF4)	5/16-18
# of Bolts	4 Bolts
Масса	3.95 кг
Vertical Installation #	3
Mount Type	BHN-182 04-4F17 V3 L=6.81
Mounting Style	Vertical
Исполнение	BHN

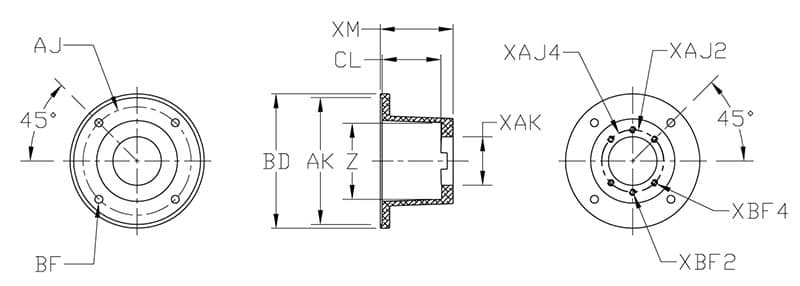

Dimensional Data
XM Face to Face	6.810 in
Outside Diameter BD	11.500 in
Dimension CL	6.060 in
Pilot Size (Dimension XAK)	1.782 in
Inside Diameter	5.000 in
Circle Size - 4 Bolts (Dimension XAJ4)	2.840 in
Motor Bolt Circle Diameter (Dimension AJ	7.25 in
Motor Bolt Hole Diameter (Dimension BF)	17/32 in
Motor Pilot Size (Dimension AK)	8.501 in
Flange Bolt Circle (Dimension XT)	10.250 in
Flange Bolt Hole (Dimension T)	17/32 in
Dimension Z	5.000 in
Cubic inches	900.62250 in³
Performance Data
Recommended Torque, Grade 5 - Coarse	82.00 ft·lb
Recommended Torque, Grade 5 - Fine	91.00 ft·lb
Recommended Torque, Grade 8 - Coarse	115.00 ft·lb
Recommended Torque, Grade 8 - Fine	129.00 ft·lb
