RunRight® Metric Tensioners - Type RT F (Front Mount) Timken 68514485030
Описание
RunRight® RT F tensioners are designed for front mounting applications where access to back side or rear mounting surfaces is not possible. A single threaded hole is required to mount these tensioners. These tensioners include a special mounting screw and spacer bushing. They are manufactured with powder metal or cast iron housings, cast iron arms and inner square, come with the standard Tensys™ 10 rubber inserts, and can be used for applications operating within a -40° to 180°F (-40° to 80°C) temperature range.
Specifications
Характеристики
| Description | RT-F-45-TENSNR MM |
| Тип | Chain/Belt Tensioner |
| Element Material | Natural Rubber |
| Исполнение | Elastomeric |
| Color | Black |

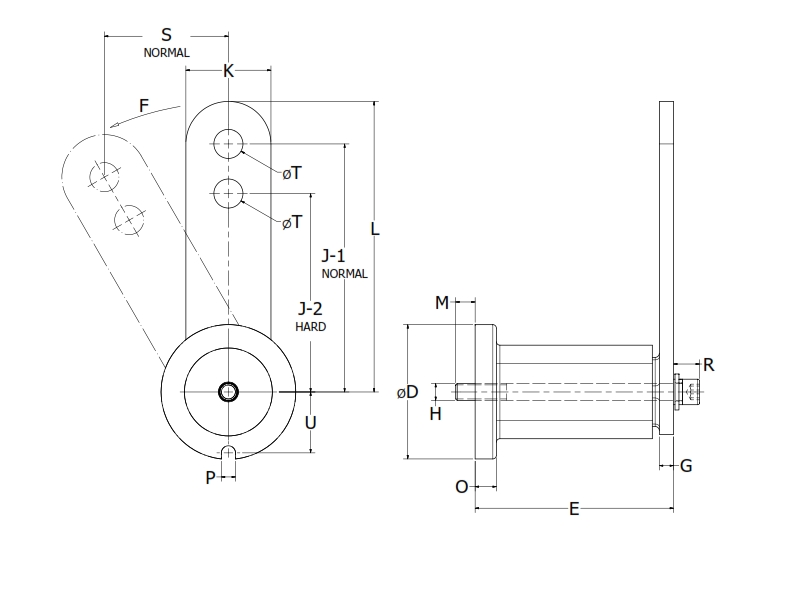

| Dimensional Data | |
| Tensioner | RT F45-M |
| Mounting Bolt Size | M16 |
| Outside Diameter (Dim D) | 115 mm |
| Overall Length (Dim E) | 200 mm |
| Dimension T | 20.5 mm |
| Dimension L | 260 mm |
| Dimension J-1 | 225 mm |
| Dimension J-2 | 180 mm |
| Dimension M | 32 mm |
| Dimension R | 24 mm |
| Dimension G | 12 mm |
| Dimension O | 18 mm |
| Dimension P | 12.5 mm |
| Dimension K | 70 mm |
| Performance Data | |
| Normal Temperature Range | -40 to 180 ºC |
| Mounting Bolt Torque | 410 N·m |
| Force at 20° Angle of Pretension (Normal Force Level) (Dimension F) | 1300 N |
| Distance at 20° Angle of Pretension (Normal Force Level) (Dimension S) | 78 mm |
| Notes | |
| Notes | The recommended angle of pretension is 20°. This provides the tensioner a maximum capability to absorb vibrations and shock loads, while also maintaining a range of motion to address the system’s belt or chain stretch. |
