F Type Flex Hubs with Keyway - Inch (Imperial) Bore Timken 69790411881
Описание
F Type Flex Hubs with Keyway - Inch (Imperial) Bores
For use with F (Flex-Flex) or FFR (Flex-Rigid) couplings.
The F Type coupling consists of two flex hubs, two sleeves and one accessory kit. Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5. The F Type has a max angular misalignment of 3.0 degrees (1.5 degrees per gear mesh).
The FFR Type coupling consists of one flex hub, one rigid hub, one sleeve, and one accessory kit. Exposed bolts (E) are the standard design for this coupling, though shrouded bolt (S) designs are available upon request through size 5.5. The FFR Type has a max angular misalignment of 1.5 degrees (1.5 degrees per gear mesh).
For larger torques, consider the FHD Type gear coupling in sizes 10 through 30.
Notes
Характеристики
| Disclaimer | Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details. |
| Характеристики | |
| Description | F-3.5-HUB-2.9375/2.9390-3/4X3/8KW |
| Тип | Gear Coupling Hubs |
| Hub Material | AISI 1045 |
| Исполнение | Bored |
| Color | Metallic |
| Coupling Type | Gear |
| Масса | 10.12 кг |
| Dimensional Data | |
| Диаметр отверстия | 2 15/16 in |
| Размер | 3 1/2 |
| Set Screw Style Coupling Size (Dimension T) | No Setscrew |
| Keyway Size (W x D) | 3/4 x 3/8 in |

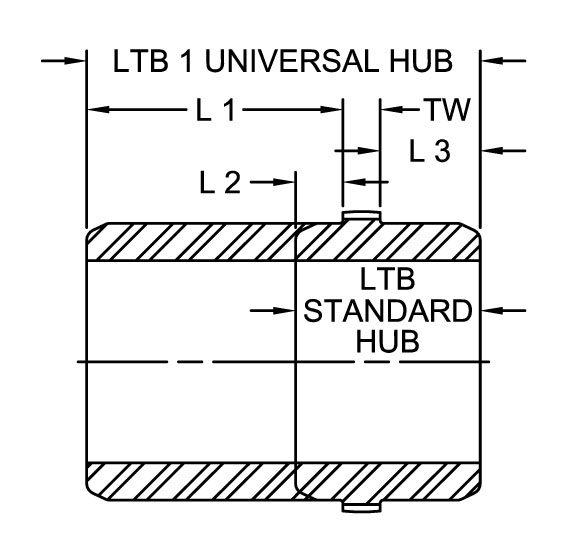

| Length thru Bore | 4.190 in |
| Depth | 4.190 in |
| Max. Bore (Dimensions ID1/ID2) | 4.625 in |
| Dimension HD | 6.5 in |
| Cubic inches | 177.02750 in³ |
| Performance Data | |
| Nominal Torque | 151200 in·lb |
| Max Speed (Unbalanced) | 3500 об/мин |
