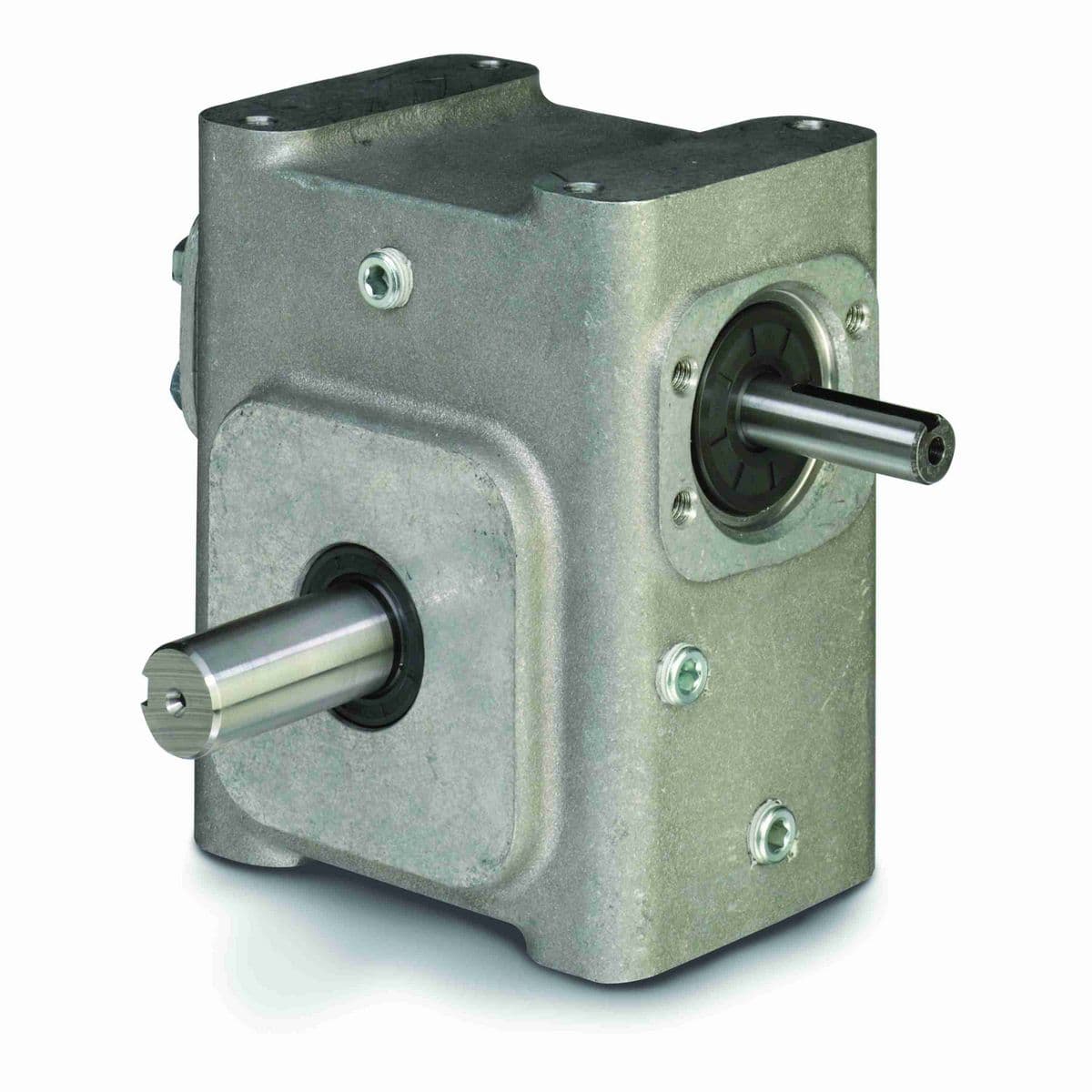

Редуктор Grove Gear EL-B821-15-D

Name: Редуктор Grove Gear EL-B821-15-D
Brand: Grove Gear
SKU: EL-B821-15-D

Артикул:EL-B821-15-D

Категория:Редукторы и мотор-редукторы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Aluminum housing provides superior resistances to corrosion, even in harsh environments.Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant – USDA Class H1 approved.Large oil capacity provides positive splash lubrication and superior cooling capability.Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.The unique quill seal guard protects the input seal from damage during motor installation.All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.Mounting dimensions are interchangeable with most industry standard reducers.

Характеристики

Размеры
I	3.4 in
B	5.75
G	1.63
C	6.88 in
U	0.625 in
J	4.13 in
O	2.29 in
K	2.06 in
L	4.82 in
T	1
Межцентровое расстояние	2.06 in
F	3.25
O*	2.09 in
H-Tap size	3/8-16 in
A	3.91
M	1.76
N	4.68
TAP Depth	0.87 in
D	2.63
O*	2.09
Технические характеристики
Output Style	D
Assembly	B-D
Gear Type	Worm
Input Keyway	3/16 X 1.38 in
Ratio Range	15:1
Input Style	Solid Shaft
Межцентровое расстояние	2.06
Shaft Seal Material	Viton
Ratio	15:1
Input HP @ 1750 RPM	1.887
Серия	EL Series - Aluminum Worm Gear Reducers
Input Diameter (in)	0.625 in
Reducer Style	Worm - Right Angle
Output HP	1.661
No. of Gear Reductions	Single
Output Key	1/4 x 1.44
Series Style	EL-B-D
Model Code	B821
Overhung Load	1,125
Сервисный коэффициент	1
Продуктовая линейка	EL Series - Aluminum Worm Gear Reducers
Тип изделия	Right Angle
Input HP	1.887
Output Shaft Assembly Code	D
Output Diameter (in)	1.000 in
Output RPM	116
Mounting Style	Base
Thrust Rating - output shaft	1099
Reducer	Worm - Right Angle
Output Shaft Orientation	LR
Input RPM	1,750
Series Code	EL
Reduction	Single
Output Shaft Direction	Double
Output Shaft	Solid Shaft
Overhung Load Rating (Output Shaft(lb))	1,125 lb
Материал корпуса	Aluminum
Output Torque Rating (in-lb)	897 in/lbs
Общие характеристики
Масса	7.71 кг
