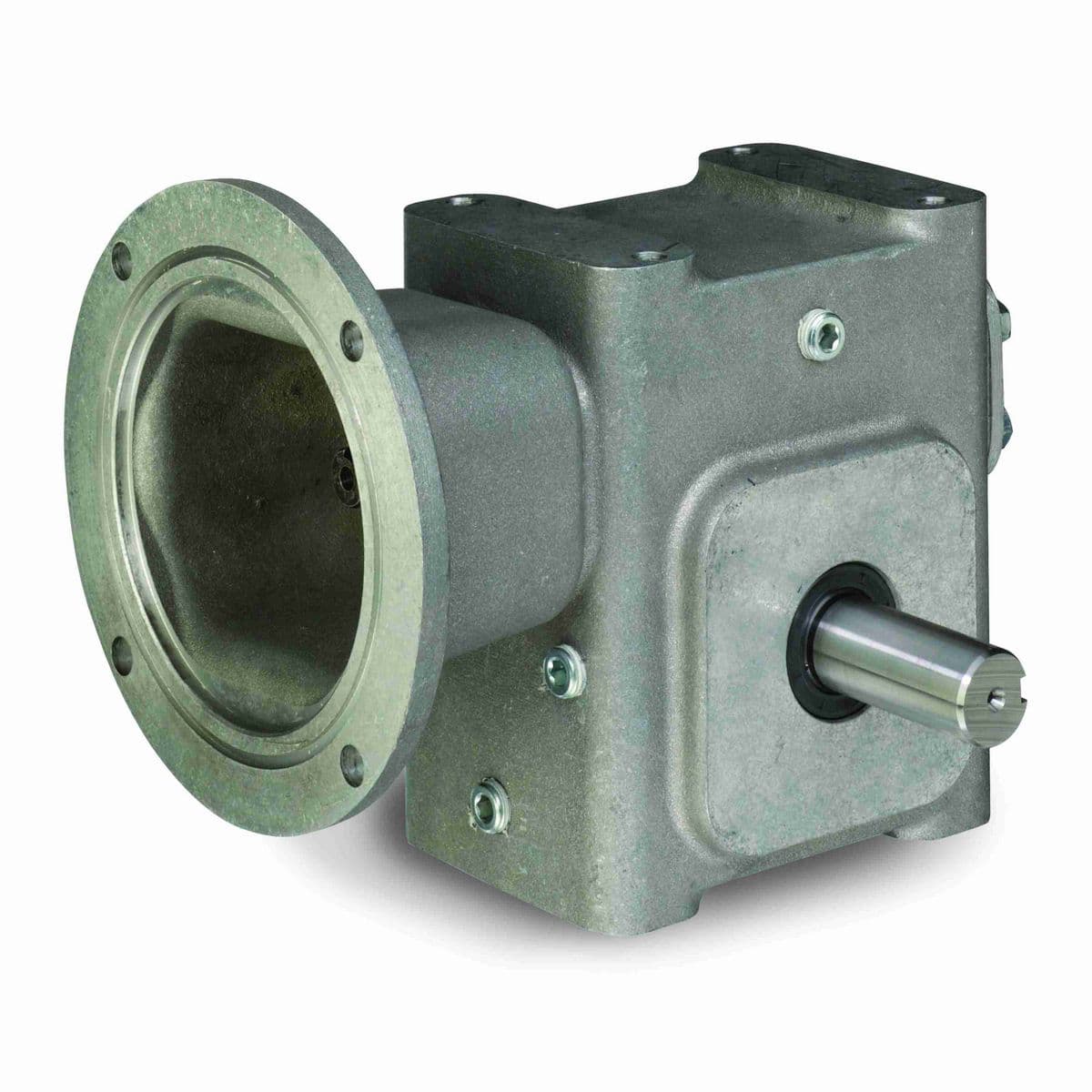

Редуктор Grove Gear EL-BM832-15-R-56

Name: Редуктор Grove Gear EL-BM832-15-R-56
Brand: Grove Gear
SKU: EL-BM832-15-R-56

Артикул:EL-BM832-15-R-56

Категория:Редукторы и мотор-редукторы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Aluminum housing provides superior resistances to corrosion, even in harsh environments.Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant – USDA Class H1 approved.Large oil capacity provides positive splash lubrication and superior cooling capability.Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.The unique quill seal guard protects the input seal from damage during motor installation.All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.Mounting dimensions are interchangeable with most industry standard reducers.

Характеристики

Размеры
BD	6.5
C	10.5 in
I	5 in
F	4.13
G	2.06
U	0.875 in
N	6.62
BE	0.38 in
TAP Depth	1 in
LM	7.86
L1	5.56 in
Межцентровое расстояние	3.25 in
B	8.11
H-Tap size	1/2-13 in
AJ	5.88
A	5.25
D	4
K	3.31 in
T	1.625
AK	4.5
O	3.6 in
J	6.63 in
BF	0.41
Технические характеристики
Series Code	EL
Серия	EL Series - Aluminum Worm Gear Reducers
Межцентровое расстояние	3.25
Frame Size	56C
Сервисный коэффициент	1
Series Style	EL-BM-R
Gear Type	Worm
Input Style	Flexible Coupling Input
Output Shaft Assembly Code	R
Thrust Rating - output shaft	2490
Input Bore (C Face)	0.625
Output Style	R
Output RPM	116
Input RPM	1,750
Продуктовая линейка	EL Series - Aluminum Worm Gear Reducers
Input Keyway (C Face)	3/16 x 3/32
No. of Gear Reductions	Single
Ratio Range	15:1
Ratio	15:1
Model Code	BM832
Input HP	6.127
Shaft Seal Material	Viton
Output HP	5.516
Mounting Style	Base
Output Shaft Orientation	R
Reducer Style	Worm - Right Angle
Reducer	Worm - Right Angle
Output Diameter (in)	1.625 in
Input Keyway	3/16 X 0.500 in
Output Key	3/8 x 2.25
Assembly	BM-R
Тип изделия	Right Angle
Motor Frame Size	56
Input Diameter (in)	0.875 in
Input HP @ 1750 RPM	6.127
Overhung Load	2,170
Reduction	Single
Output Shaft Direction	Right
Overhung Load Rating (Output Shaft(lb))	2,170 lb
Материал корпуса	Aluminum
Output Shaft	Solid Shaft
Output Torque Rating (in-lb)	2980 in/lbs
Общие характеристики
Масса	22.68 кг
