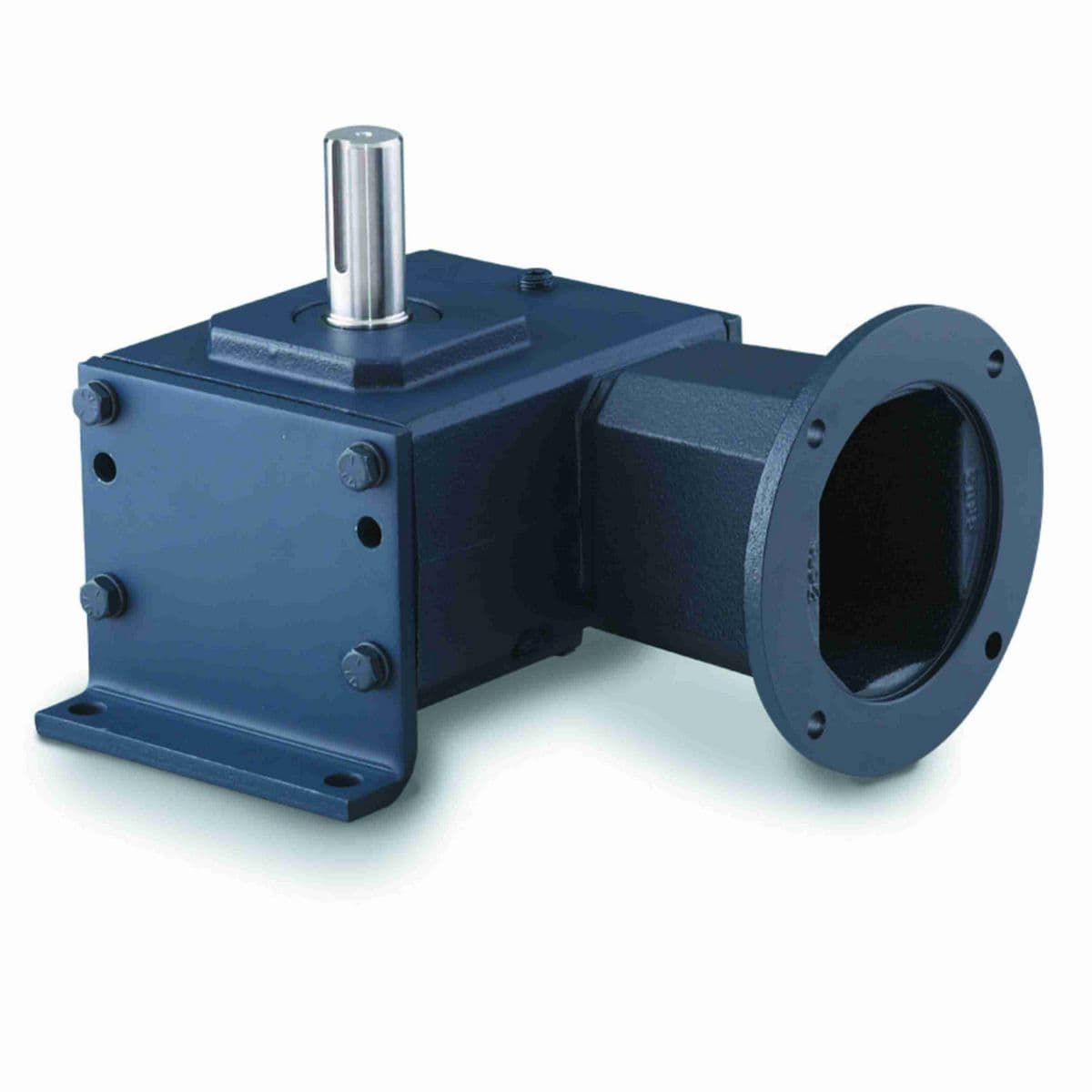

Редуктор Grove Gear GRL-VLM826-60-LD-56

Name: Редуктор Grove Gear GRL-VLM826-60-LD-56
Brand: Grove Gear
SKU: GRL-VLM826-60-LD-56

Артикул:GRL-VLM826-60-LD-56

Категория:Редукторы и мотор-редукторы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment.Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.Large oil capacity provides positive splash lubrication and superior cooling capability.Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.The unique quill seal guard protects the input seal from damage during motor installation.Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.Mounting dimensions are interchangeable with most industry standard reducers.

Характеристики

Размеры
H	0.56 in
O	2.73 in
B	7
N	5.63
BD	6.5
V	0.38 in
AK	4.5
BF	0.41
LM	8.32
Межцентровое расстояние	2.63 in
T	1.125
F	10.12
I	4.34 in
AJ	5.88
G	6.12
L	6.07 in
J	5.75 in
BE	0.38 in
K	2.88 in
R	2.94 in
DL	3.63
A	11.24
Технические характеристики
Output RPM	29
Frame Size	56C
Output Style	LD
Series Style	GRL-VLM-LD
Reducer Style	Worm - Right Angle
Overhung Load	1,625
Output Shaft Assembly Code	LD
Keyway	3/16 X 3/32
Input RPM	1,750
Series Code	GRL
Output Shaft Orientation	LD
Input Style	C-Face Coupled
No. of Gear Reductions	Single
Output HP	0.835
Тип серии	Cast Iron 800 Worm Gear Reducers
Input HP	1.216
Mounting Style	Vertical Output Shaft, Low Base
Output Key	1/4 X 1.75
Output Diameter (in)	1.125 in
Input Keyway	3/16 X 1.63 in
Ratio Range	60:1
Model Code	VLM826
Ratio	60:1
Серия	GR Series - Ironman Worm Gear Reducers
Продуктовая линейка	GR Series - Ironman Worm Gear Reducers
Reducer	Worm - Right Angle
Motor Frame Size	56C
Input Diameter (in)	0.625 in
Input Keyway (C Face)	3/16 x 3/32
Gear Type	Worm
Тип изделия	Right Angle
Межцентровое расстояние	2.63
Assembly	VLM-LD
Input Bore (C Face)	0.625
Сервисный коэффициент	1
Shaft Seal Material	Viton
Reduction	Single
Output Torque Rating (in-lb)	1805 in/lbs
Материал корпуса	Cast Iron
Output Shaft	Shaft
Общие характеристики
Масса	29.94 кг
