Редуктор Grove Gear NH-B830-15-L

Name: Редуктор Grove Gear NH-B830-15-L
Brand: Grove Gear
SKU: NH-B830-15-L

Артикул:NH-B830-15-L

Категория:Редукторы и мотор-редукторы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Rugged cast iron housings, covers, and flanges provide superior strength and rigidity.Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.Large oil capacity provides positive splash lubrication and superior cooling capability.Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.O-rings on all bearing covers, eliminating gaskets, sealants and leaks.Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles. Tapered roller bearings on output shaft for high overhung and thrust load capacities.The unique quill seal guard protects the input seal from damage during motor installation.Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.

Характеристики

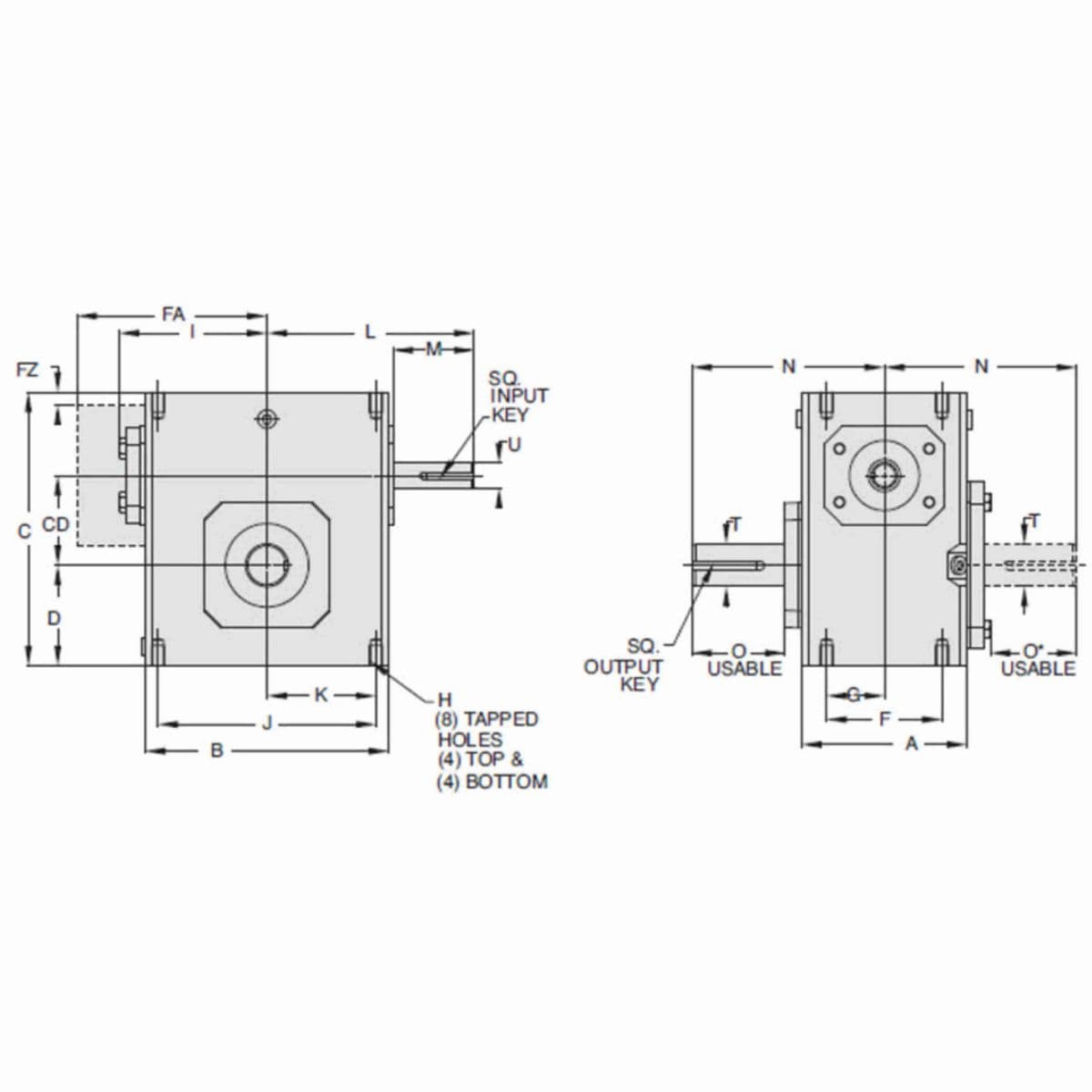

Размеры
G	1.19
O	3.56 in
T	1.25
M	2.38
N	5.77
I	4.84 in
C	8.25 in
A	3.12
TAP Depth	0.75 in
B	6.62
F	2.38
K	2.31 in
H-Tap size	3/8 - 16 UNC in
J	4.63 in
L	6.57 in
Межцентровое расстояние	3 in
D	3.38
U	0.875 in
Технические характеристики
Reducer	Worm - Right Angle
Продуктовая линейка	NH Series - Ironman Narrow Housing Worm Gear Reducers
Mounting Style	Base
Input HP @ 1750 RPM	4.207
Output Key	1/4 x 1.75
Overhung Load	2,170
Series Code	NH
Model Code	B830
Output RPM	116
No. of Gear Reductions	Single
Output Diameter (in)	1.250 in
Межцентровое расстояние	3.00
Input HP	4.843
Assembly	B-L
Output Shaft Orientation	L
Gear Type	Worm
Сервисный коэффициент	1
Shaft Seal Material	Viton
Output Style	L
Thrust Rating - output shaft	2549
Input Diameter (in)	0.875 in
Output HP	4.311
Input Keyway	3/16 X 1.63 in
Ratio	15:1
Reducer Style	Worm - Right Angle
Output Shaft Assembly Code	L
Input RPM	1,750
Input Style	Solid Shaft
Series Style	NH-B-L
Ratio Range	15:1
Серия	NH Series - Ironman Narrow Housing Worm Gear Reducers
Тип изделия	Right Angle
Reduction	Single
Output Shaft Direction	Left
Overhung Load Rating (Output Shaft(lb))	1,950 lb
Материал корпуса	Cast Iron
Output Shaft	Solid Shaft
Output Torque Rating (in-lb)	2026 in/lbs
Общие характеристики
Масса	24.49 кг
