Муфта TIMKEN 68514417979

Name: Муфта TIMKEN 68514417979
Brand: TIMKEN
SKU: 68514417979

Артикул:68514417979

Категория:Муфты, тормоза и обгонные механизмы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

The AL Type coupling consists of two standard AL Type hubs and one spider (find under L Type components, or the AL section for AL150).Unless stated otherwise, hub torque and horsepower ratings assume a SOX(NBR) rubber spider is being used.

Notes

Характеристики

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Lovejoy does not recommend reboring AL hubs.
Характеристики
Description	AL110-HUB-7/8-3/16X3/32KW
Hub Style	1
Coupling Type	Jaw
Материал	Aluminum
Color	Silver
# of Jaws	3
Elastomeric Member	SOX (NBR) Rubber
Масса	522 г
Weight - Solid	953 г
Weight (Complete Coupling w/ Max. Bores)	1.22 кг

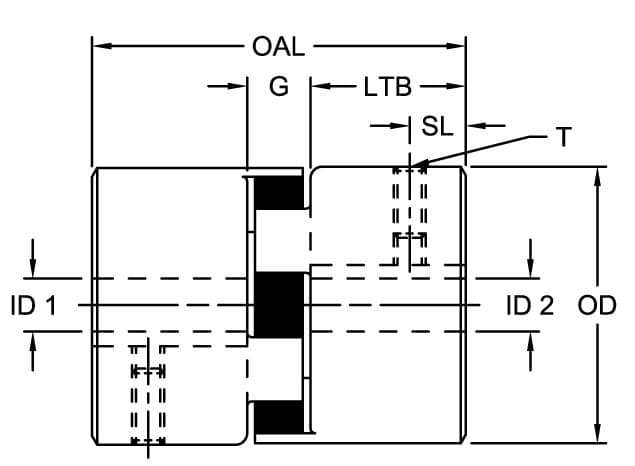

Dimensional Data
Диаметр отверстия	7/8 in
Coupling Size	AL110
Thread (Dimension T)	5/16-18
Keyway Size (W x D)	3/16 x 3/32 in
Length thru Bore	1.690 in
Общая длина	4.25 in
Min. Bore (Dimensions ID1/ID2)	0.625 in
Max. Bore (Dimensions ID1/ID2)	1.625 in
Hub Length	2.56 in
Dimension G	0.870 in
Dimension HD	3.31 in
Dimension SL	0.750 in
Cubic inches	28.04762 in³
Performance Data
Nominal Torque	792.00 in·lb
Max. Speed	5000 об/мин
Moment of Inertia (Solid) WR2	3.531 lb·in²
Rated HP at 100 rpm	1.26 hp
Rated HP at 1,200 rpm	15.12 hp
Rated HP at 1,800 rpm	23.00 hp
Rated HP at 3,600 rpm	45.36 hp
Spider Performance
Spider Performance	Nitrile Butadiene (Buna N) Rubber is a flexible elastomer material that is oil resistant, resembles natural rubber in resilience and elasticity and operates effectively in temperature range of -40° to 212° F (-40° to 100° C). Good resistance to oil. Standard elastomer. (Also applies to SXB Cushions.)
Features
Features	Interchangeable with all hub sizes standard for the L-Line and AL-Line products
