Муфта TIMKEN 68514431057

Name: Муфта TIMKEN 68514431057
Brand: TIMKEN
SKU: 68514431057

Артикул:68514431057

Категория:Муфты, тормоза и обгонные механизмы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

D Type 303 Stainless

Made from 303 stainless steel Ideal for applications with exposure to corrosive chemicals, corrosive atmosphere, or sanitation requirements are a factor Available in sizes: 4, 6, 8, 10 and 12 (Other sizes are quantity dependent) Available in your choice of round, hex, splined, or keyway bore Boot retaining grooves are standard.(Boots are available for purchase separately.) Lubrication is required for optimal wear – boots and lubricant extend universal joint life Contact Lovejoy Engineering if you have specific questions or requirements

Notes

Характеристики

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Static Breaking Torque is not recommended operating torque.
Характеристики
Description	D4-UJ-SS-SOLIDXSOLID
Тип	Universal Joints - D Type
Материал	303 Stainless Steel
Масса	132 г
Исполнение	Unbored
Color	Metallic
Тип отверстия	Solid

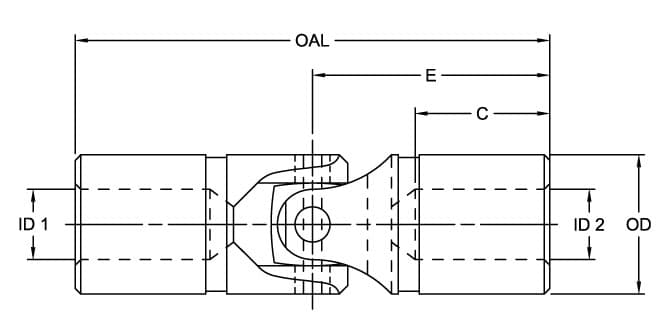

Dimensional Data
Размер	D4
Set Screw Size	No Setscrew
Наружный диаметр	0.750 in
Общая длина	2.680 in
Bore Depth (Dimension C)	0.880 in
Max. Bore - No Keyway (Dim. ID1 & ID2)	0.620 in
Main Pin Height (Dimension E)	1.34 in
Cubic inches	1.50750 in³
Performance Data
Operating Temperature Range	-30 to 212 ºF
Max. Speed	1750.00 об/мин
Static Breaking Torque	512.00 in-lb
Max. Angle Offset	25.00 º
Features
Features	Industry standard
