CJ Series Hubs - Powder Metal, B Style, Metric Bores Timken 68514461151

Name: CJ Series Hubs - Powder Metal, B Style, Metric Bores Timken 68514461151
Brand: TIMKEN
SKU: 68514461151
Availability: PreOrder

Артикул:68514461151

Категория:Муфты, тормоза и обгонные механизмы

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider. Four types of spiders are available for the CJ Series.

Notes

Характеристики

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Maximum bore may be achieved through the use of a shallow keyway.
Характеристики
Description	CJ 14/16B HUB PM 12MM KW
Hub Style	B
Тип	Curved Jaw Couplings
Материал	Powder Metal
Масса	54 г
Исполнение	Bored
Color	Metallic
Тип отверстия	Solid
Coupling Type	Jaw

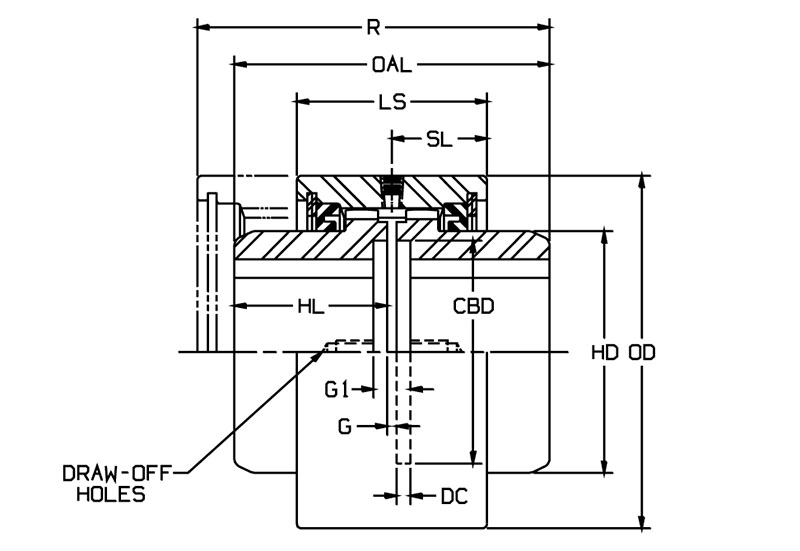

Dimensional Data
Диаметр отверстия	12.00 mm
Coupling Size	14
Set Screw Size	8-32
Set Screw Style Coupling Location Size (Dimension SL)	0.200 in
Keyway Size	4 x 1.8 mm
Length thru Bore (Dimensions LTB1/LTB2)	0.430 in
Наружный диаметр	1.180 in
Overall Coupling Length	0.880 in
Spider Inside Diameter	0.390 in
Spider Outside Diameter	1.180 in
Spider Thickness (Dimension W)	0.390 in
Max. Bore (Dimensions ID1/ID2)	0.63 in
Dimension G	0.510 in
Dimension HD	1.180 in
Distance between Spider and Hub Face (Dimension CL)	0.060 in
Cubic inches	1.22531 in³
Performance Data
Normal Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-40 to 212 ºF
Max. Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-50 to 248 ºF
Nominal Torque (with 92 Shore A spider)	66.00 in·lb
Max Torque (with 92 Shore A spider)	133.00 in·lb
Speed	1900.00 об/мин
Angular Displacement	0.030 in
Max. Angular Displacement (∆ Ka), n=1500 [1/min]	1.20 º
Max. Axial Displacement (∆ Ka)	0.0400 in
Max. Radial Displacement (∆ Kr)	0.0070 in
The Curved Jaw Design
The Curved Jaw Design	Three piece design that is easy to assemble
Elastomer Characteristic
Elastomer Characteristic	Four types of spiders are available for the CJ Series of couplings
