Направляющая REXROTH R155244003

Name: Направляющая REXROTH R155244003
Brand: REXROTH
SKU: R155244003

Артикул:R155244003

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Single nut with flange FEM-E-S, size 40 x 10L x 6\u2006-\u20064

Product Description

Single nut with flange FEM-E-S with standard seal and standard axial clearance
Nominal diameter d0 = 40
Lead P = 10 (left)
Ball diameter Dw = 6
Number of ball track turns i = 4

Rexroth mounting dimensionsWith sealsRexroth connection dimensionsWith sealsWith left-hand version in some casesPreload class: C0, C00, C1, C2, C3Tolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, "Product description"), T5, T7, T9

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	40 x 10L x 6 - 4
Серия	Standard series
Dynamic load capacity C [N]	60000
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	38
Note: maximum permissible speed vmax	See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples)
Operating temperature (min. … max.)	-10 °C ... +80 °C
Storage temperature (min. … max.)	-15 °C ... +80 °C
Direction of lead	Left
Nut type	FEM-E-S single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB4
Масса (кг)	1.56
Static load capacity C0 [N]	86400
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	B
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

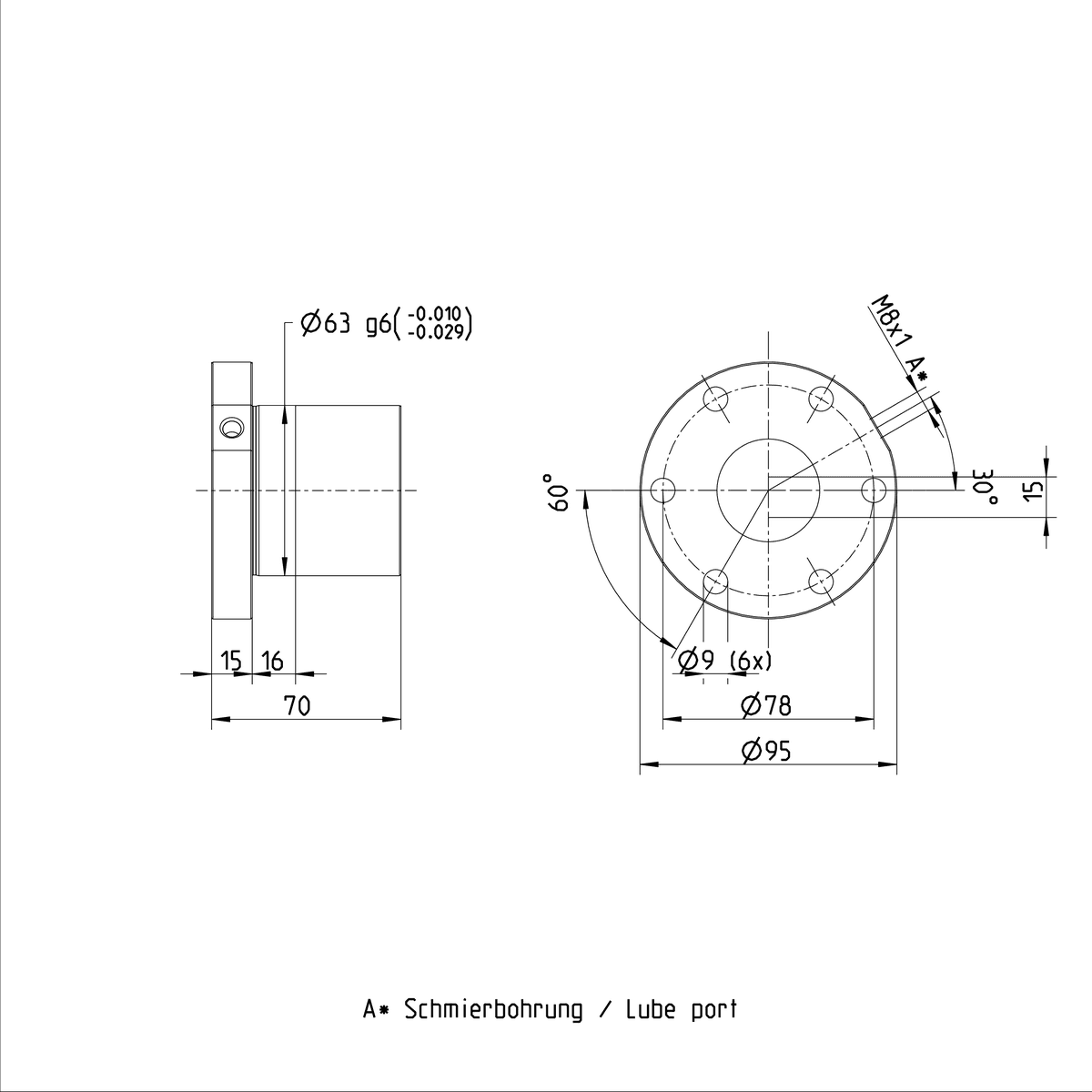

Dimension d1 [mm]	38
Dimension D1 g6 [mm]	63
Dimension d2 [mm]	33.8
Dimension D5 [mm]	95
Dimension D6 [mm]	78
Dimension D7 [mm]	9
Dimension L	70
Dimension L10 [mm]	55
Dimension L3 [mm]	15
Dimension L4 [mm]	16
Dimension Sx [mm]	5
Angle φ [°]	30
