Направляющая REXROTH R065050800

Name: Направляющая REXROTH R065050800
Brand: REXROTH
SKU: R065050800

Артикул:R065050800

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Standard LB, tandem, 8, with two seals

Product Description

standard linear bushing
Standard (metal)
Tandem
Shaft diameter d = 8
With two seals
Version: Standard

Rugged all-metal design with steel ball retainer for harsh environments and heavy contaminationMany pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for lifeFor use in woodworking, foundries, cement plantsPockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.Integrated wiper sealsHardened and ground outer sleevePOM ball retainerBalls made of rolling bearing steel

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	8
Version	Standard
Format of linear bushings	T - Tandem
Серия	Standard (metal)
Seal	2 integrated wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	390
Maximum acceleration rate amax [m/s²]	100
Maximum permissible linear speed vmax [m/s]	2.5
Length of linear bushing [mm]	46
Outer diameter D [mm]	16
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	Only unsealed linear bushings with steel ball retainers may be used at higher temperatures. Make allowance for reductions in load capacity.
Масса (кг)	0.04
Static longitudinal moment load capacity ML0 [Nm]	4.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote maximum static load capacity C0max	null
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum static load capacity C0min	null
Footnote shaft radial clearance h6	Determined from working bore diameter and shaft tolerance statistics. Recommended housing bore tolerance: H6 or H7.
Footnote friction force FR	Frictional drags generated by linear bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication.
Breakaway force [N]	1
Тип	Linear bushing

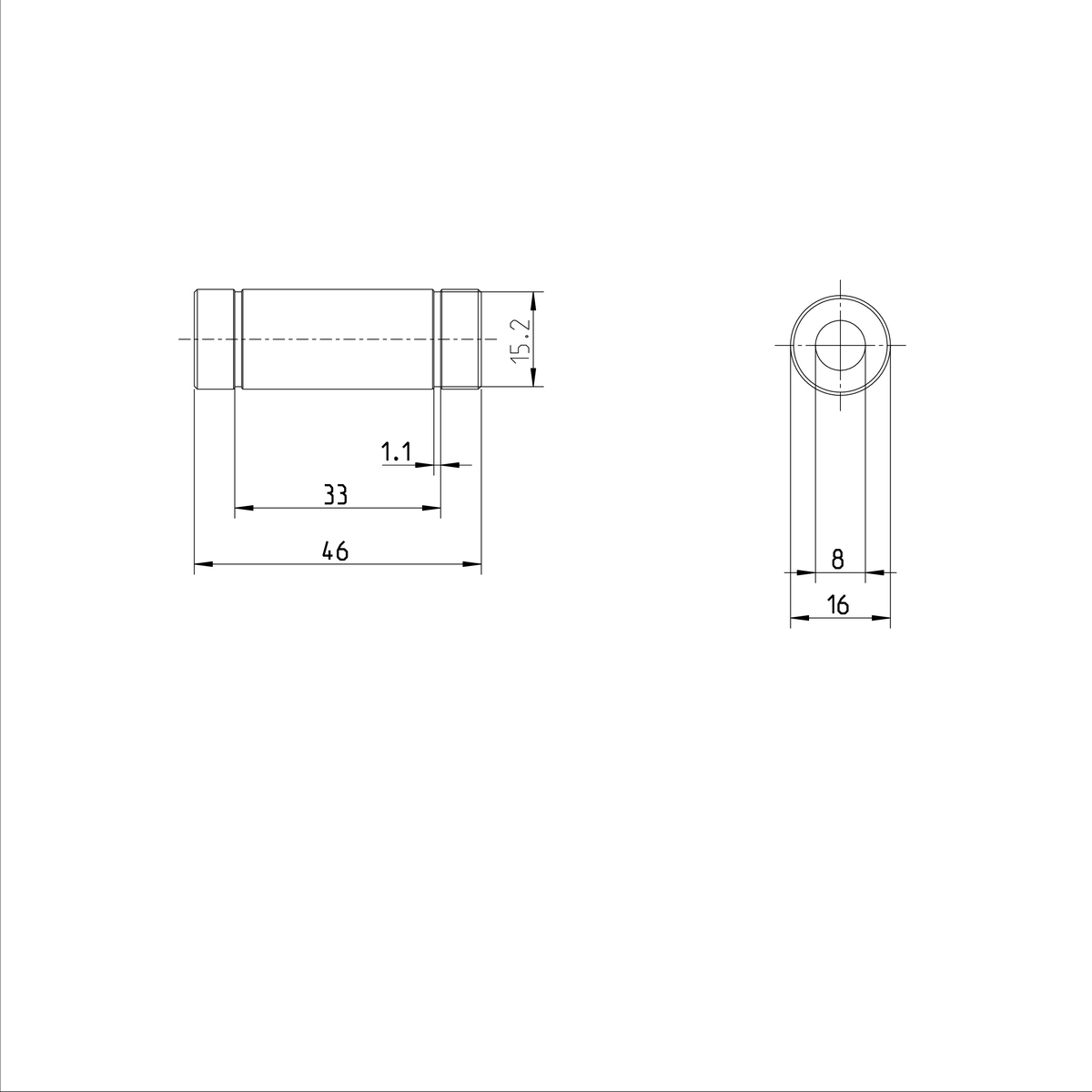

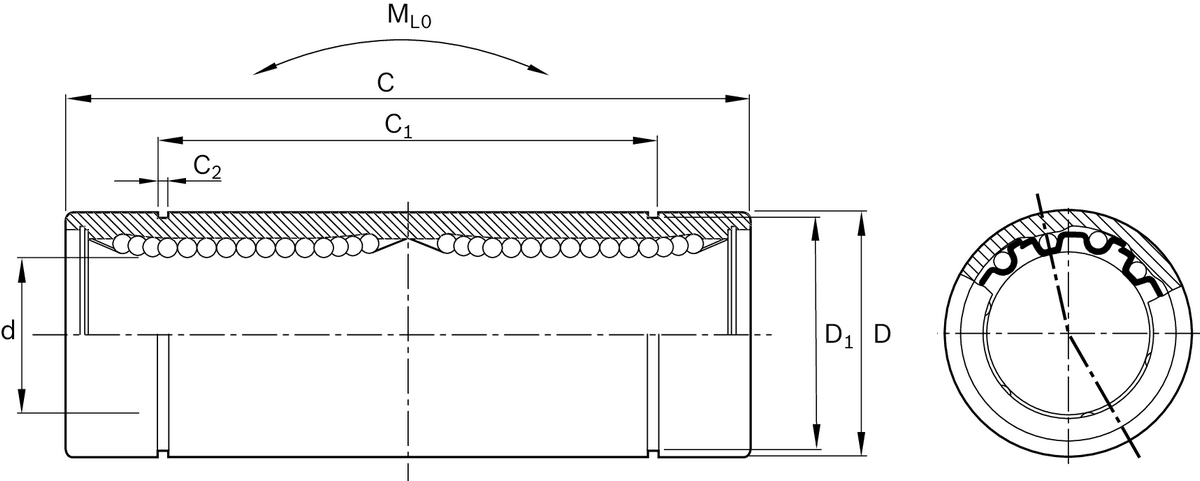

Dimension C [mm]	46
Dimension C1 [mm]	33
Tolerance C1 [mm]	-0.3
Dimension C2 [mm]	1.1
Dimension D [mm]	16
Dimension D1 [mm]	15.2
