Направляющая REXROTH R181054021

Name: Направляющая REXROTH R181054021
Brand: REXROTH
SKU: R181054021

Артикул:R181054021

Категория:Линейные направляющие рельсовые

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Hydraulic braking unit KBH, 55

Product Description

Hydraulic braking unit KBH^*), FLS for roller rail systems
Size = 55
Can be used on all SNS roller guide rails
^*)Zimmer GmbH

Very high axial holding forcesDynamic and static stabilization in the axial directionHeavy-duty brakeCompact design, compatible with DIN 645Clamps and brakes with pressureCan be used on all SNS roller guide railsUp to 1 million clamping cyclesUp to 2,000 emergency braking operationsThreaded on both sides for the hydraulic connectionSolid, rigid steel housing, chemically nickel-platedHigh positioning accuracyRelease pressure 150 barIntegrated all-round sealingSpecial pressure diaphragm technology for maximum functional reliability without pressure losses or leakageBrake shoes with integrated positive-locking, large-surface contact profiles for maximum axial rigiditySuper heavy-duty modelLow displacement10 million clamping cycles (B10d value)

Technical Specs

Характеристики

Характеристики изделия
Accessories for	Runner block
Nominal size [mm]	55
Holding force [N]	13700
Permissible ambient temperature (min. ... max.)	0 °C ... +70 °C
Масса (кг)	8.64
Footnote 1 holding force	The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).
Note: holding force 2	At 150 bar
Displacement footnote	Per clamping
Displacement [cm³]	2.4

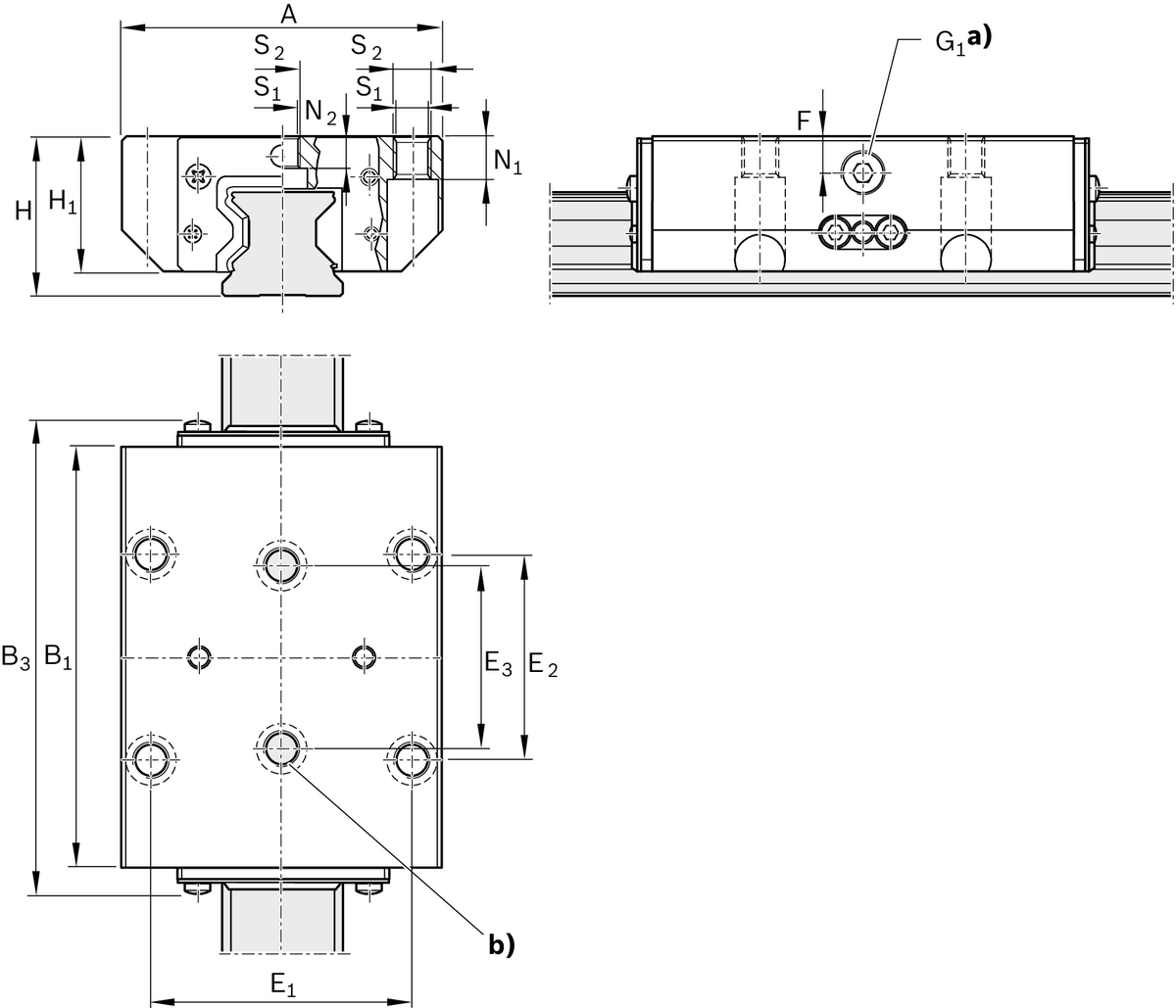

Dimension A (profiled rail systems) [mm]	140
Dimension B1 [mm]	184
Dimension B3 [mm]	204
Dimension E1 [mm]	116
Dimension E2 (profiled rail systems) [mm]	95
Dimension E3 (profiled rail systems) [mm]	70
Dimension F [mm]	16
Dimension H [mm]	70
Dimension H1 (profiled rail systems) [mm]	58
Dimension N1 (profiled rail systems) [mm]	18
Dimension N2 (profiled rail systems) [mm]	13.7
Dimension S1 (profiled rail systems) [mm]	12.5
Dimension S2 thread diameter (profiled rail systems) [mm]	M14
