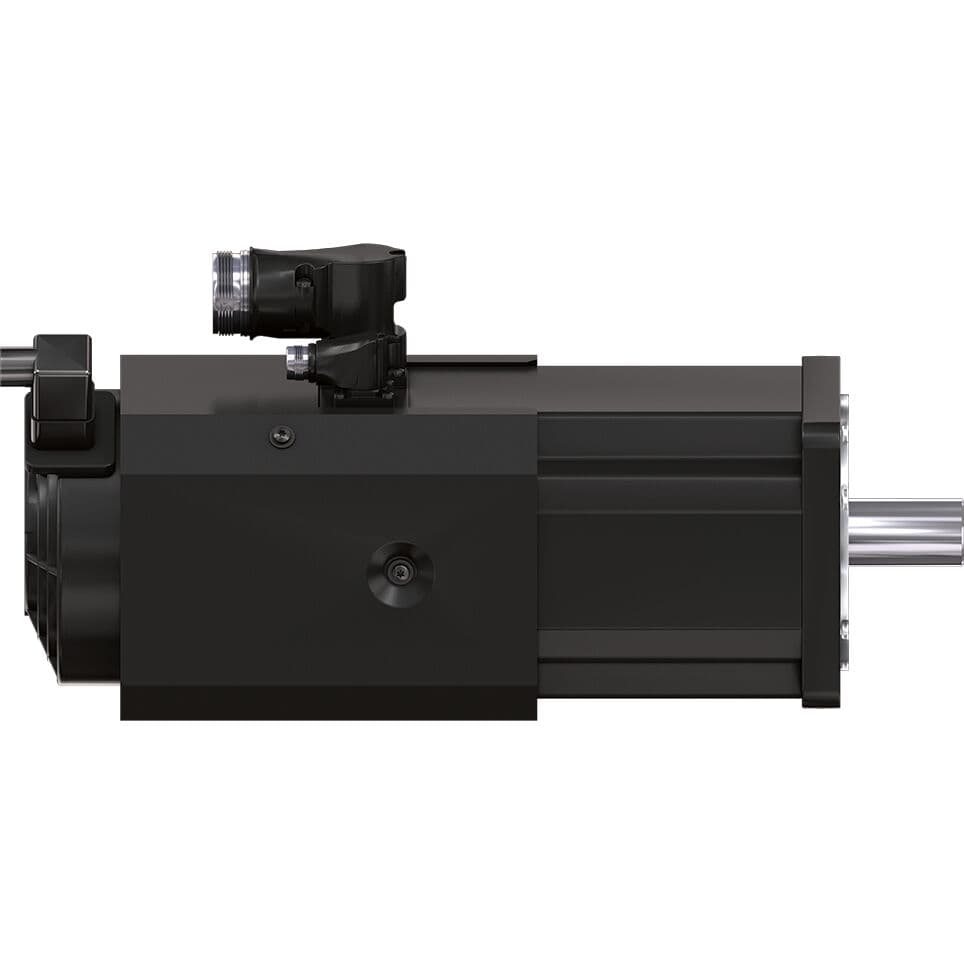

Серводвигатель REXROTH R911386836

Name: Серводвигатель REXROTH R911386836
Brand: REXROTH
SKU: R911386836

Артикул:R911386836

Категория:Электродвигатели и приводная электроника

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Synchronous Motor MS2N Size 07, self-cooling

Product Description

The product range of Rexroth´s servo motors combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion-proof versions according to ATEX complete the extensive portfolio.

4 encoder performance levelsOne-cable connection up to 75 m cable lengthSingle cable connection technique for quick and easy installationFlexibly configurable – cooling types, encoders up to SIL3 PL d, holding brake, different shaft options, and much moreIncreased continuous power due to optional forced ventilation and water coolingBroad range of application-specific options such as cooling types, encoder systems, holding brakes, etc.

Technical Specs

Характеристики

Характеристики изделия
ctrlX Configurator	https://www.boschrexroth.com/ctrlx-configurator/
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.MS2N07-C0BNN-CMSG0-NNNNN-NN**&downloads=true
Maximum torque [Nm]	38.8
Standstill torque (int./ext. cooling) 100k [Nm]	16.0
Макс. частота вращения (об/мин)	6000
Flange size [mm]	140
Cooling type	Self-cooling
Motor type	without holding brake
Shaft	Smooth, with shaft seal
Shaft length [mm]	58
Shaft diameter [mm]	32
Spigot [mm]	130
Bolt circle [mm]	165
Mounting hole (shaft)	M10
International protection code	IP65
Rotor inertia	Low inertia
Rotor inertia (without brake) value [kg/m²]	0.0012
Rotor inertia (with brake) value [kg/m²]	0
Encoder resolution	ADVANCED - digital 20 bit, ACURO@link, SIL2, PL d
Encoder design	Multiturn ‒ 4,096 revolutions absolute
electrical connection	Single cable connection M23, rotatable
Standstill torque (int. cooling) 60k [Nm]	12.8
Масса (кг)	12
