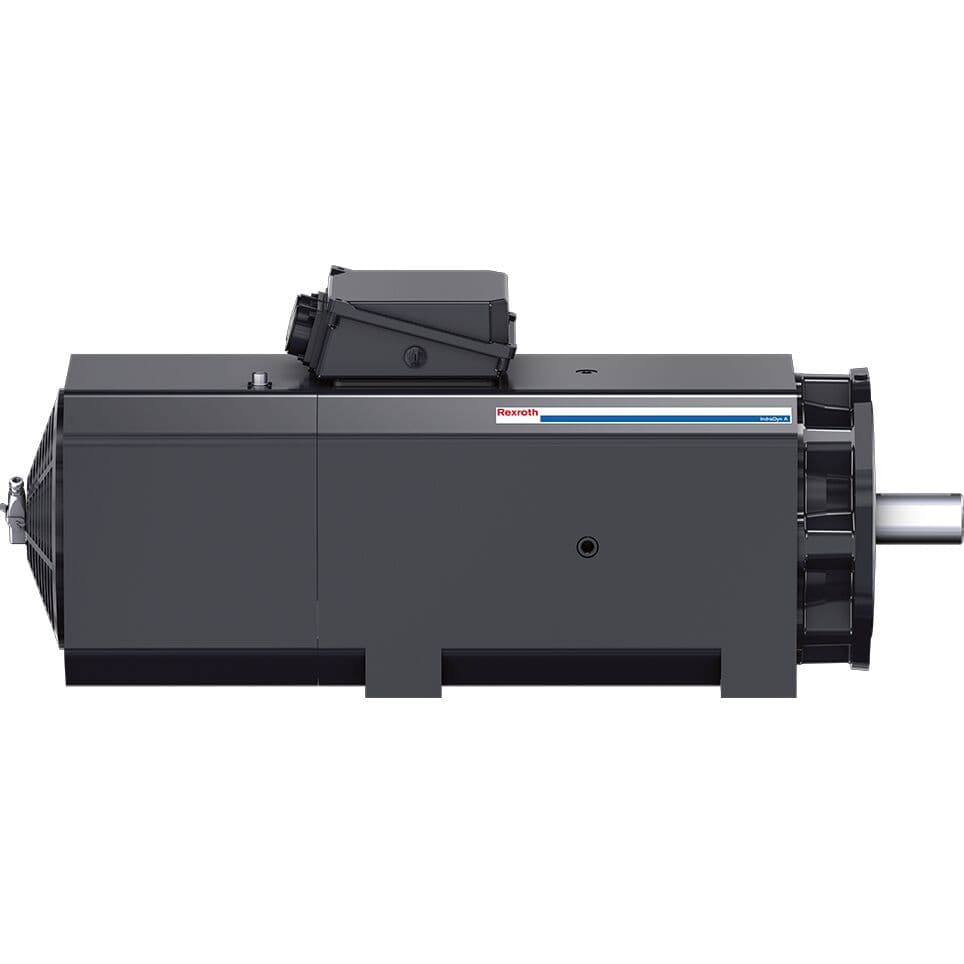

Серводвигатель REXROTH R911386907

Name: Серводвигатель REXROTH R911386907
Brand: REXROTH
SKU: R911386907

Артикул:R911386907

Категория:Электродвигатели и приводная электроника

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Product Description

The high power density predestines the MAD motor series for applications in machine tools and printing machines as well as in metal forming. Fine-resolution encoder systems in single-turn or multi-turn design as well as outstanding radial runout ensure maximum machining precision. In addition to options such as keyway and holding brake, these motors are also available with special bearings for high-speed applications or for applications with increased radial loads. The motor degree of protection IP65 includes the blower motor and thus enables use even in rough industrial environments. The service-friendly motor design even allows easy fan replacement while the motor is running – particularly interesting in the printing industry.

Technical Specs

Характеристики

Характеристики изделия
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.MAD180D-0100-SA-M2-HG0-35-N1**&downloads=true
Maximum torque [Nm]	901.5
Макс. частота вращения (об/мин)	6000
Rated speed [min⁻¹]	1000
Flange size [mm]	325
Rated power [kW]	38.7
Cooling type	Axial fan, blowing
Motor type	without holding brake
Rated torque [Nm]	370
Maximum current [A]	188.01
Shaft length [mm]	140
Shaft diameter [mm]	60
Spigot [mm]	300
Bolt circle [mm]	350
Rotor inertia (without brake) value [kg/m²]	0.594
Encoder design	Multiturn absolute encoder, EnDat2.1, 2048 increments
electrical connection	Terminal box, rotatable - B-side
Масса (кг)	403
