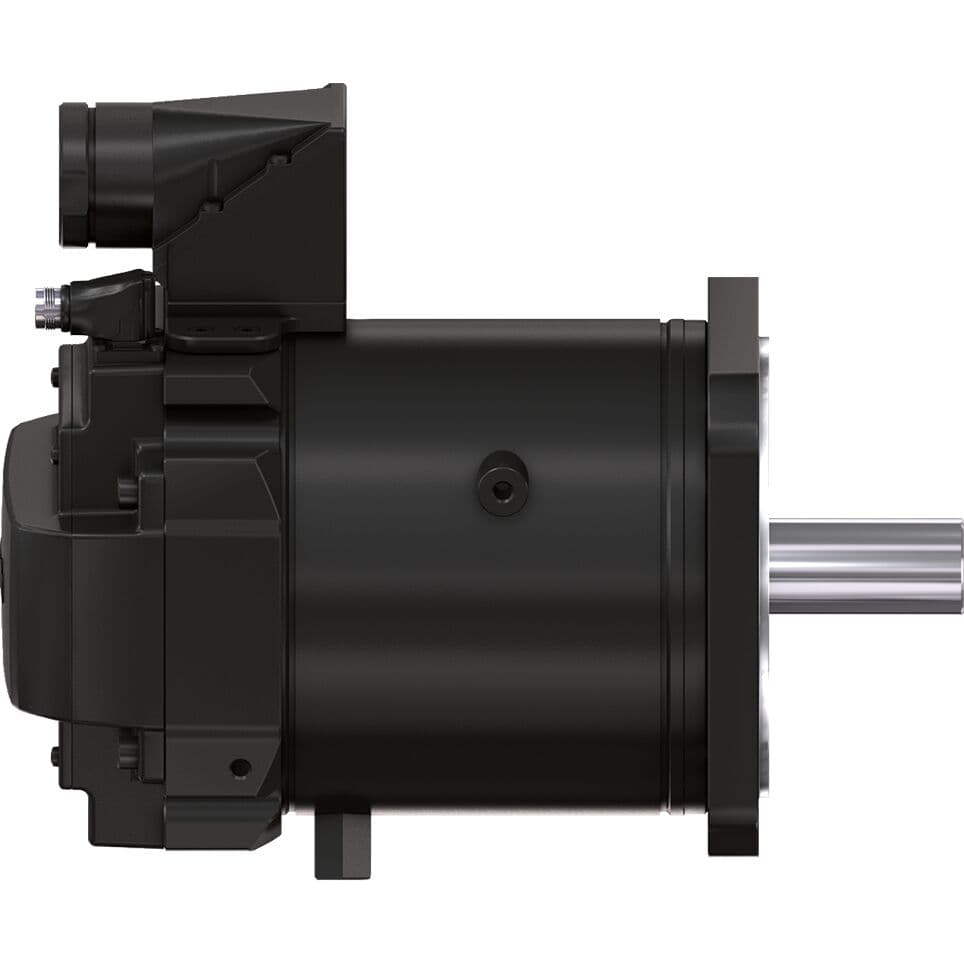

Серводвигатель REXROTH R911387195

Name: Серводвигатель REXROTH R911387195
Brand: REXROTH
SKU: R911387195

Артикул:R911387195

Категория:Электродвигатели и приводная электроника

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Synchronous Motor MS2N Size 10, water cooling

Product Description

The product range of Rexroth´s servo motors combines high dynamics with compact dimensions and best energy efficiency. Rotors with low and medium inertia are available with optimum mass customization. For intelligent solutions in the Industry 4.0 environment, the motors serve as data sources. Special explosion-proof versions according to ATEX complete the extensive portfolio.

4 encoder performance levelsOne-cable connection up to 75 m cable lengthSingle cable connection technique for quick and easy installationFlexibly configurable – cooling types, encoders up to SIL3 PL d, holding brake, different shaft options, and much moreIncreased continuous power due to optional forced ventilation and water coolingBroad range of application-specific options such as cooling types, encoder systems, holding brakes, etc.

Technical Specs

Характеристики

Характеристики изделия
ctrlX Configurator	https://www.boschrexroth.com/ctrlx-configurator/
EPLAN	https://ecad-configuration.boschrexroth.com/?rootpartnr=BOS.MS2N10-F0BHL-BSAG0-NNNNN-NN**&downloads=true
Maximum torque [Nm]	313
Standstill torque (int./ext. cooling) 100k [Nm]	214
Макс. частота вращения (об/мин)	4000
Flange size [mm]	196
Cooling type	Water cooling
Motor type	without holding brake
Shaft	Smooth, with shaft seal
Shaft length [mm]	80
Shaft diameter [mm]	38
Spigot [mm]	180
Bolt circle [mm]	215
Mounting hole (shaft)	M12
International protection code	IP65
Rotor inertia	Low inertia
Rotor inertia (without brake) value [kg/m²]	0.0147
Rotor inertia (with brake) value [kg/m²]	0
Encoder resolution	STANDARD - 128 signal periods, Hiperface, SIL2, PL d
Encoder design	Single-turn ‒ 1 revolution absolute
electrical connection	Angle connector M58, A-side
Standstill torque (int. cooling) 60k [Nm]	113
Масса (кг)	61
