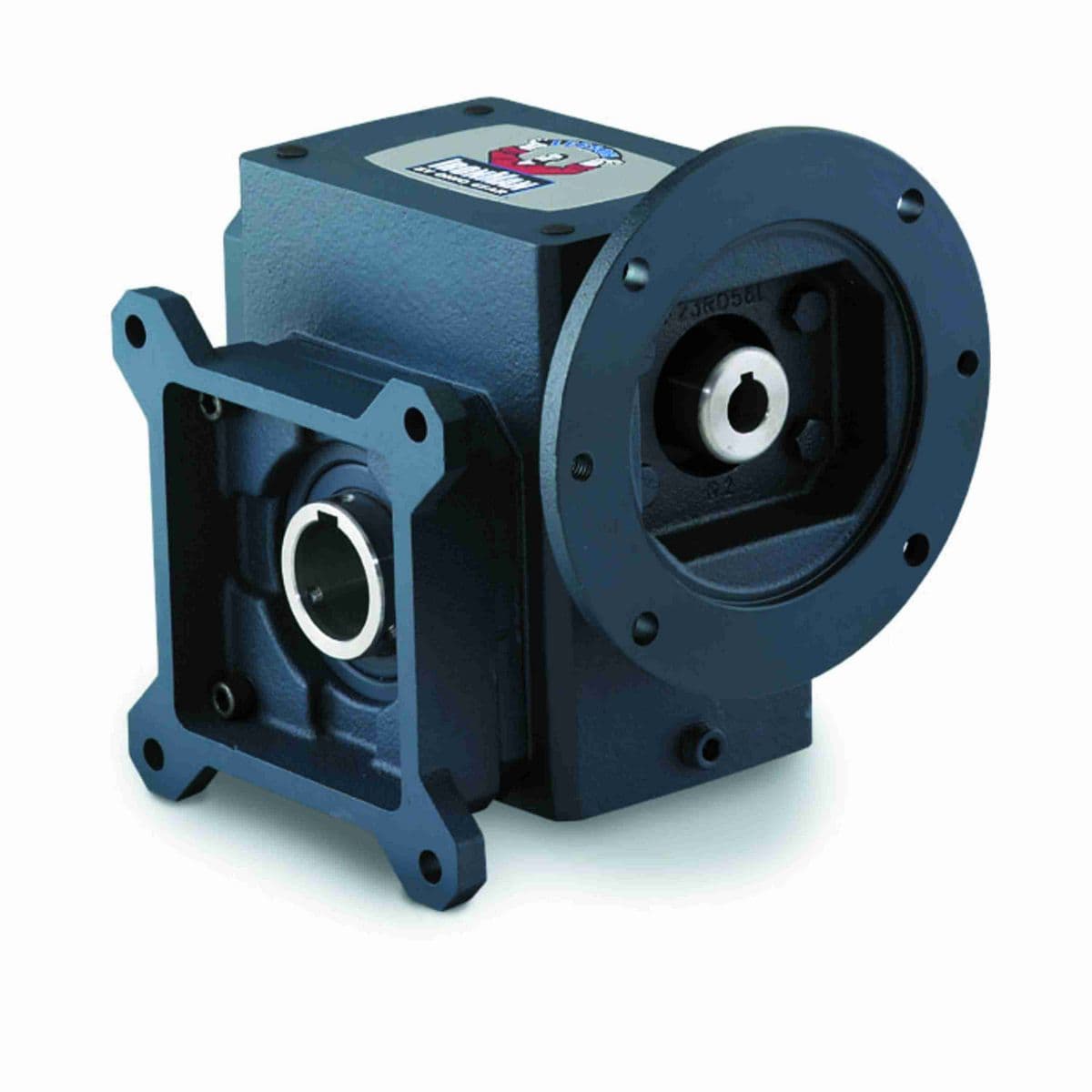

Редуктор Grove Gear GR-FHMQ842-30-HL-56-24

Name: Редуктор Grove Gear GR-FHMQ842-30-HL-56-24
Brand: Grove Gear
SKU: GR-FHMQ842-30-HL-56-24

Артикул:GR-FHMQ842-30-HL-56-24

Категория:Редукторы и мотор-редукторы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment.Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.Large oil capacity provides positive splash lubrication and superior cooling capability.Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.The unique quill seal guard protects the input seal from damage during motor installation.Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.All units are 100% run and leak tested at the factory to insure that you receive the highest quality product.Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.Mounting dimensions are interchangeable with most industry standard reducers.

Характеристики

Размеры
D	4.44
N	4.25
V	0.62 in
AK	4.5
RQ	6.04 in
R	4.56 in
BD	6.5
BE	0.38 in
Y	9.65 in
I	6.1 in
B	10.25
H	0.56 in
X	11.5 in
LQ	6.45 in
Межцентровое расстояние	4.25 in
A	6.13
Технические характеристики
Output Key	3/8 x 3.00
Series Code	GR
Input HP	6.481
Series Style	GR-FHMQ-HL
Output HP	5.517
Input Style	C-Face Quill
Bore Code	24
Frame Size	56C
Reducer Style	Worm - Right Angle
Keyway	3/16 X 3/32
Output Shaft Orientation	HL
Input RPM	1,750
Output Shaft Assembly Code	HL
Output RPM	58
Тип серии	Cast Iron 800 Worm Gear Reducers
Mounting Style	Flange Mounted Hollow Output Bore
Output Style	HL
Серия	GR Series - Ironman Worm Gear Reducers
Input Keyway (C Face)	3/16 x 3/32
Тип изделия	Right Angle
Output Diameter (in)	1.500 in
Input Quill Diameter (in)	0.625 in
Assembly	FHMQ-HL
No. of Gear Reductions	Single
Ratio Range	30:1
Reducer	Worm - Right Angle
Motor Frame Size	56C
Model Code	FHMQ842
Межцентровое расстояние	4.25
Input Bore (C Face)	0.625
Сервисный коэффициент	1
Ratio	30:1
Gear Type	Worm
Input Diameter (in)	0.625 in
Продуктовая линейка	GR Series - Ironman Worm Gear Reducers
Shaft Seal Material	Viton
Reduction	Single
Материал корпуса	Cast Iron
Output Shaft	Hollow Bore
Output Torque Rating (in-lb)	5960 in/lbs
Общие характеристики
Масса	74.39 кг
