CJ Series Hubs - Cast Iron, A & B Style, Metric Bores Timken 68514462062

Name: CJ Series Hubs - Cast Iron, A & B Style, Metric Bores Timken 68514462062
Brand: TIMKEN
SKU: 68514462062
Availability: PreOrder

Артикул:68514462062

Категория:Муфты, тормоза и обгонные механизмы

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

The Curved Jaw coupling consists of two standard hubs and one spider.
RSB maybe supplied as a solid hub or rough stock bore.

Notes

Характеристики

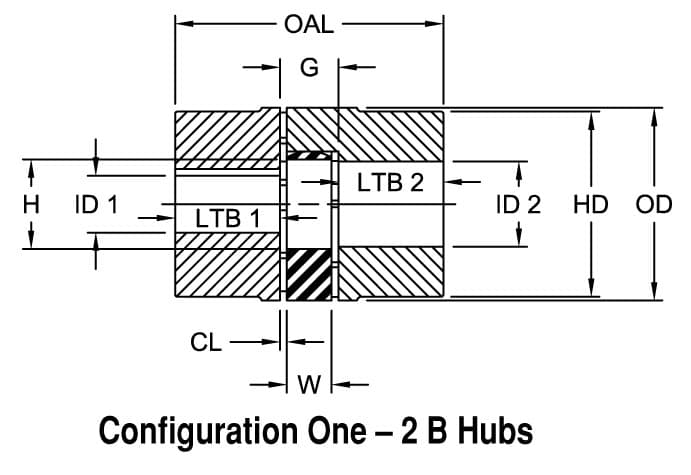

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Maximum bore may be achieved through the use of a shallow keyway.
Характеристики
Description	CJ75/90B-HUB-CI-RSB
Тип	Curved Jaw Couplings
Hub Material	Cast Iron
Hub Style	B
Исполнение	Unbored
Color	Gray
Масса	9.57 кг
Тип отверстия	Rough Stock Bore
Coupling Type	Jaw
Dimensional Data
Coupling Size	75/90
Set Screw Style Coupling Size (Dimension T)	3/8-16
Set Screw Style Coupling Location Size (Dimension SL)	0.980 in
Length thru Bore (Dimensions LTB1/LTB2)	3.350 in
Наружный диаметр	6.300 in
Overall Coupling Length	4.720 in
Spider Inside Diameter	3.150 in
Spider Outside Diameter	6.300 in
Spider Thickness (Dimension W)	1.180 in
Min. Bore (Dimensions ID1/ID2)	1.970 in
Max. Bore (Dimensions ID1/ID2)	3.540 in
Dimension G	1.570 in
Dimension HD	6.300 in
Distance between Spider and Hub Face (Dimension CL)	0.200 in
Cubic inches	187.33680 in³
Performance Data
Normal Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-40 to 212 ºF
Max. Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-50 to 248 ºF
Nominal Torque (with 92 Shore A spider)	11320.00 in·lb
Max Torque (with 92 Shore A spider)	22650.00 in·lb
Max. Speed	3550.00 об/мин
Angular Displacement	0.130 in
Max. Angular Displacement (∆ Ka), n=1500 [1/min]	1.20 º
Max. Axial Displacement (∆ Ka)	0.1200 in
Max. Radial Displacement (∆ Kr)	0.0180 in
The Curved Jaw Design
The Curved Jaw Design	Three piece design that is easy to assemble
Elastomer Characteristic
Elastomer Characteristic	Four types of spiders are available for the CJ Series of couplings
