Муфта TIMKEN 68514472005

Name: Муфта TIMKEN 68514472005
Brand: TIMKEN
SKU: 68514472005

Артикул:68514472005

Категория:Муфты, тормоза и обгонные механизмы

Узнать цену, наличие и срок

Наличие и срок поставки подтверждаем по артикулу после запроса.

Позвонить и уточнить у менеджера

Документы и сертификаты — по запросу

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A complete CJ Series coupling is comprised of two standard CJ hubs and one CJ spider. Four types of spiders are available for the CJ Series.

Notes

Характеристики

Disclaimer	Lovejoy: CAD Models are accurate envelope dimensions only. Features such as bore size and keyway are not rendered or are only representative. Contact Lovejoy Technical Support or refer to product catalogs for details.
Notes	Maximum bore may be achieved through the use of a shallow keyway.
Характеристики
Description	CJ38A-HUB-PM-32MMH7-10X3.3MMKW
Hub Style	A
Тип	Curved Jaw Coupling Hubs
Hub Material	Powder Metal
Исполнение	Bored
Color	Metallic
Coupling Type	Jaw
Масса	998 г
Dimensional Data
Диаметр отверстия	32.00 mm
Coupling Size	38
Set Screw Style Coupling Size (Dimension T)	5/16-18
Set Screw Style Coupling Location Size (Dimension SL)	0.590 in
Keyway Size	10 x 3.3 mm
Length thru Bore (Dimensions LTB1/LTB2)	1.770 in
Наружный диаметр	3.150 in
Overall Coupling Length	4.490 in
Spider Outside Diameter	3.150 in
Spider Inside Diameter	1.500 in
Spider Thickness (Dimension W)	0.710 in
Min. Bore (Dimensions ID1/ID2)	0.470 in
Max. Bore (Dimensions ID1/ID2)	1.5 in

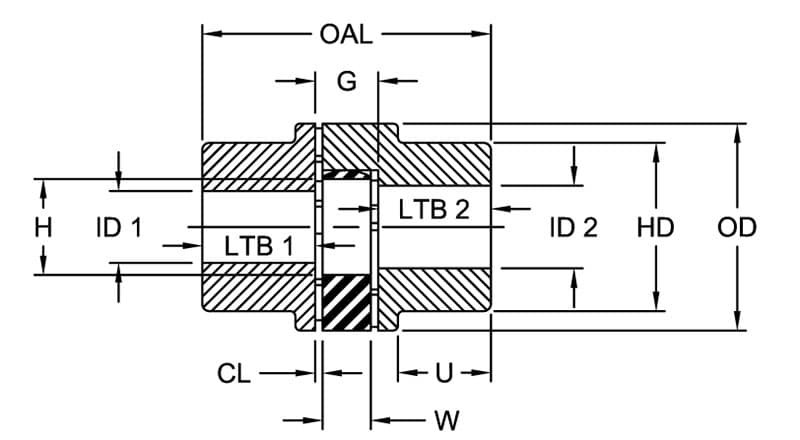

Dimension G	0.940 in
Dimension HD	2.600 in
Dimension U	1.460 in
Distance between Spider and Hub Face (Dimension CL)	0.120 in
Cubic inches	11.96520 in³
Performance Data
Normal Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-40 to 212 ºF
Max. Temperature Range (with 80 Shore A, 92 Shore A, and 95/98 Shore A spiders)	-50 to 248 ºF
Nominal Torque (with 92 Shore A spider)	1680 in·lb
Max Torque (with 92 Shore A spider)	3360 in·lb
Max. Speed	7100 об/мин
Angular Displacement	0.070 in
Max. Angular Displacement (∆ Ka), n=1500 [1/min]	1 º
Max. Axial Displacement (∆ Ka)	0.0700 in
Max. Radial Displacement (∆ Kr)	0.0110 in
The Curved Jaw Design
The Curved Jaw Design	Three piece design that is easy to assemble
