Jaw In-Shear 6 Pin Kits (Spider & Ring) Timken 68514478390

Name: Jaw In-Shear 6 Pin Kits (Spider & Ring) Timken 68514478390
Brand: TIMKEN
SKU: 68514478390
Availability: PreOrder

Артикул:68514478390

Категория:Муфты, тормоза и обгонные механизмы

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

A complete Jaw In-Shear coupling is composed of two standard Lovejoy L or C Type hubs (find under Jaw section), a Jaw In-Shear 6 Pin Urethane Element, and a Jaw In-Shear 6 Pin Ring. (Spacers are also available for sizes LS090-CS350.)For highly corrosive, heavy wash down environments, the JIS 6 Pin design combined with Lovejoy’s stainless steel jaw hubs creates a fully stainless steel/urethane coupling.

Specifications

Характеристики

Description	LS110-SPIDER W/RING-URE
Coupling Size	LS110
Ring Material	Stainless Steel
Application	Jaw In Shear Spider & Ring
Number of Pieces	2
Масса	435 г
Complete Coupling Weight	2.68 кг
Coupling Type	Jaw In-Shear
Dimensional Data
Ширина	4.000 in
Высота	4.000 in
Depth	5.00 in
Cubic inches	80.00000 in³

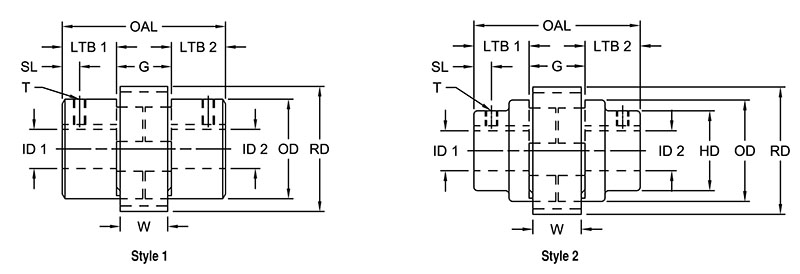

Dimensional Data of Related Coupling
Общая длина	5.00 in
Min. Bore (Dimensions ID1/ID2)	0.630 in
Max. Bore (Dimensions ID1/ID2)	1.625 in
Length thru Bore (Dimensions LTB1/LTB2)	1.680 in
Наружный диаметр	3.32 in
Thread (Dimension T)	3/8-16
Dimension G	1.640 in
Dimension HD	3.320 in
Dimension W	1.450 in
Performance Data of Related Coupling
Max. Speed	5900.00 об/мин
Coupling Nominal Torque	1090.00 in·lb
Max. Torque	2180.00 in·lb
Kit Contains
Kit Contains	(1) Jaw-In Shear Spider
