Одинарная гайка с фланцем Bosch Rexroth FEM-E-B 12X10RX2-2 [R153249006]

Name: Одинарная гайка с фланцем Bosch Rexroth FEM-E-B 12X10RX2-2 [R153249006]
Brand: REXROTH
SKU: R153249006
Availability: PreOrder

Артикул:R153249006

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Single nut with flange FEM-E-B, size 12 x 10R x 2\u2006-\u20062

Product Description

Single nut with flange FEM-E-B with standard seal and standard axial clearance
Nominal diameter d0 = 12
Lead P = 10 (right)
Ball diameter Dw = 2
Number of ball track turns i = 2

Preload class: C0, C00, C1, C2, C3Rexroth connection dimensions flange type BWith sealsPreload class: C0, C00Except for size 8 x 2.5\/5 and 12 x 5\/10: Preload class C1Tolerance grade: T5, T7, T9

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	12 x 10R x 2 - 2
Серия	Miniature series
Dynamic load capacity C [N]	3000
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	60
Note: maximum permissible speed vmax	See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes")
Storage temperature (min. … max.)	-15 °C ... +80 °C
Operating temperature (min. … max.)	-10 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-B single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Масса (кг)	0.14
Static load capacity C0 [N]	3600
Note: static load capacity C0	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

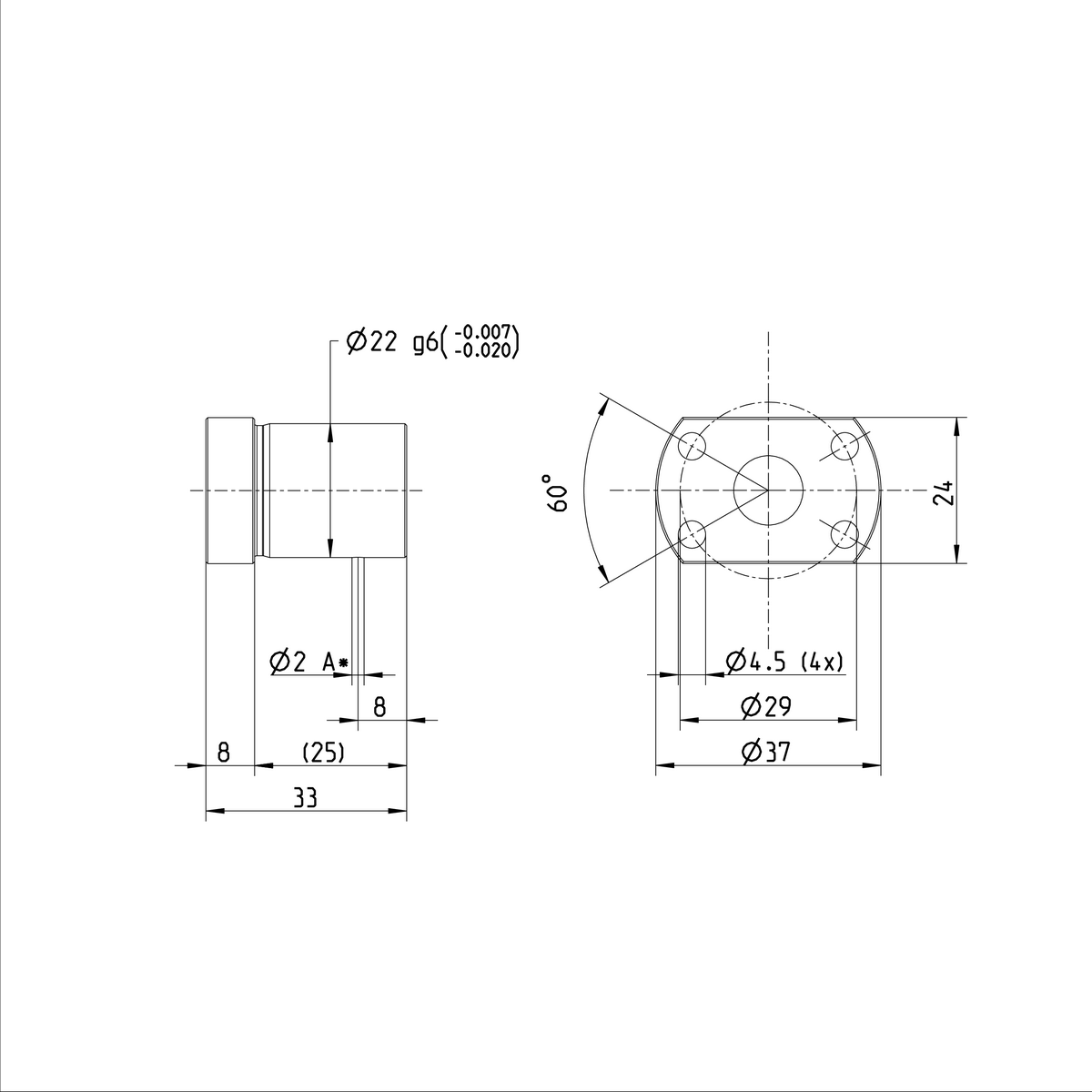

Dimension d1 [mm]	11.4
Dimension D1 g6 [mm]	22
Dimension d2 [mm]	9.9
Dimension D4 [mm]	2
Dimension D5 [mm]	37
Dimension D6 [mm]	29
Dimension D7 [mm]	4.5
Dimension L	33
Dimension L14 [mm]	24
Dimension L3 [mm]	8
Dimension L4 [mm]	25
Dimension L7 [mm]	8
