Компактная линейная втулка Bosch Rexroth KBC-40-NR [R065804030]

Name: Компактная линейная втулка Bosch Rexroth KBC-40-NR [R065804030]
Brand: REXROTH
SKU: R065804030
Availability: PreOrder

Артикул:R065804030

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Compact LB, 40, without seal, CR, not lubricated

Product Description

Compact linear bushing
Shaft diameter d = 40
Without seal
Radial clearance: Standard
Version: Rust-resistant
Not greased

Low-cost linear bushing for general requirementsSmall outer dimensions and highly compact constructionHigh dynamic load rating and long service life due to hardened segmental load-bearing plates with ball conformity in the running trackStainless steel for the medical, chemistry and food industries: Segmental load bearing plates comprising 1.4037 balls made from 1.3541Integrated wiper seals, external seals or no wiper sealsNormal radial clearanceNot greasedHigh travel speed (5 m\/s)Simple mounting: Just press on – no additional retention neededMany pockets acting as lubricant reservoirs for extended lubrication intervals or lubrication for lifePockets collect any dirt that may have worked its way in to prevent the linear bushing from jamming.Integrated metal retainer about 0.1 mm larger than outer diameter (shaft diameters 12 to 50) for secure fit in housing bore

Technical Specs

Характеристики

Характеристики изделия
Shaft diameter d [mm]	40
Version	Corrosion-resistant
Format of linear bushings	– Closed
Серия	Compact
Seal	without wiper seals
Lubrication	Not lubricated
Maximum dynamic load capacity Cmax [N]	4470
Maximum acceleration rate amax [m/s²]	150
Maximum permissible linear speed vmax [m/s]	5
Радиальный зазор	normal radial clearance
Length of linear bushing [mm]	60
Outer diameter D [mm]	52
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Friction coefficient μ	0.001 ... 0.004
Note: friction coefficient μ	Friction coefficients of unsealed linear bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load.
Масса (кг)	0.16
Footnote breakaway force	One wiper seal: Multiply value with factor 0.5
Footnote maximum dynamic load capacity Cmax	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote maximum static load capacity C0max	null
Footnote minimum dynamic load capacity Cmin	The dynamic load capacities are based on a total travel of 100,000 m. When based on 50,000 m, the C values in the table are to be multiplied by 1.26.
Footnote minimum static load capacity C0min	null
Footnote friction force FR	One wiper seal: Multiply value with factor 0.5
Breakaway force [N]	8

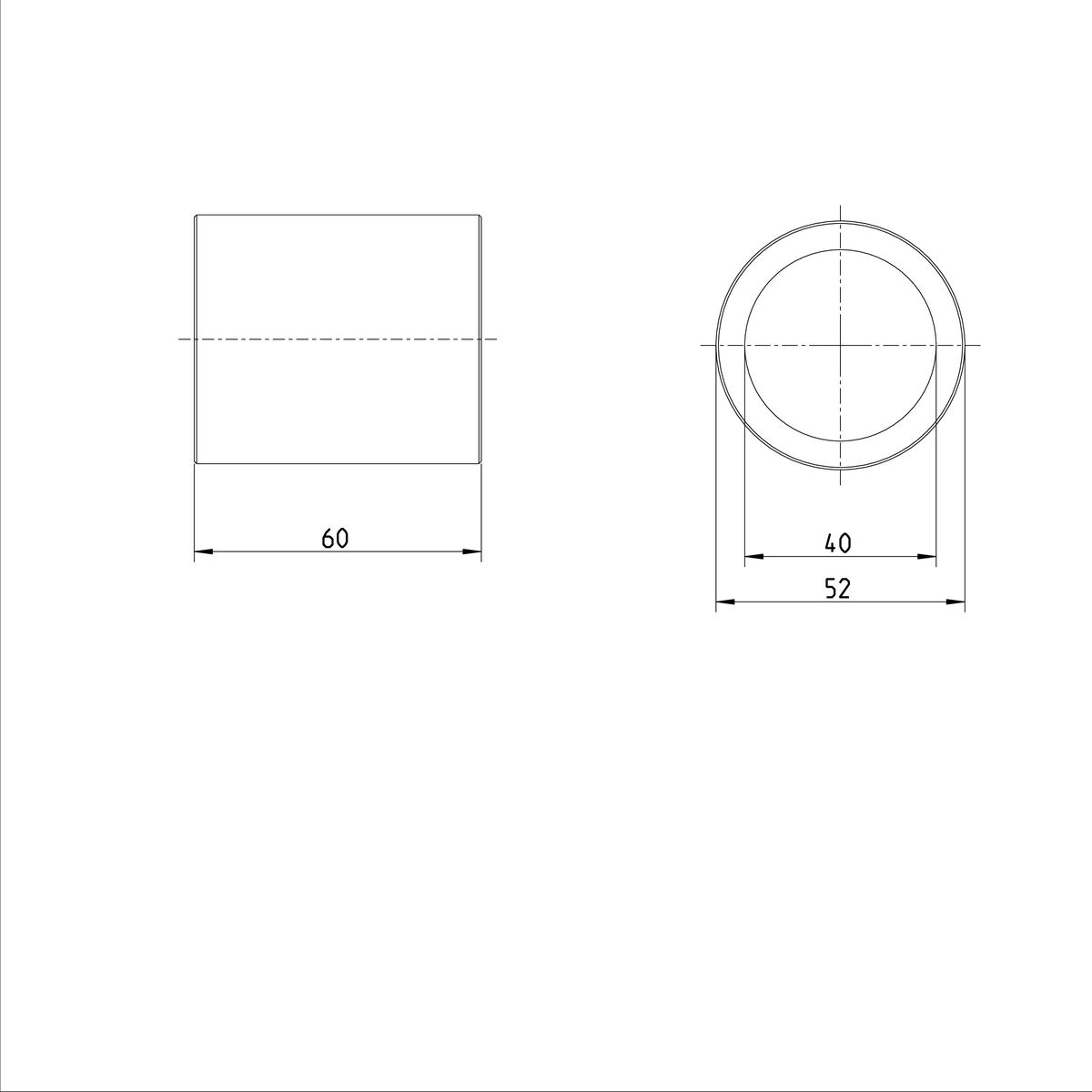

Dimension C [mm]	60
Dimension D [mm]	52
