Роликовая направляющая из углеродистой стали Bosch Rexroth RSA-065-SNS-P-MA-BS [R180563262]

Name: Роликовая направляющая из углеродистой стали Bosch Rexroth RSA-065-SNS-P-MA-BS [R180563262]
Brand: REXROTH
SKU: R180563262
Availability: PreOrder

Артикул:R180563262

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Roller guide rail, SNS, size 65, steel CS, accuracy precision

Product Description

The roller guide rail is highly precise and characterized by the following product features:
Size 65
Format SNS: Width = slimline, length = normal, height = standard
Guide rail made of carbon steel CS
Fastener MA: Bolting from above
Cover BS: Cover strip and strip clamp
Accuracy class precision
Number of partial sections: one-piece
Rail in standard version

For mounting from aboveCover strip made of corrosion-resistant spring steel as per DIN EN 10088Aluminum strip clamps (without threaded holes on end faces)One cover for all bore holes saves time and costsCover strip can be mounted simply and securelyClip on cover strip and lockHardened raceways smoothened on all sidesMaximum rigidity in all load directionsVery high torque load capacity

Technical Specs

Характеристики

Характеристики изделия
Version	Roller rail systems
Nominal size [mm]	65
Format	SNS - Standard guide rail
Material (profiled rail systems)	Carbon steel
Accuracy class	P - Precise
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip and strip clamps
Max. length Lmax [mm]	3971
Note: Lmax	Available as one piece up to a length of 5921 mm
Minimum length Lmin [mm]	192
Number of holes nB (profiled rail systems)	53
Number of sections	2-piece
Mass m (kg/m) [kg/m]	17.4
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Масса (кг)	0
Recommended rail length (formula)	L = nB • T ‒ 4 mm
Pitch T guide rail [mm]	75

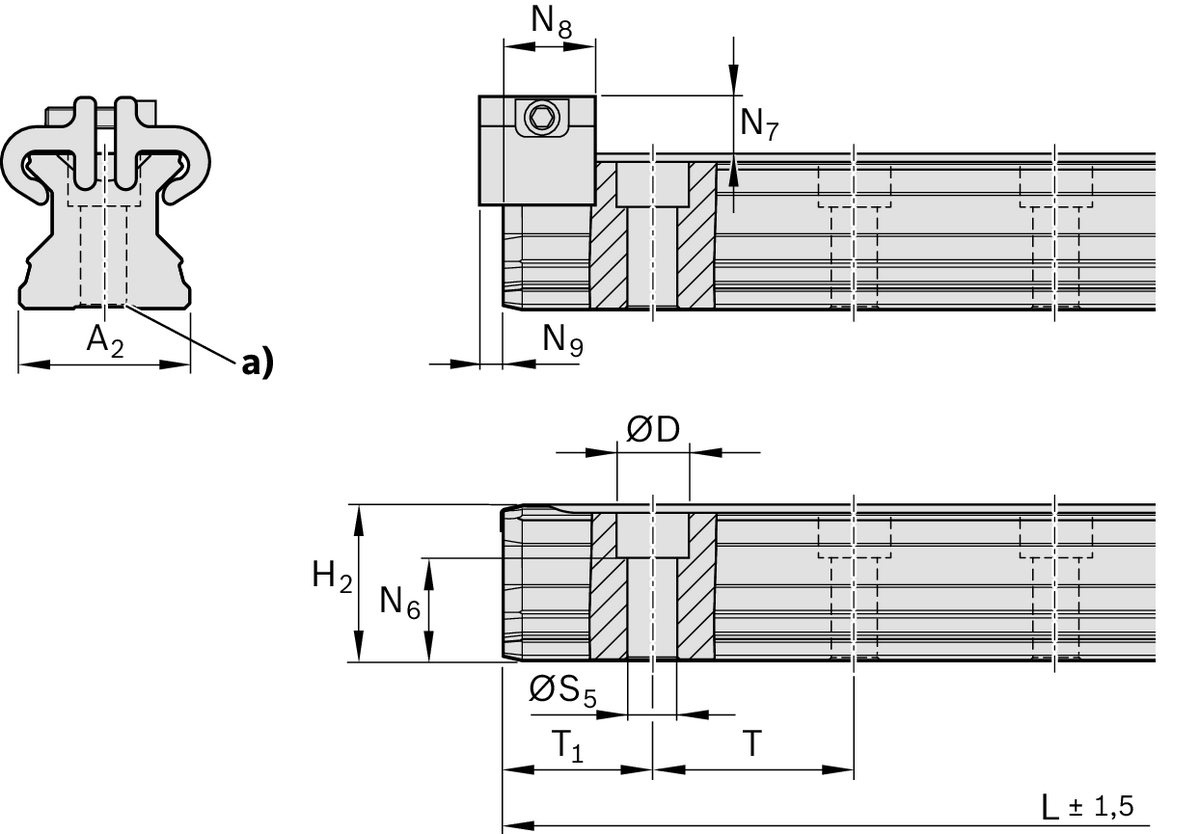

Dimension A2 (profiled rail systems) [mm]	63
Dimension D [mm]	26
Dimension diameter S5 (profiled rail systems)	18
Dimension H2 with cover strip (profiled rail systems) [mm]	58.15
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N6 (profiled rail systems) [mm]	36.5
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N8 (profiled rail systems) [mm]	17
Dimension N9 (profiled rail systems) [mm]	3.2
Dimension T [mm]	75
Dimension T1 max (profiled rail systems) [mm]	55
Dimension T1 min [mm]	21
Dimension T1 s (profiled rail systems) [mm]	35.5
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T1S with tolerances ± 0.75
Height of guide rail H2 with cover strip [mm]	58.15
