Шариковая каретка из углеродистой стали Bosch Rexroth KWD-015-SNH-C1-P-1 [R162111220]

Ball runner block, SNH, size 15, steel CS, accuracy precision, low preload, without ball chain

Product Description

The ball runner block is highly precise and characterized by the following product features:
Size 15
Format SNH: Width = slimline, length = normal, height = high
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class P: Precision
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version

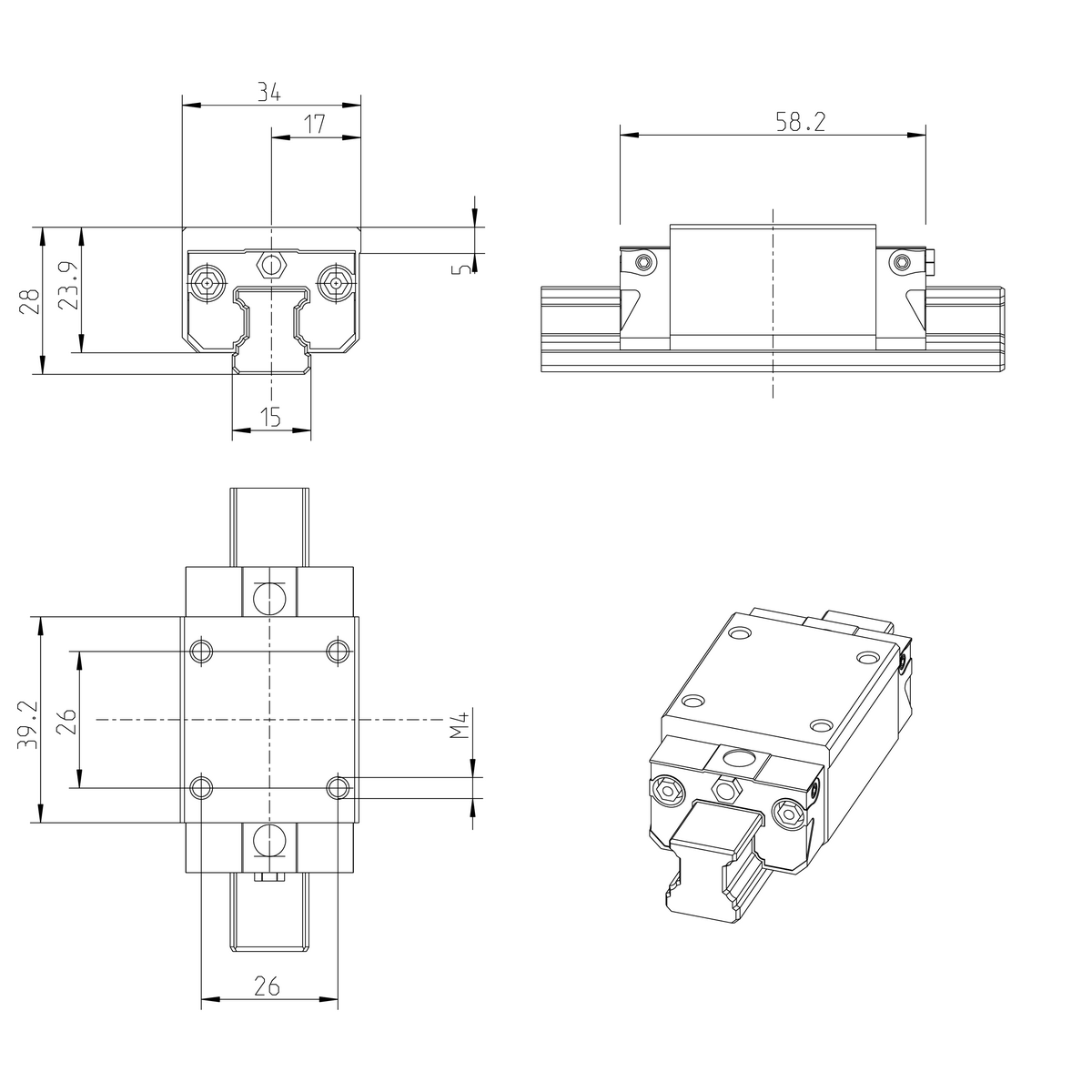

Overall length of the runner block = 58.2 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For restricted space in the transverse direction and high rigidity requirementsHigher rigidity than SNSSignificantly reduced frictional oscillations and low friction force level, particularly under external loadMaximum precisionPatented entry zone increases the travel accuracy up to a factor of sixArea of application: For restricted space in the transverse direction and high rigidity requirementsHigher rigidity than SNSSignificantly reduced frictional oscillations and low friction force level, particularly under external loadMaximum precisionPatented entry zone increases the travel accuracy up to a factor of sixHigh rigidity in all load directions – permits applications with just one runner block per railHigh torque load capacityLimitless interchangeability as all ball guide rail systems can be combined at will with all ball runner block versions within each accuracy class.Long-term lubrication is possible over several yearsEnd-face fastening thread for all attachmentsSmooth, quiet running thanks to optimally designed ball return and guidewayDifferent preload classesExcellent dynamic characteristicsCan be used on all SNS\/SNO ball guide railsBall runner block pre-lubricated at the factory
