Одинарная гайка с фланцем Bosch Rexroth FEM-E-B 32X20RX3,969-3 [R150237063]

Name: Одинарная гайка с фланцем Bosch Rexroth FEM-E-B 32X20RX3,969-3 [R150237063]
Brand: REXROTH
SKU: R150237063
Availability: PreOrder

Артикул:R150237063

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Single nut with flange FEM-E-B, size 32 x 20R x 3.969\u2006-\u20063

Product Description

Single nut with flange FEM-E-B with standard seal and standard axial clearance
Nominal diameter d0 = 32
Lead P = 20 (right)
Ball diameter Dw = 3.969
Number of ball track turns i = 3

Preload class: C0, C00, C1, C2, C3Mounting dimensions similar to DIN 69051, Part 5 flange type B.With sealsWith left-hand version in some casesTolerance grade: T3 (for sizes as per the product overview for screws, see general technical notes and information, "Product description"), T5, T7, T9

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	32 x 20R x 3,969 - 3
Серия	Standard series
Dynamic load capacity C [N]	23600
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	94
Note: maximum permissible speed vmax	See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples)
Storage temperature (min. … max.)	-15 °C ... +80 °C
Operating temperature (min. … max.)	-10 °C ... +80 °C
Direction of lead	Right
Nut type	FEM-E-B single nut with flange
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Hole pattern	BB2
Масса (кг)	1
Static load capacity C0 [N]	33700
Note: static load capacity C0	The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	A
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

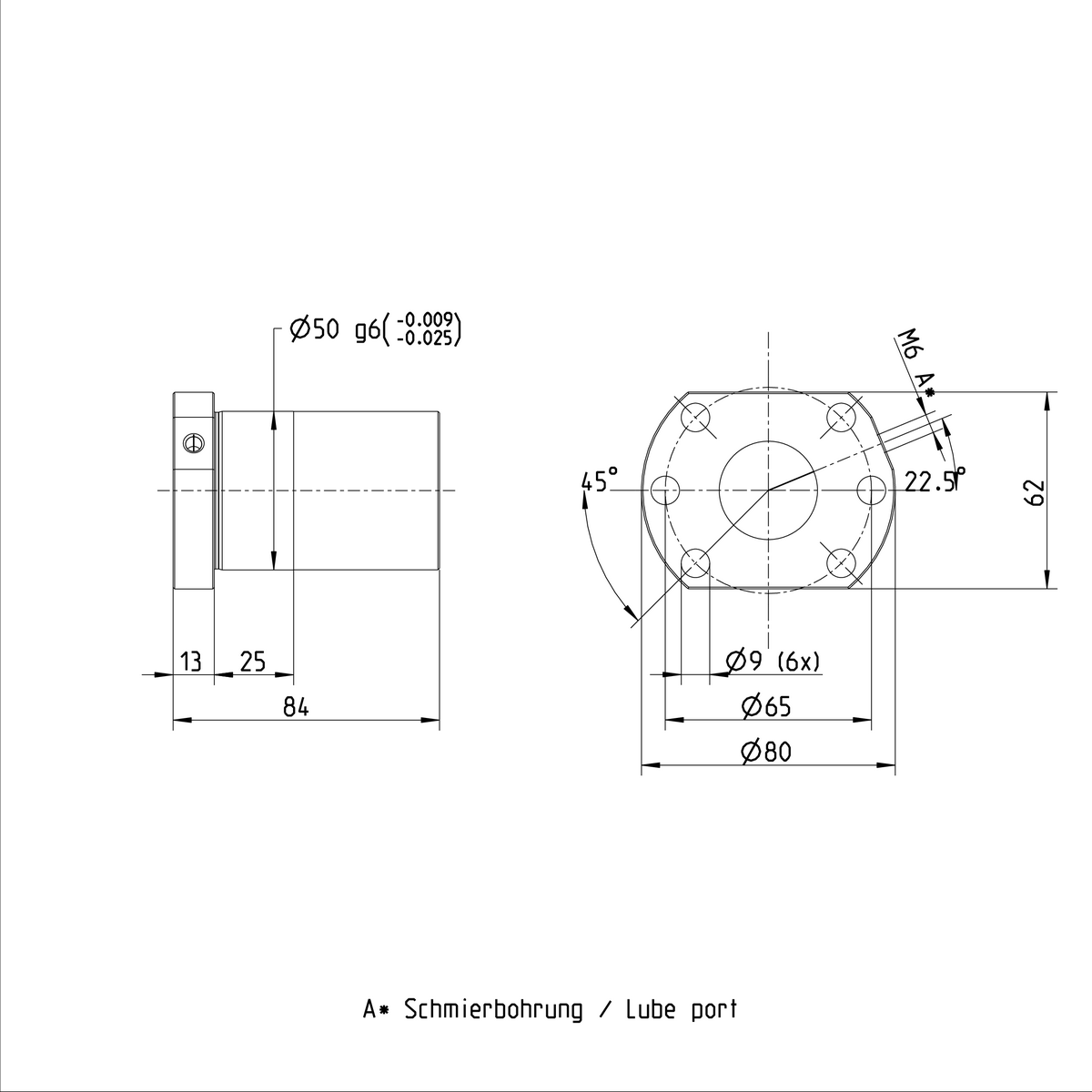

Dimension d1 [mm]	31
Dimension D1 g6 [mm]	50
Dimension d2 [mm]	27.9
Dimension D5 [mm]	80
Dimension D6 [mm]	65
Dimension D7 [mm]	9
Dimension L	84
Dimension L10 [mm]	71
Dimension L14 [mm]	62
Dimension L3 [mm]	13
Dimension L4 [mm]	25
Dimension Sx [mm]	4
Diameter d0 [mm]	32
