Одинарная цилиндрическая гайка Bosch Rexroth ZEM-E-S 8X5RX1,588-3 [R153226002]

Name: Одинарная цилиндрическая гайка Bosch Rexroth ZEM-E-S 8X5RX1,588-3 [R153226002]
Brand: REXROTH
SKU: R153226002
Availability: PreOrder

Артикул:R153226002

Категория:Линейные направляющие рельсовые

Цена по запросу

Под заказ

Узнать цену и наличие

Весь товар сертифицирован

Доставка по Беларуси и СНГ

Скидки постоянным клиентам

Работаем с юр. лицами и ИП

Описание

Cylindrical single nut ZEM-E-S, size 8 x 5R x 1.588\u2006-\u20063

Product Description

Cylindrical single nut ZEM-E-S with standard seal and standard axial clearance
Nominal diameter d0 = 8
Lead P = 5 (right)
Ball diameter Dw = 1.588
Number of ball track turns i = 3

Rexroth connection dimensionsWith sealsPreload class: C0, C00, C1Tolerance grade: T5, T7, T9

Technical Specs

Характеристики

Характеристики изделия
Nominal size [mm]	8 x 5R x 1,588 - 3
Серия	Miniature series
Dynamic load capacity C [N]	2500
Note: dynamic load capacity C	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Maximum permissible linear speed vmax (m/min) [m/min]	30
Note: maximum permissible speed vmax	See "Characteristic speed d0 • n" (see General Technical Notes and Information, "Technical Data" (Technical Notes), and "Critical speed ncr" (see General Technical Notes and Information, "Project planning notes")
Storage temperature (min. … max.)	-15 °C ... +80 °C
Operating temperature (min. … max.)	-10 °C ... +80 °C
Direction of lead	Right
Nut type	ZEM-E-S cylindrical single nut
Note: permissible operating temperature (min. ... max.)	Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case.
Масса (кг)	0.08
Static load capacity C0 [N]	2650
Note: static load capacity C0	The load capacities are valid for tolerance grade T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes).
Category	B
Maximum operating temperature [°C]	+80
Bearing temperature max [°C]	+80
Minimum operating temperature [°C]	-10
Bearing temperature min [°C]	-15

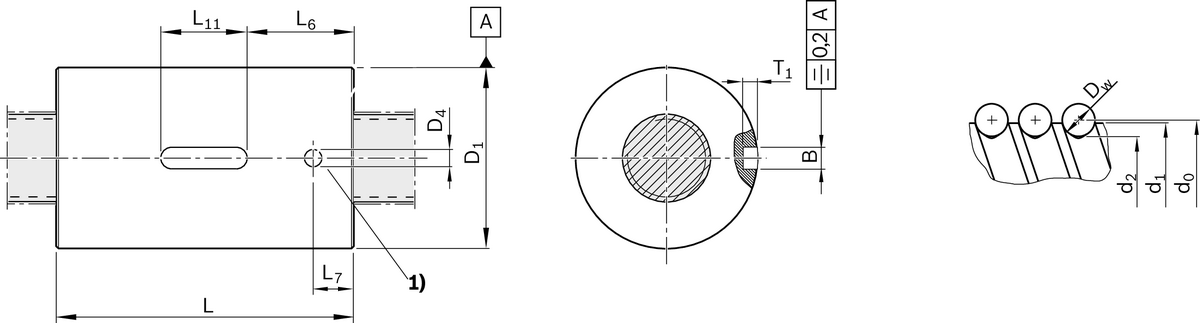

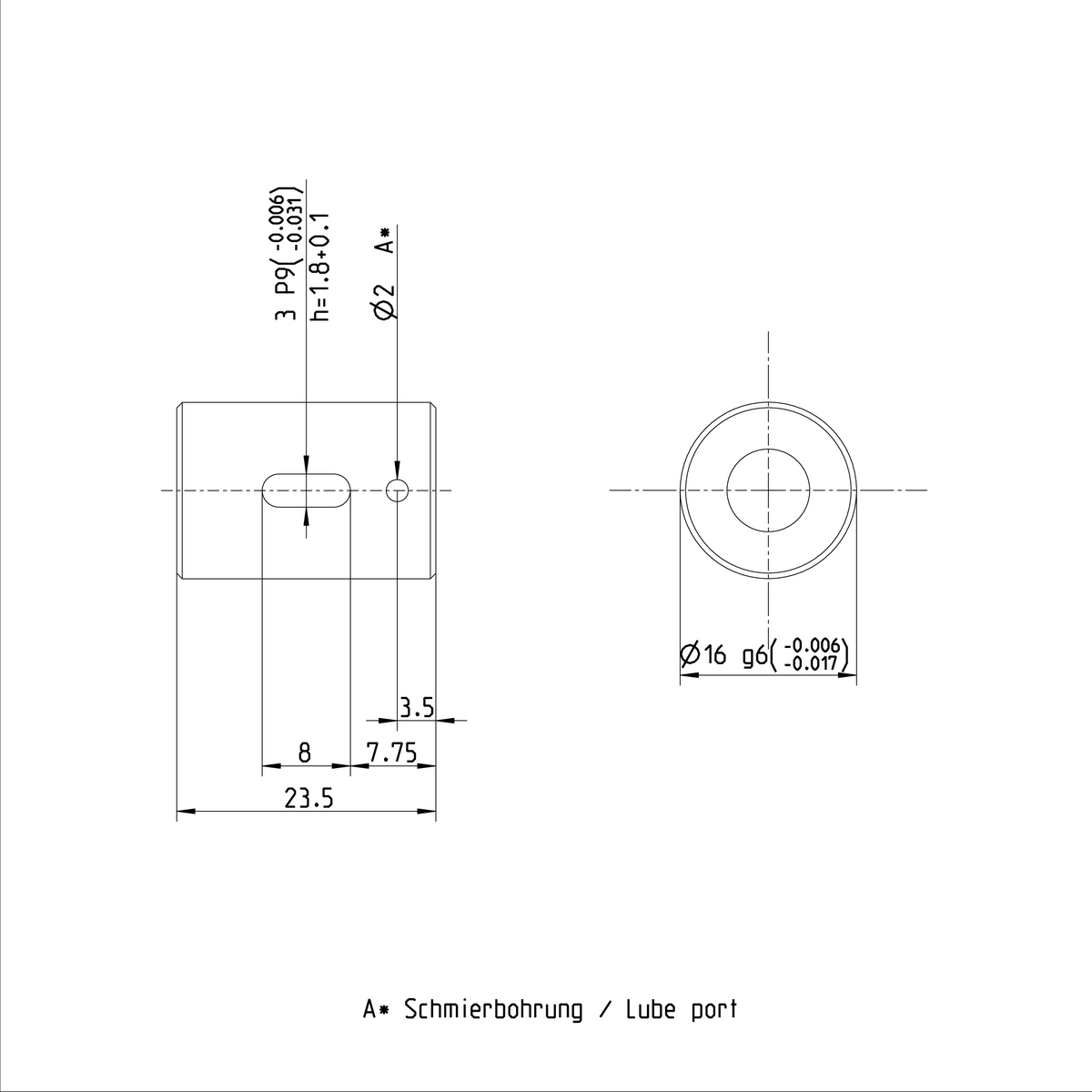

Dimension B P9 [mm]	3
Dimension d1 [mm]	7.5
Dimension D1 g6 [mm]	16
Dimension d2 [mm]	6.3
Dimension D4 [mm]	2
Dimension L	23.5
Dimension L tolerance [mm]	±0.1
Dimension L11 [mm]	8
Dimension L11 tolerance [mm]	±0.2
Dimension L6 [mm]	7.75
Dimension L7 [mm]	3.5
Dimension T1 [mm]	1.8
