Шариковая каретка из углеродистой стали Bosch Rexroth KWD-035-FKS-C0-H-1 [R166539320]

Ball runner block, FKS, size 35, steel CS, accuracy high, preload-free, without ball chain

Product Description

The ball runner block is highly precise and characterized by the following product features:
Size 35
Format FKS: Width = flange, length = short, height = standard
Runner block body made of unalloyed steel CS
Preload class C0: Preload-free
Accuracy class H: High
Without ball chain
With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version

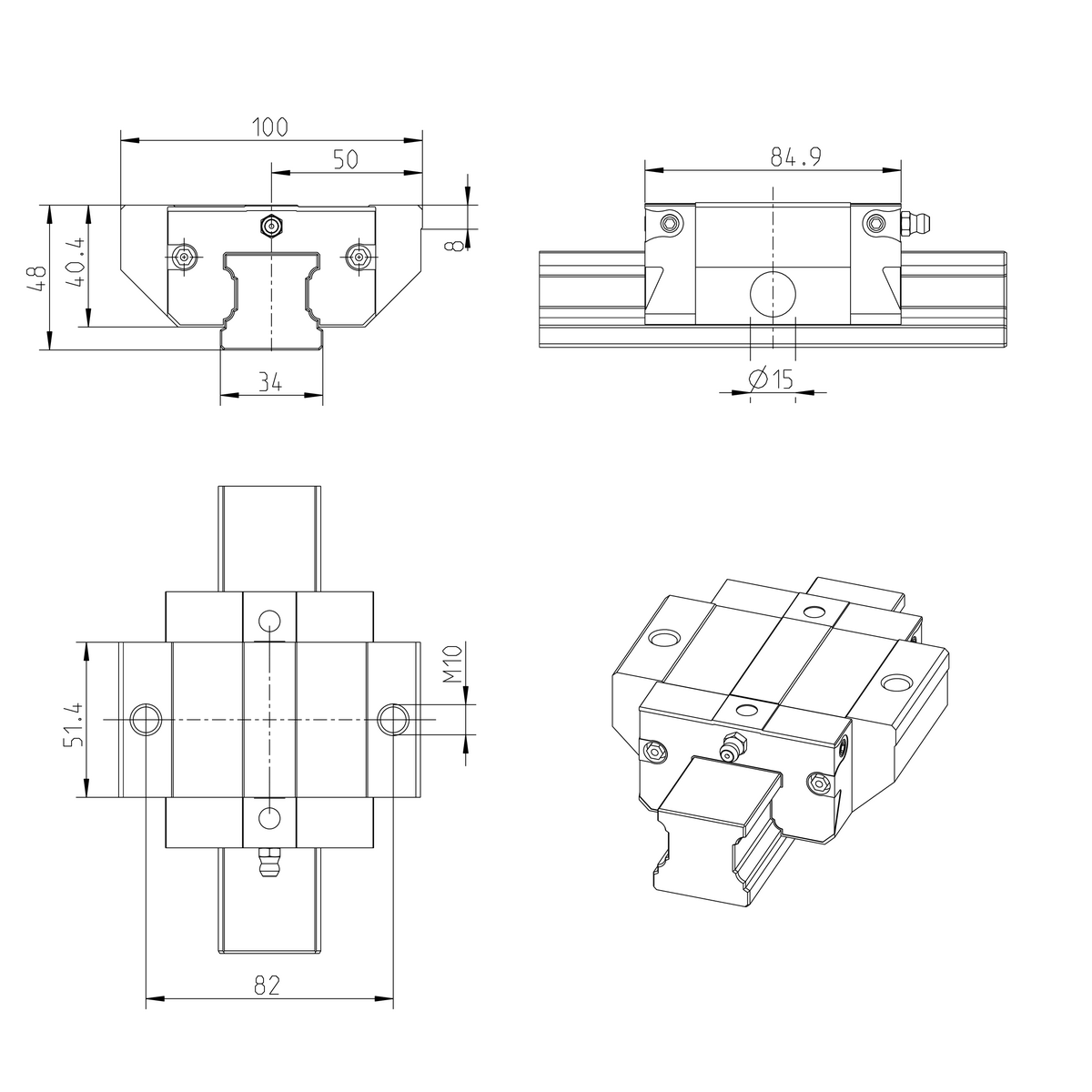

Overall length of the runner block = 84.9 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For restricted space in the longitudinal directionSignificantly reduced frictional oscillations and low friction force level, particularly under external loadAttachments on the ball runner block can be mounted from above and belowMaximum precisionPatented entry zone increases the travel accuracy up to a factor of sixLong-term lubrication is possible over several yearsLube fittings with metal threads on all sidesEnd-face fastening thread for all attachmentsIntegrated all-round sealingHigh torque load capacityDifferent preload classesHigh rigidity in all load directions – permits applications with just one runner block per railThe same high load ratings in all four main directions of loadingMaximum system rigidity due to preloaded O-arrangementOptional integrated, inductive and wear-free measuring systemExcellent dynamic characteristicsCan be used on all SNS\/SNO ball guide rails

Technical Specs
