Направляющая REXROTH R205C79420
Наличие и срок поставки подтверждаем по артикулу после запроса.
Позвонить и уточнить у менеджераОписание
Compact Line ball runner block, SNS, size 30, steel CS, accuracy standard, without preload (clearance)
Product Description
The Compact Line ball runner block is precise and characterized by the following product features:
Size 30
Format SNS - slimline, normal, standard height
Runner block body made of unalloyed steel CS
Preload class C0: without preload (clearance)
Accuracy class N: Standard
Without ball chain
With initial lubrication and preservation
Runner block body in standard version
Overall length of the runner block = 97.7 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Technical Specs
Характеристики
| Характеристики изделия | |
| Version | Ball rail system |
| Nominal size [mm] | 30 |
| Format | SNS - slimline, normal, standard height |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | N - Normal |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Width of runner block [mm] | 60 |
| Length of runner block [mm] | 97.7 |
| Height of runner block [mm] | 35.35 |
| Height runner block with guide rail [mm] | 42 |
| Lubrication | With initial lubrication and preservation |
| Maximum acceleration rate amax [m/s²] | 250 |
| Note: Max. acceleration amax | If Fcomb◡> 2.8 • Fpr : amax = 50 m/s2 |
| Maximum permissible linear speed vmax [m/s] | 3 |
| Permissible ambient temperature (min. ... max.) | -10 °C ... +80 °C |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Friction coefficient µ without seal friction |
| Масса (кг) | 0.85 |
| Dynamic load capacity C50 [N] | 39300 |
| Note: dynamic load capacity C50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
| Dynamic load capacity C100 [N] | 31200 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 42200 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 590 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 470 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 640 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 450 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacity and load moments based on a travel of 50,000 m. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 360 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 490 |

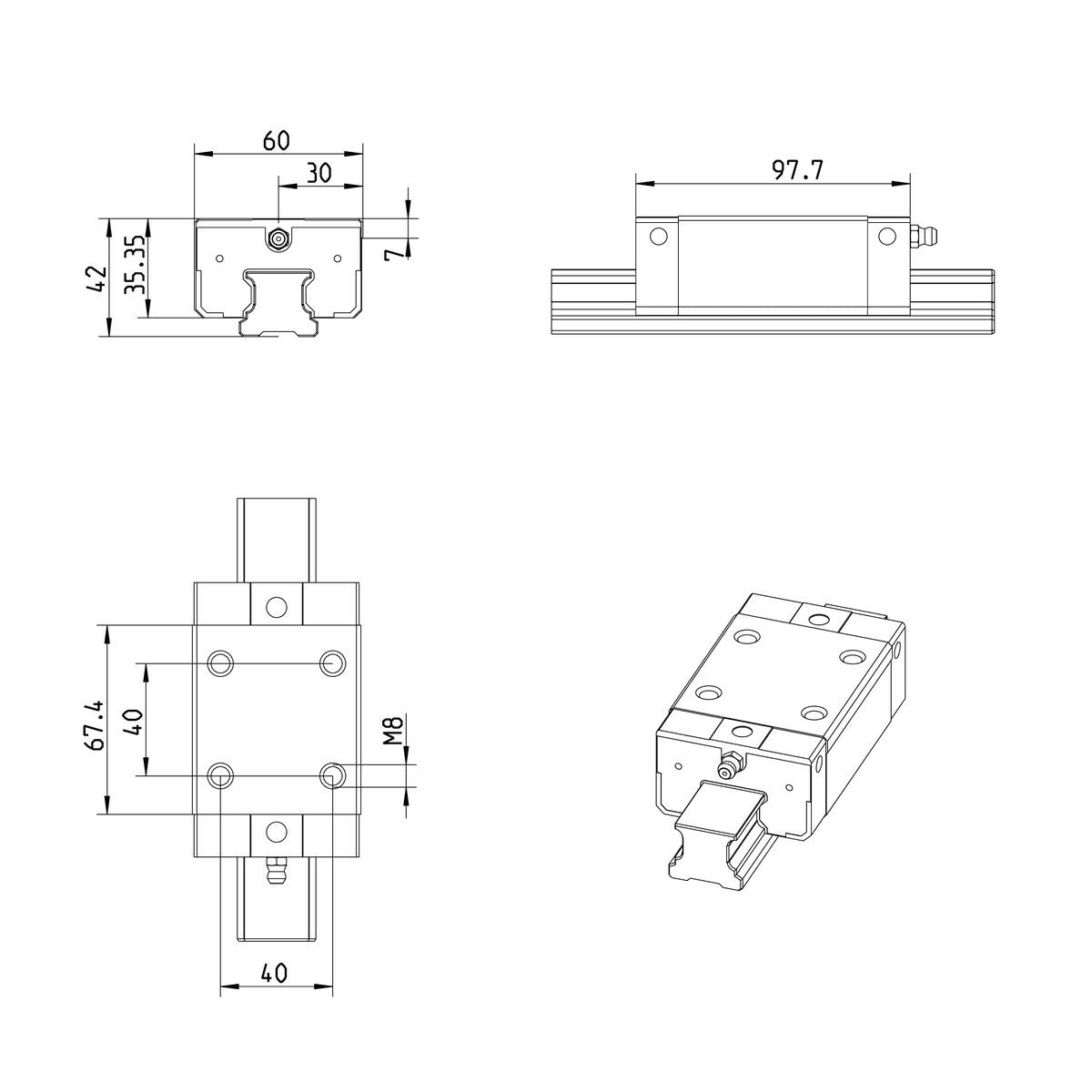

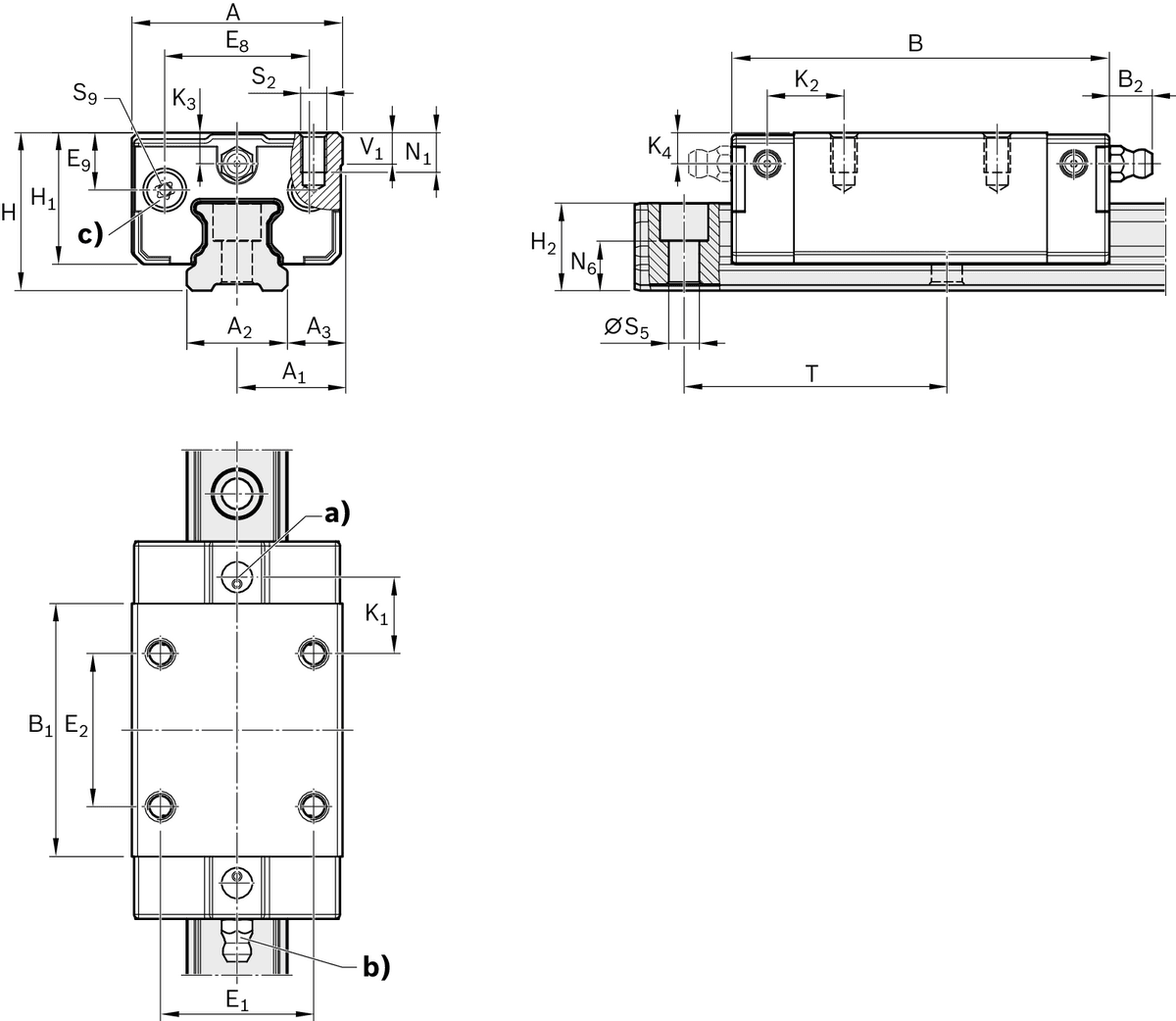

| Pitch T guide rail [mm] | 80 |
| Dimension A (profiled rail systems) [mm] | 60 |
| Dimension A1 (profiled rail systems) [mm] | 30 |
| Dimension A2 (profiled rail systems) [mm] | 28 |
| Dimension A3 (profiled rail systems) [mm] | 16 |
| Dimension B (profiled rail systems) [mm] | 97.7 |
| Dimension B tolerance (profiled rail systems) [mm] | +0.5 |
| Dimension B1 [mm] | 67.4 |
| Dimension E1 [mm] | 40 |
| Dimension E2 [mm] | 40 |
| Dimension E8 (profiled rail systems) [mm] | 42 |
| Dimension E9 (profiled rail systems) [mm] | 14.25 |
| Dimension H [mm] | 42 |
| Dimension H1 (profiled rail systems) [mm] | 35.35 |
| Dimension H2 (profiled rail systems) [mm] | 23 |
| Dimension K1 (profiled rail systems) [mm] | 20 |
| Dimension K2 (profiled rail systems) [mm] | 20.7 |
| Dimension K3 (profiled rail systems) [mm] | 7.25 |
| Dimension K4 (profiled rail systems) [mm] | 7.25 |
| Dimension N3 (profiled rail systems) [mm] | 12 |
| Dimension N6 (profiled rail systems) [mm] | 12 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension S2 (profiled rail systems) | M8 |
| Dimension S5 (profiled rail system) [mm] | 9 |
| Dimension S9 | M3x6.5 mm |
| Dimension S9 thread diameter (profiled rail systems) | M3 |
| Dimension S9 lead [mm] | 6.5 |
| Dimension T [mm] | 80 |
| Dimension T1 min [mm] | 16 |
| Dimension V1 [mm] | 7 |
| Height of guide rail H2 [mm] | 23 |
