Шариковая каретка NRFG из нержавеющей стали Resist NRII Bosch Rexroth KWD-035-FLS-C0-H-0 [R200239314]

NRFG ball runner block, FLS, size 35, Resist NR, accuracy high, preload-free

Product Description

The high-precision ball runner block made of Resist NR is suitable for use in the packing industry and in food industry sub-sectors. Additionally, it is characterized by the following product features:
Size 35
Format FLS: Width = flange, length = long, height = standard
Runner block body and all steel components made of corrosion-resistant steel as per DIN 10088
Preload class C0: Preload-free
Accuracy class H: High
Without ball chain
Without preservation
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version

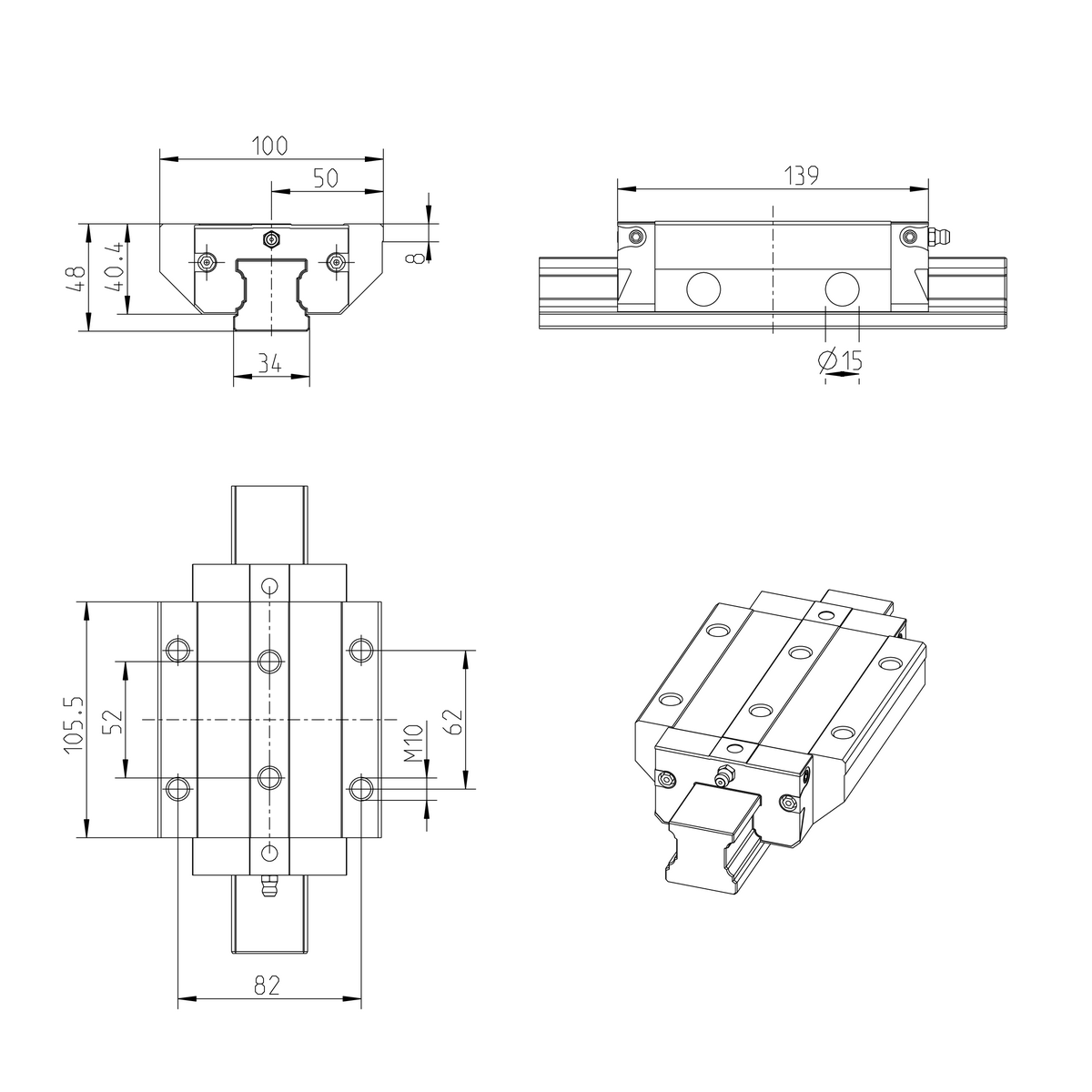

Overall length of the runner block = 139.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

All metal parts are made of corrosion resistant steelAll plastic parts are made from certified materialsExcellent dynamic characteristicsThe same high load ratings in all four main directions of loadingCan be used on all SNS ball guide railsLong-term lubrication is possible over several yearsLube fittings with metal threads on all sidesImproved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the ball runner blockMaximum system rigidity due to preloaded O-arrangementEnd-face fastening thread for all attachmentsHigh rigidity in all load directions – permits applications with just one runner block per railIntegrated all-round sealingOptimized entry-zone geometry and high number of balls minimize variation in elastic deflectionSmooth, quiet running thanks to optimally designed ball return and guidewayAttachments on the ball runner block can be mounted from above and below
